EPS Machine EPS insulation Panel Machine for making EPS foam block

Construction & Decoration

FOB Price:US$ 10,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T Wesstern Union

Keywords:eps block machine eps foam machine foam machine block foam machine

Add to Favorites

Product Category: Construction & Decoration > Trademark:
Product Package: Specifications:
Place of Origin: Port: SHANGHAI

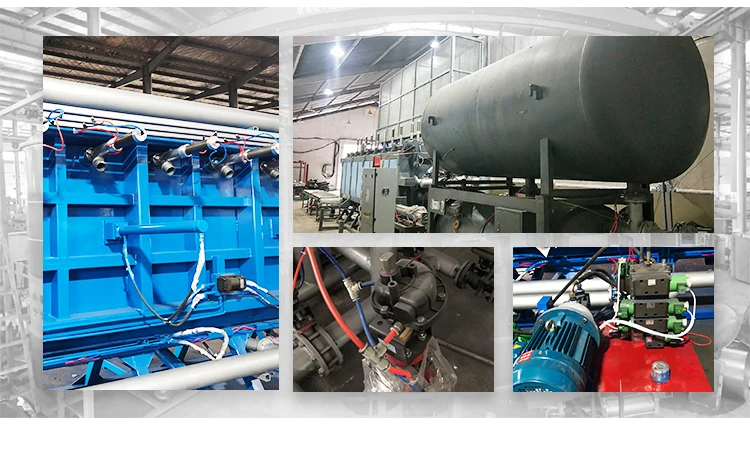

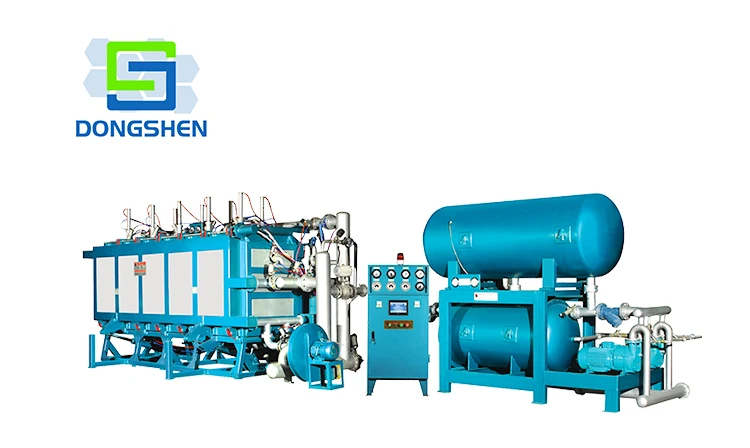

SPB2000V-SPB6000V  Vacuum Supported Block Molding Machine

Main Features:

1. Strong Structure:

a. Machine is made of high-strength square tubes and thick steel plates.

b. Machines all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature.

c. After heat treatment, all panels are processed by sand blasting treatment to remove rust, then first painting and final painting is done to keep machine anti-corrosion.

2. Steam system:

a. Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system.

b. Steaming is controlled by Timer and three German electrical gauge switches, with a safty valve to save from gauge malfunction situation.

3. Control system: Machine with PLC and touch screen for easy operation.



Item

Unit

PB2000V

PB3000V

PB4000V

PB6000V

Mould Cavity Size

mm

2040*1240*1030

3060*1240*1030

4080*1240*1030

6100*1240*1030

Block Size

mm

2000*1200*1000

3000*1200*1000

4000*1200*1000

6000*1200*1000

Steam

Consumption

Kg/cycle

25~45

45~65

60~85

95~120

Compressed Air

Consumption

m3/cycle

1.5~2

1.5~2.5

1.8~2.5

2~3

Vacuum Cooling Water

Consumption

m3/cycle

0.4

0.6

0.8

1

Capacity @ 15kg/m3

Min/cycle

4

5

6

6

Connect Load/Power

Kw

19.75

23.75

24.5

32.25

Overall Dimension

(L*H*W)

mm

5700*4000*2800

7200*4500*3000

11000*4500*3000

12600*4500*3100

Weight

Kg

5000

6500

10000

14000

More Products

Contact Name: Mrs Sue Wang Contact Email: wa****e@versatile-eps.com
Contact Job Title: Sales Manager Contact Mob: 139***663
Contact Tel: Contact Fax:
Address: Room 1003, Building 4, Wanda Plaza, Huishan District, Wuxi Website:
Wuxi Wealth Engineering Consultancy Co.,Ltd is a company specially dealing with EPS machines, molds and spare parts. Having strong technical team, we help clients to design their new factory and supply whole turn-key project to them, also we help old EPS factories to improve their production by reducing energy consumption and increasing production capacity. Apart from that, we offer the service of designing special machines as per clients request. Our production factory has over twenty years experience in manufacturing EPS machines, professional and qualified. We focus on R&D and care about every detail of machine fabrication. All our machine frames are welded by qualified welders, fully processed by precision CNC machines, through heat treatment, rust treatment, base paint then outer paint. Most accessories used in our machines are imported or famous branded parts with good quality. We do strict checking and testing of every machine before delivery to ensure good quality and good performance. We have over twenty years experienced engineers for start-up and commissioning of equipment, giving systematic training to workers in the client factory so that they can work the plant independently. Advanced technology, good quality and reasonable price is the strength of our equipment; rich technical knowledge, timely response and easy communication is the stength of our team. Till now, our machines have been exported to over fifty countries all over the world, enjoying good reputation in the market. We look forward to your cooperation!
