Guang Xi Kingvitor Electromechanical Equipment CO., Ltd

Business Type:Distributor

Main Products: HYDRAULIC EXCAVATORWHEEL LOADERBULLDOZERROLLERMOTOR GRADERFORKLIFT TRUCKTRUCK CRANEDiesel generator setSKID STEER LOADERBACKHOE LOADER

view on mobile

WHEEL LOADER

Manufacturing & Processing Machinery Engineering & Construction Machinery

FOB Price:US$ 43,500.00 / Set(s)

MOQ:1 Set(s)

Payment Method : T/T

Keywords:LOADER WHEEL LOADER LIUGONG ZL50CN

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Engineering & Construction Machinery Trademark: LIUGONG
Product Package: No packaging Specifications: NEW
Place of Origin: CHINA Port: SHANG HAI/SHEN ZHEN

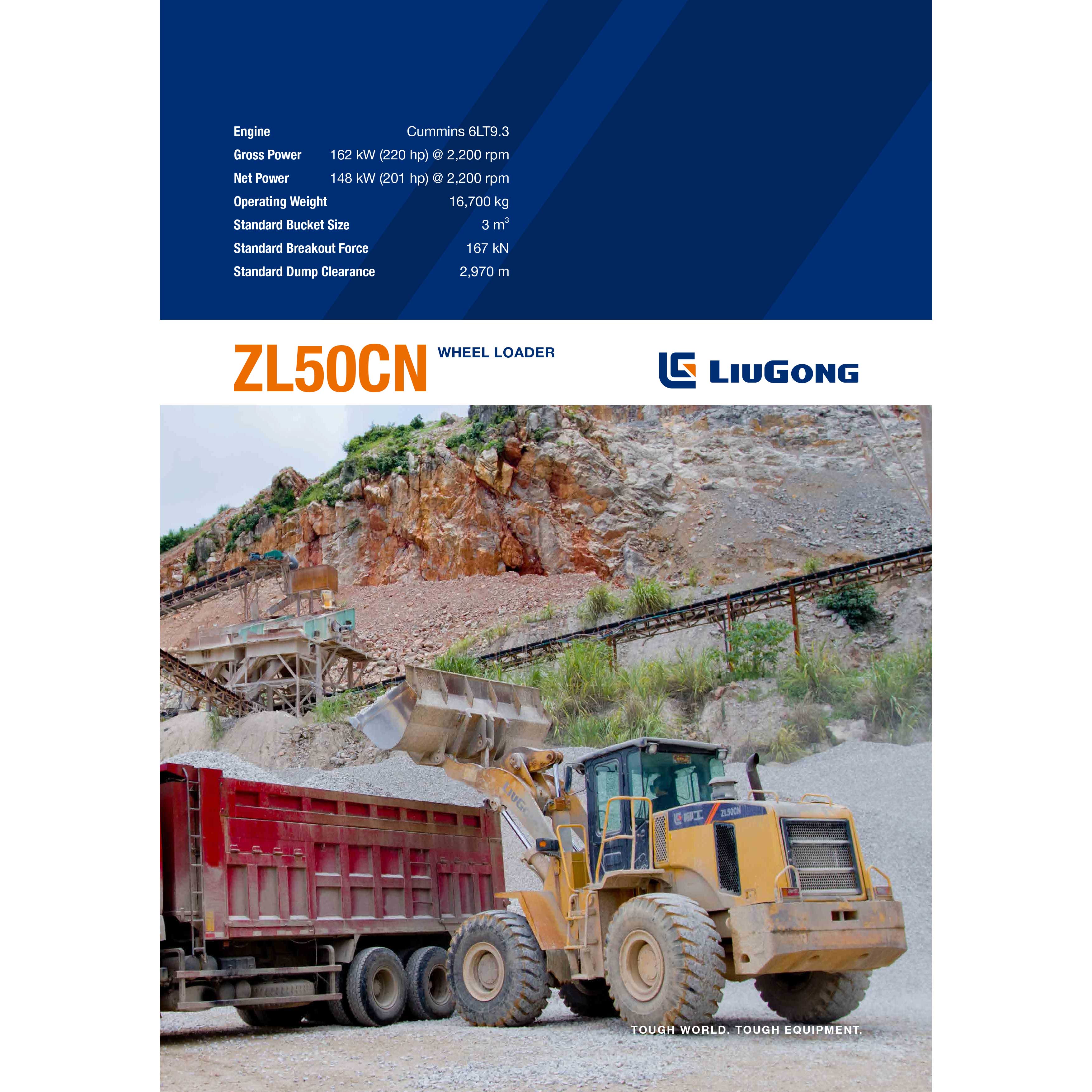

Detailed product parameters
First Page

Engine
6LT9.3
Gross PowerKW162kW(220hp)@2200rpm
Net PowerKW148kW(201hp)@2200rpm
Operating Weightkg16700
Standard Bucket Sizem33
Standard Breakout ForceKN167
Standard Dump Clearancemm2970
Second Page

Engine

Emission
国II
    Tier 2/Stage II
Maker
康明斯
    Cummins
Gross PowerKW162kW(220hp)@2200rpm
Net PowerKW148kW(201hp)@2200rpm
Peak TorqueN.M890
DisplacementL9.3
Number of Cylinders
6
Aspiration
涡轮增压
    Turbocharged
Transmission

Transmission Type
行星式动力换挡

Planetary typepower shift
Torque Converter
双级,四元件

Double stagefour elements
Maximum Travel Speed,fwdkm/h37
Maximum Travel speed,revkm/h14
Number of Speeds,fwd
2
Number of Speeds,rev
1
AXLES

Differential Front Type
常规的

Conventional
Differential Rear Type
常规的

Conventional
Axle Oscillation°±11
Steering

Steering Configuration°铰接式
    Articulated
Steering Relief PressureMpa12
Brakes

Service Brake Type
钳盘干式制动

Caliper disc brake
Service Brake Actuation
气顶油

Air over hydraulic
Parking Brake Type
手动气控式

Manual pneumatic control
Parking Brake Actuation
气压
    Air
Hydraulic System

Main Pump Type
齿轮泵
    Gear
Main Relief PressureMpa17
Raise Times6.5
Dump Times1.5
Float Down Times3.5
Fastest Total Cycle Times11.5
Loader Arm Performance

Tipping Load - StraightKg13414
Tipping Load - Full TurnKg11000
Bucket Breakout ForceKN167
Maximum Dump Angle at Full Height°45
Dump Clearance at Full Height Dischargemm2970
Dump Reach at Full Height Dischargemm1200
Maximum Hinge Pin Heightmm4020
Maximum Digging Depth, Bucket Levelmm60
Bucket Rollback at Ground Level°42
Bucket Rollback at Carry°46
Bucket Rollback at Maximum Height°59
Bucket Performance

Reference Bucketm33
Dimensions

Length with bucket Downmm8030
Width Over Tiresmm2750
Wheelbasemm3427
Wheel Treadmm2150
Ground Clearancemm485
Turn Angle,Either Side°35
Rear Angle of Departure°30
Turning Radius, outside of Tiremm6647
Turning Radius, Center of Tiremm6347
Turning Radius, Bucket Carrymm7598
Tires

Tire Size
23.5-25
Operating Weights

Operating Weightkg16700
Service Capacities

Fuel TankL300
Engine OilL18
Cooling SystemL50
Hydraulic ReservoirL300
Transmission and Torque ConverterL45
Axle, FrontL32
Axle, RearL32
