Outdoor Greno Environmental Type Prefabricated Substation Kiosk

Electrical & Power Energy

FOB Price:US$ 3,000.00 / Piece(s)

MOQ:6 Piece(s)

Payment Method : L/C T/T Wesstern Union Money Gram

Keywords:Outdoor Grenontal   Kiosk  Prefabricated Substation  Substation Prefabricated KIOSK

Add to Favorites

Product Category: Electrical & Power Energy > Trademark: HONGBO
Product Package: PALLET Specifications: OEM
Place of Origin: CHINA Port: QINGDAO

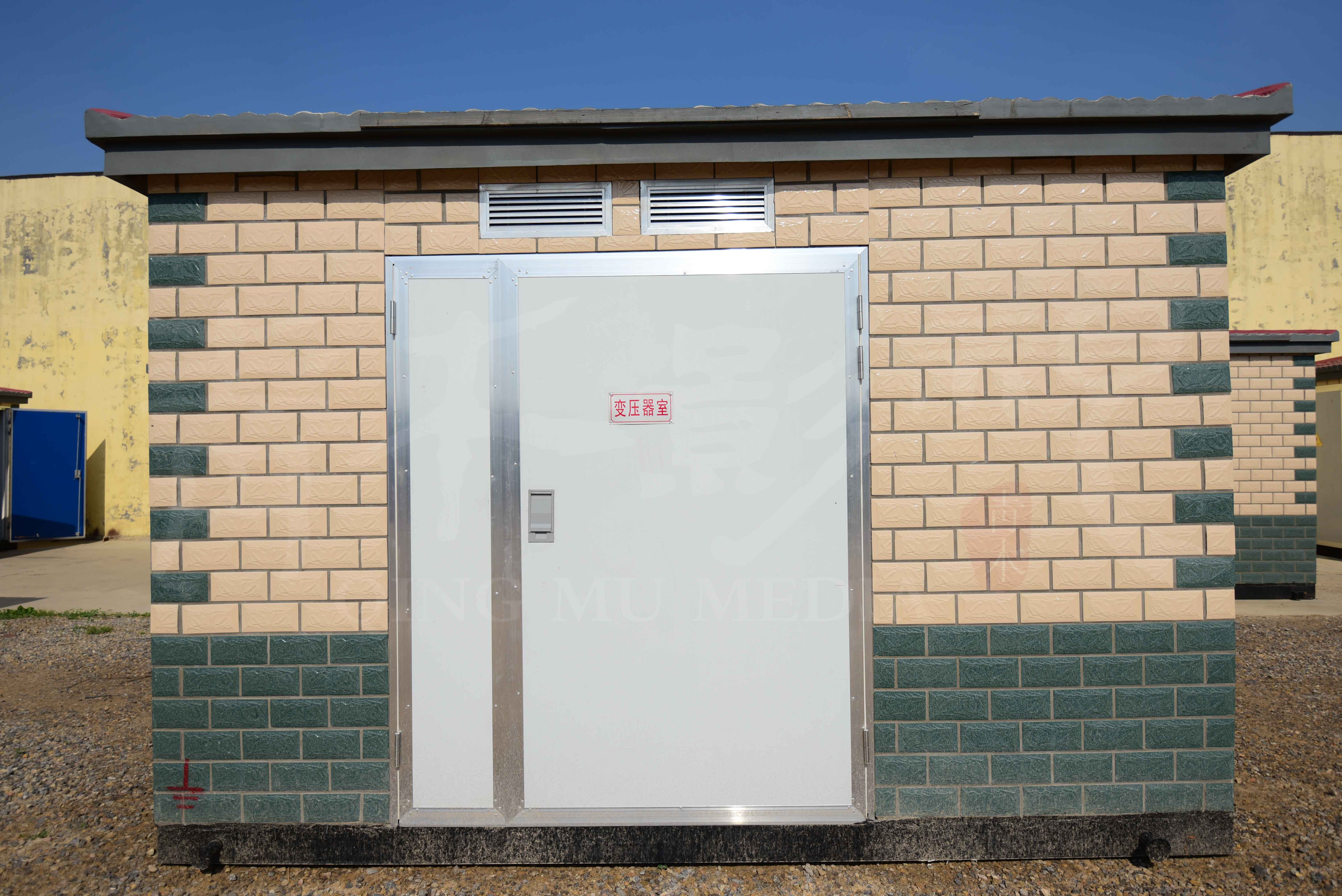

Outdoor Prefabricated Substation kiosk, mainly includes:

  1. High voltage compartment

We usually use our compact RMU to fit in H.V.compartment .

  1. Transformer compartment

Both immersed transformer and dry type transformer are suitable for the transformer compartment .
3.Low voltage compartment
Low voltage compartment could be produced according to customer's requirement.
 Depends on customers' need, there are various enclosure type for choice such as:
cement tiles, stainless steel, Wood,black steel etc.

Compact Substations

Manufacturer -GRENO (XIAMEN) SWITCHGEAR CO., LTD.
Type-GBC05
Overall protection class for complete substation- IP33D
Material of enclosure- Colour-Steel Complex Sheet
Overall dimensions (W x L x H)

· for S/S with 1x50 kVA transformermm/mm/mm2400×4350×2530
· for S/S with 1x100 kVA transformermm/mm/mm2400×4350×2530
· for S/S with 1x160 kVA transformer mm/mm/mm2400×4350×2530
· for S/S with 1x250 kVA transformermm/mm/mm2400×4350×2530
HV side

20 kV Switchgear equipment 20 kV

Manufacturer -GRENO (XIAMEN) SWITCHGEAR CO., LTD.
Type -GRM serie Ring Main Unit
Rated voltagekV20
Maximum operating voltage kV24
Rated current A630
Rated short time current kA20
Rated power frequency withstand voltage kV50
Rated impulse withstand voltage (peak value)kVpeak125
Insulating medium
SF6
Dimensions of switchgearmm/mm/mm1246×751×1336
