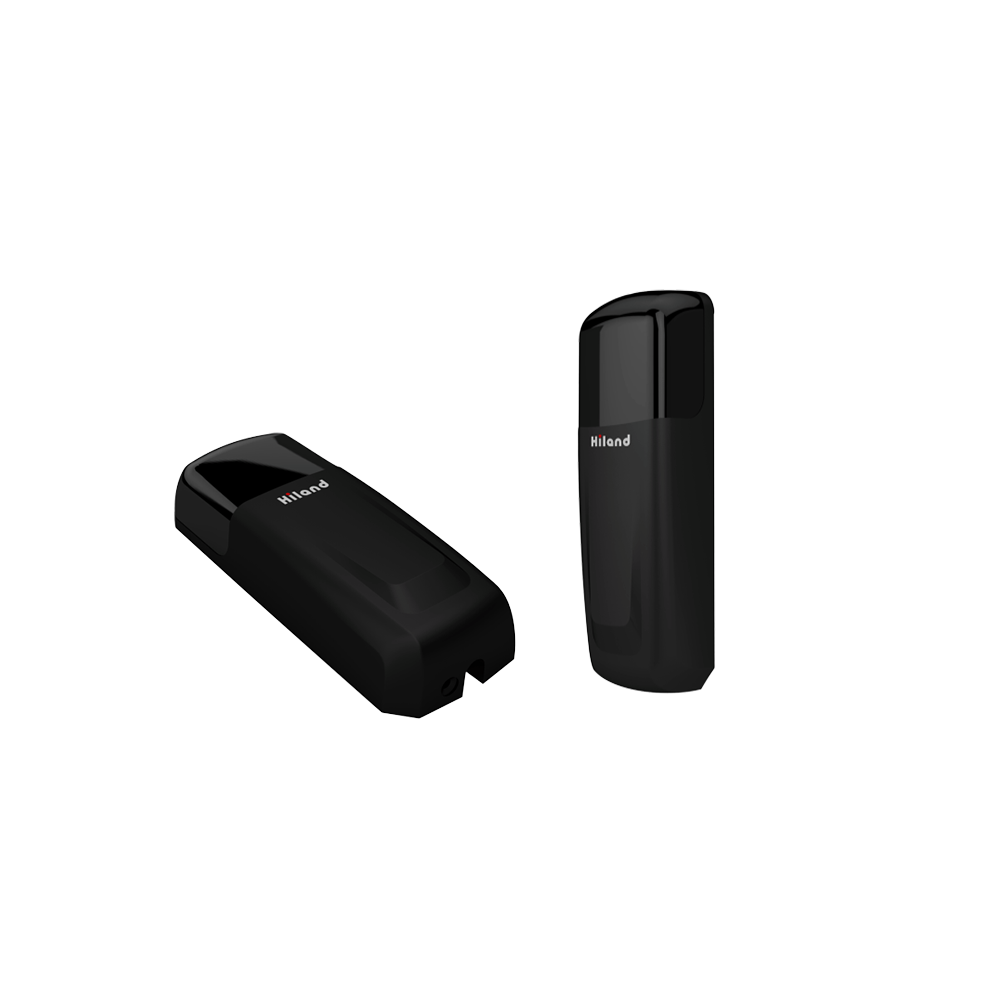

Door battery type photocell with 2 years battery life P5112

Construction & Decoration Door,Window & Accessories

FOB Price:US$ 11.85 / Piece(s)

MOQ:200 Piece(s)

Payment Method : L/C T/T Wesstern Union Paypal

Keywords:Photocell Gate Door Sensor Sensor Switch Infrared Sensor Photoelectric Sensor Microwave Sensor Automatic Door Sensor Internal Rotation Systems

Inquire


Add to Favorites

Product Category: Construction & Decoration > Door,Window & Accessories Trademark: hiland
Product Package: Each in Individual White Box Specifications: 14 x 11.5 x 3.5 cm
Place of Origin: china Port: shanghai

I.  Safety Instruction

1. For security, please read the user manual carefully before initial operation;
2. This photocell is without any fuse, so Please make sure the power is off before installation;
3. Only used this system that do not cause any danger life or property during the running failure or its security eliminated;
4. Please guarantee the products used in effective working range.

II. Technical Specification

1.Working voltage: Receiver: 12~24VAC/DC Emitter:  2*1.5V, LR6 AA battery
2.Working current: Receiver(24VDC): ≤40mA  Emitter(2*1.5V, LR6 AA battery): ≤0.2mA
3.Photocell wavelength: 940nm
4.Angle of opposite emission: ≤±5o
5.Receiver range: ≥12m
6.Working temperature: -20o～+60℃
7.Relay contact loading capacity: 1A/30VDC
8.Waterproof grade: IP45
9.Size: 127*50*35mm
10.Weight：193g


Contact Name: Mr. Brokener Xie Contact Email: hi***@hiland.cc
Contact Job Title: Administrator Contact Mob: 138***794
Contact Tel: 13856392794 Contact Fax:
Address: 安吉县, 递铺街道，拥军路128号 Website: https://www.hiland.cc/

Hiland is a professional designer and qualified manufacturer for Gate automatic control systems. Our product : sliding gate opener, sliding gate control board, garage door opener,roller shutter control board,tubular motor receiver, universal receiver,transmitter, flash lamp,photocell and wireless keypad. Certificate: IS09001: 2008,CE, CTICK, EN12978, RoHS, FCC, SASO, etc.
