B1 PE ACP production line

Manufacturing & Processing Machinery Plastic,Rubber Machinery & Moulds

FOB Price:US$ 350,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:acp machine acp line acp plant Aluminum Composite Panels fireproof acp machine acp making machine acp production line

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Plastic,Rubber Machinery & Moulds Trademark:
Product Package: Specifications:
Place of Origin: Port: Shanghai

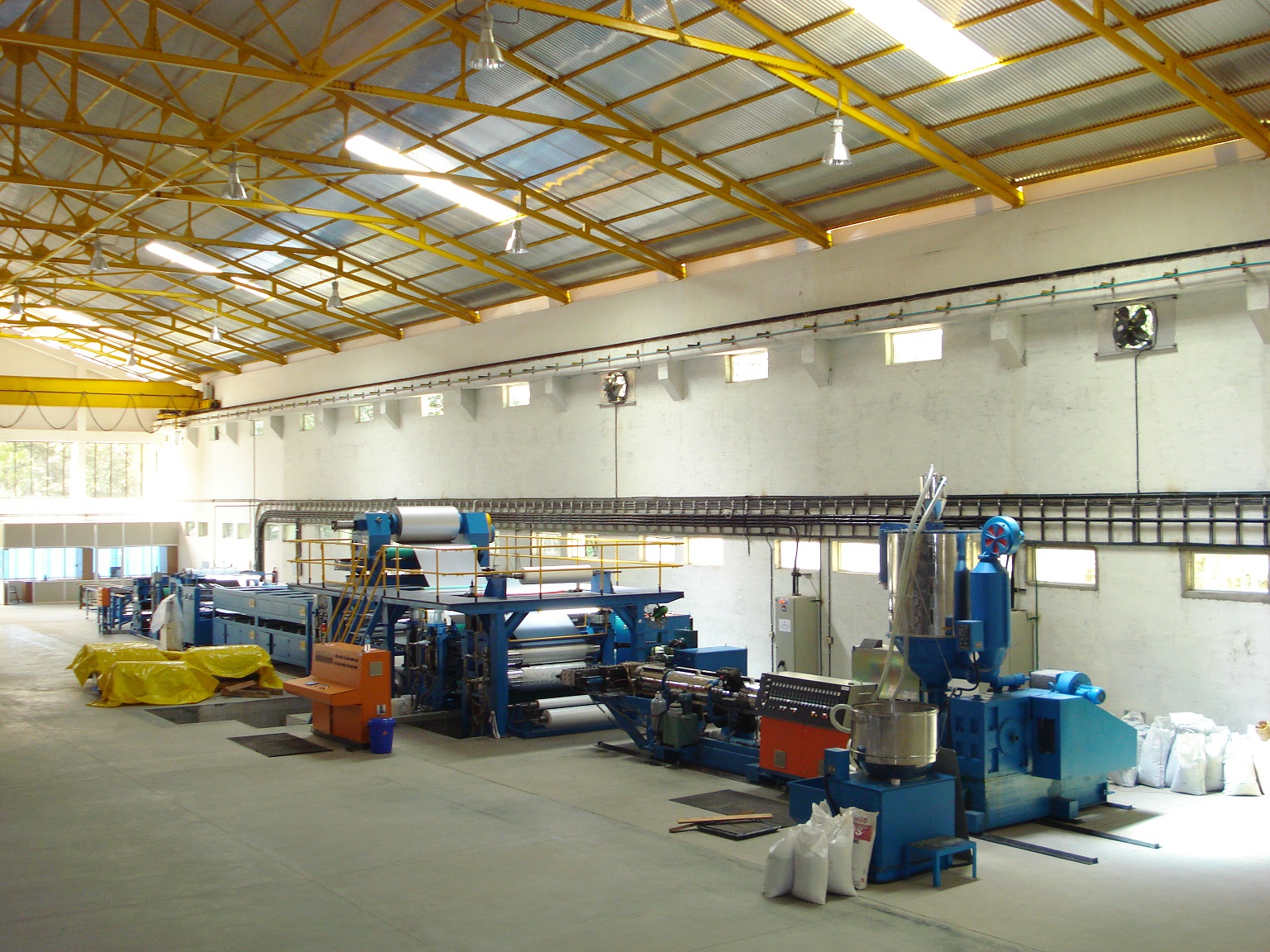

                 Aluminium Composite Panel Production Line

BASIC PARAMETER
Model
Single Extruder
Type
1600 (M-ACP3)





        Raw Materials
Core material
New PE,LDPE,HDPE,recycle core material,FRB1 material
Aluminium coil thickness
0.21mm-0.5mm
Aluminium coil width
800mm-1600mm
Weight of aluminium coil
Max. 5 tons
Macromolecule film width
800mm-1630mm
Macromolecule film thickness
0.03mm-0.08mm
Protective film width
800mm-1630mm
Protective film thickness
0.06mm-0.08mm
                                                    Finished Panel
Thickness
2mm-6mm
Width
800mm-1600mm


Line Speed
For FRB1 ACP
(4mm/0.5mm ACP)
Speed is 3-4.2m/min, Steady speed is 3.8m/min
Line speed depends on core material's quality and thickness of core
For PE ACP
(4mm/0.5mm ACP )
Speed is 3-4.4m/min
Line speed depends on core material's quality and thickness of core





Main Features

This machine use double screw extruder which is our new design, there are two parallel screw inside the extruder,the capacity can reach 1000kg/H and it improve the production speed. This machine is very good for making B1 panel, it can guarantee the production speed and panel quality.The power of main motor is only 132kw and can save much power for the customer,it can save production cost and improve the production capacity, it's the best choice for making B1 fire resistant panel.

Configuration

Our Service



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



After-Sales Service

* install the machine, training how to use the  machine.

* Engineers available to service machinery overseas.


Packing & Delivery

Packaging

About 6 *40''HC container for one
ACP production line.



Packaging Delivery

Packing:
The normal package is wooden box.
And the wooden box will be fumigated.

Delivery:
Within 4 months after receiving advance




Our Company


Zhangjiagang Xiecheng Mechnical Equipment Co.,Ltd

Zhangjiagang Xiecheng Mechnical Equipment Co.,Ltd was established in 2004,specialized in research, production and sales of complete set of aluminium composite panel production line and coating production line.

We are insist on developing , researching, innovation,quality is first and customer first to make the machine  and promote machine  upgrade step by step. Now we have serveral serials of ACP production line and Aluminium Coating line, our machine already exported to USA,Russia,Australia,Poland,Turkey,UAE, Iran,Thailand,Saudi Arabia,Brazil,Spain and so on.



Our Other Products




    ( ALMINE FRA2/B1 ACP)                ( ALMINE FRA2 core )               ( CJM Aluminium Coating Line )
