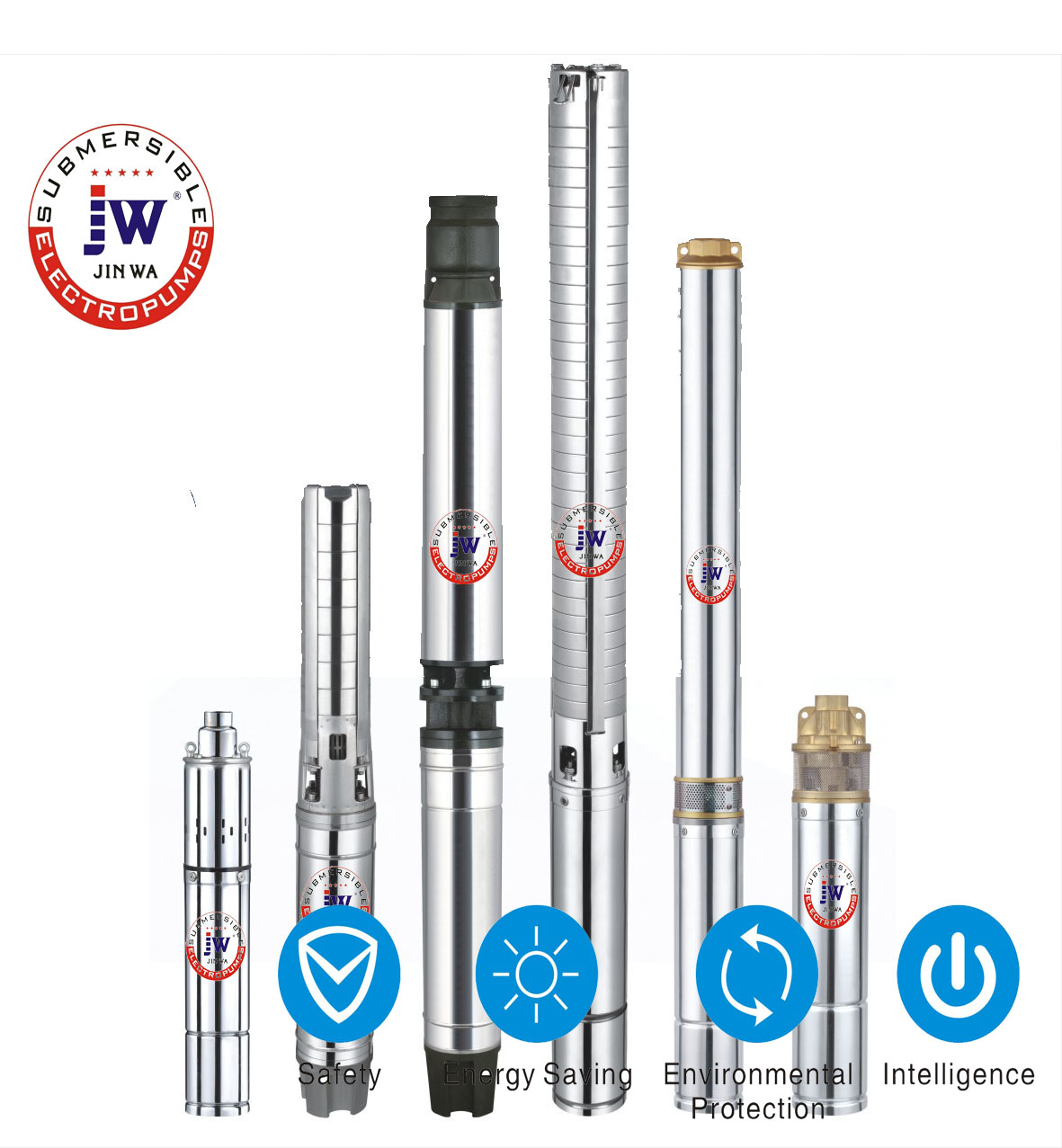

4 Inch 0.5-3.0HP Oil Field Submersible Deep Well Pump
Agricultural Agricultural Machinery
MOQ:50 Piece(s)
Payment Method : L/C T/T D/P Money Gram
Keywords:water pump Deep well pump 4 inch Submersible PUMP
| Product Category: | Agricultural > Agricultural Machinery | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | 宁波 |
Pump's Applications:
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Pump's Operating conditions:
Maximum fluid temperature up to +35 C
Maximum sand content: 0.25%
Maximum immersion depth: 80m.
Minimum well diameter: 4"
Motor:
Rewind able motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with special start-up control box
Pump's Internal diameter of outlet:
1", 1.25", 1.5" 2"
Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Pump's Material:
1, Pump external casing: AISI304ss
2, Delivery casing: Cast-Cu ASTM280 or AISI304ss
3, Suction lantern: Cast-Cu ASTM280 or AISI304ss
4, Diffuser: Plastic. PC
5, Impeller: Plastic. POM
6, Shaft: AISI316ss or AISI304ss
7, Shaft coupling: AISI316ss or AISI304ss
8, Wear ring: AISI304ss
9, Motor external casing: AISI304ss
10, Top cover: Cast-Cu ASTM280 or Cast iron G20 UNI5007
11, Bottom support: AISI304ss
12, Mechanical seal: Special seal for deep well (carbon -SIC/TC)
13, Shaft: AISI304ss-C1045
14, Bearing: NSK (Japan)
15, Seal lubricant oil: Oil for food machinery and pharmaceutical use
