Loud Speaker Cable Red and Black

Auto,Parts & Accessories Car Electronics

FOB Price:US$ 2.00 / Roll(s)

MOQ:100 Roll(s)

Payment Method : L/C T/T Wesstern Union Paypal

Keywords:Loud Speaker Cable CCA Loud Speaker Cable Speaker Wire Red and Black Speaker Cable Red and Black Loud Speaker Wire

Inquire


Add to Favorites

Product Category: Auto,Parts & Accessories > Car Electronics Trademark: OEM, doublewin
Product Package: Plastic Sheet Twining, Plastic Spool, Paper Spool Specifications:
Place of Origin: China Port: shanghai

Details of Loud Speaker Cable Red and Black

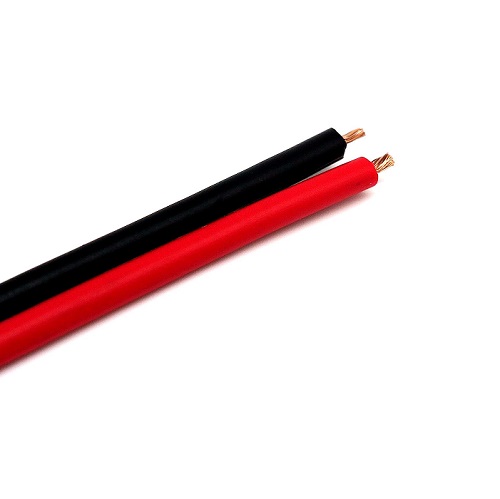

The Loud Speaker Cable Red and Black
The Loud Speaker Cable Red and Black is used to connect the amplifier to the Loud Speaker. This type of cable has no shielding layer. For this kind of wire, the key is to reduce its resistance. Because the output impedance of modern power amplifier is very low, the requirements for the Loud Speaker cable are also increased. Large or multiple stranded wire. The wire is from pure copper to silver wire. The Loud Speaker cable of the more expensive price is the special line of oxygen-free copper Loud Speaker. Its main feature is good electrical conductivity and low resistivity. It uses it to increase the sound when playing back the sound.

What is Loud cable?
Loud Speaker cable is the wire used for the electrical connections between Loud Speakers and amplifier sources. Resistance is by far the most important. Low-resistance wire allows more of the source’s power through to the Loud Speaker coil, meaning more power and more sound.

Generally speaking, resistance starts to have an effect on the performance of a Loud Speaker when resistance is greater than 5% of the Loud Speaker’s impedance. Resistance is affected by two key aspects: wire length and the cross sectional area of the wire. The shorter the wire is, the less resistance it will have.

The cross sectional area of the wire is referring to the thickness, or gauge, of the wire. The thicker a wire or the lower the gauge, the less resistance. It is therefore a combination between Loud Speaker impedance, length and gauge that affects the resistance.

Thicker wires are better: It’s true that for long runs, thicker wires are better at reducing the effects of resistance. But for most set ups (those with Loud Speakers within 100 ft of the amplifier), 16-gauge lamp cord is fine. For Loud Speakers 100 to 200 ft. from the amp, experts suggest use 14 gauge. And from 200 to 400 ft., they recommend 12-gauge wires.

The Conducter
Copper is the most widely used material for Loud Speaker cable due to its low cost and low resistance. However, copper does oxidise so it needs to be well covered and insulated.

What’s kind of Loud cables we produce
Core: 2Cores or 4 Cores
AWG: 24~10AWG
Conducter: OFC/TCU/CCA/TCCA

manufacturer: jiaxing doublewin cable co.,ltd


Contact Name: Mr. Walter Chou Contact Email: ma****g@doublewincable.com
Contact Job Title: Marketing Manager Contact Mob: 198***729
Contact Tel: +86-198 8438 8729 Contact Fax: +86-573-86161637
Address: No,2288 Junyuan Road Haiyan Zhejiang China Website: https://chinacablewires.com/

Jiaxing Double Win Cable Co.,Ltd is the leading manufacturer and cables factory of Network Cables,Alarm Cables, Speaker Cables, Telephone Cables,Fire Alarm Cables,Power Cables,Microphone Cables, Battery Cables, Instrumentation Cables,Electro Control Cables in China. We have been actively developing new products and produce high quality products to the high standards of the industry for more than 10 years. In 1997, We established Haiyan Wuyuan Wires Factory,Which is engaged in the development and production of raw material for cables. In 2008, We invested a lot of money with our professional and technical technology to start producing cables. From the beginning of the speaker cables, to the present variety of low-voltage cables for house use and instrumentation,Established Jiaxing DoubleWin Cable Co., ltd which mainly produces R&D,sales and export business. Now, we have established extensive cooperation with the customers in Europe and South America. Good Quality let us success always,and it is rooted in our production and employee training. Now, 90% of our products are exported to Europe and South America,Our mill have passed ISO9001 certification, all products have passed CE and CPR certification, for all the products used in Europe are all subject to ROHS requirements. 100% of products sold are inspected by our inspection department before shipment. We have a complete set of production management experience, we can customize the cables according to customer requirements. We are here waiting for your inquires and questions and hope to establish a long-term relationship with you.
