Ethernet cable cat5e

Security, Fire & Safety CCTV Products

FOB Price:US$ 10.00 / Box(es)

MOQ:100 Box(es)

Payment Method : L/C T/T Wesstern Union Paypal

Keywords:ethernet cable cat5e network cable cat5e lan cable cat5e cat5e utp cat5e ftp

Inquire


Add to Favorites

Product Category: Security, Fire & Safety > CCTV Products Trademark: OEM, doublewin
Product Package: Pull-Out Box, Wooden Spool Specifications:
Place of Origin: china Port: shanghai

Details of Cat5e Cable

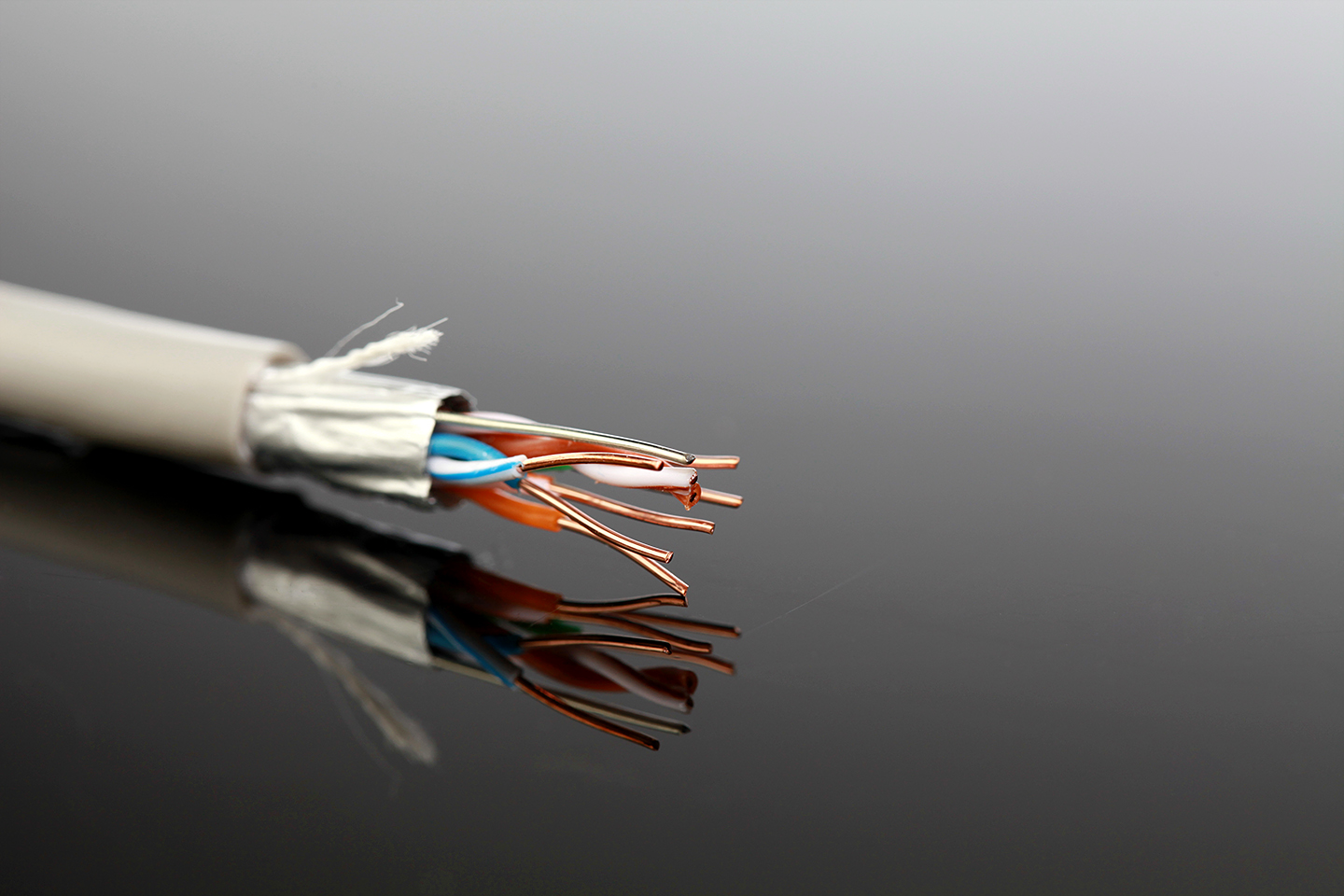

CAT5E  CABLE  UTP, FTP, SFTP

  1. NETWORK CABLES CAT5E are UTP-Unshielded Twisted Pair and FTP-shielded Twisted Pair.

  2. CABLES CAT5 refers to the five different quality levels defined by International Electrical Industry Association for twisted pair cables.

CAT5E NETWORK CABLE APPLICATION
APPLICATION: ETHERNET,10BASE-T,100BASE-TX,100 BASE-T,ATM, Multi-Media, TELEPHONE

UTP-Unshielded Twisted Pair Cable is composed of multiple pairs of twisted pairs and a plastic sheath.

Twisted pair in computer lan network can be divided into categories:
1. FTP is covered by a layer of metal material to reduce radiation and prevent informations from being intercepted.
At the same time, it has a higher data transmission rate, but the cost is higher and the installation is more complicated.
2. UTP has no metal shielding and is only wrapped with a layer of insulating rubber. The price is relatively cheap and the networking is flexible.

CAT5E NETWORK CABLES CONSTRUCTION

? CAT5E cables is a cable that appears after improving some of the performance of CAT5. Lots performance parameters, such as near-end crosstalk,attenuation crosstalk ratio, and return loss are all improved. but its transmission bandwidth is still 100MHz.
? CAT5E cables also uses 4 winding pairs and 1 tension wire.The color of the pair is exactly the same as CAT5,white orange, orange, white green, bule, white blue, green,white brown and brown.Bare copper wire diameter is 0.51mm(wire gauge is 24AWG), insulated wire diameter is 0.92mm, UTP cable diameter is 5mm.
? Although CAT5E cables can provide transmission bandwidths of up to 1000Mb/s, but it often require the support of expensive special equipment.
? Therefore, it is usually only suitable for 100M/S fast ethernet for connecting desktop switches to computers.If donot plan to upgrade your network to gigabit ethernet in the future, you can also use CAT5E lan cable in horizontal cabling.

CAT5E is more less cost than CAT6 and CAT6A cable, it is well for home using.

Pairs

4Pairs

Shielding

UTP, FTP, SFTP

Conductor

Solid Bare Copper 0.50mm

Insulation

HDPE 0.92MM, 1.00MM, 1.02MM

Insulation Color

A.Blue /White-Blue/ B.Orange / White-Orange

Rip Cord

Yes

Drain Wire

UTP=No, FTP=0.45mm TC, SFTP=0.45mm TC

Shield

UTP=No, FTP=Al Foil, SFTP=Al Foil +60% Braid

Sheath

PE, PVC, LSZH

Length

305Meter, 500Meter

Packing

Pull-Out Box, Wooden Spool


Contact Name: Mr. Walter Chou Contact Email: ma****g@doublewincable.com
Contact Job Title: Marketing Manager Contact Mob: 198***729
Contact Tel: +86-198 8438 8729 Contact Fax: +86-573-86161637
Address: No,2288 Junyuan Road Haiyan Zhejiang China Website: https://chinacablewires.com/

Jiaxing Double Win Cable Co.,Ltd is the leading manufacturer and cables factory of Network Cables,Alarm Cables, Speaker Cables, Telephone Cables,Fire Alarm Cables,Power Cables,Microphone Cables, Battery Cables, Instrumentation Cables,Electro Control Cables in China. We have been actively developing new products and produce high quality products to the high standards of the industry for more than 10 years. In 1997, We established Haiyan Wuyuan Wires Factory,Which is engaged in the development and production of raw material for cables. In 2008, We invested a lot of money with our professional and technical technology to start producing cables. From the beginning of the speaker cables, to the present variety of low-voltage cables for house use and instrumentation,Established Jiaxing DoubleWin Cable Co., ltd which mainly produces R&D,sales and export business. Now, we have established extensive cooperation with the customers in Europe and South America. Good Quality let us success always,and it is rooted in our production and employee training. Now, 90% of our products are exported to Europe and South America,Our mill have passed ISO9001 certification, all products have passed CE and CPR certification, for all the products used in Europe are all subject to ROHS requirements. 100% of products sold are inspected by our inspection department before shipment. We have a complete set of production management experience, we can customize the cables according to customer requirements. We are here waiting for your inquires and questions and hope to establish a long-term relationship with you.
