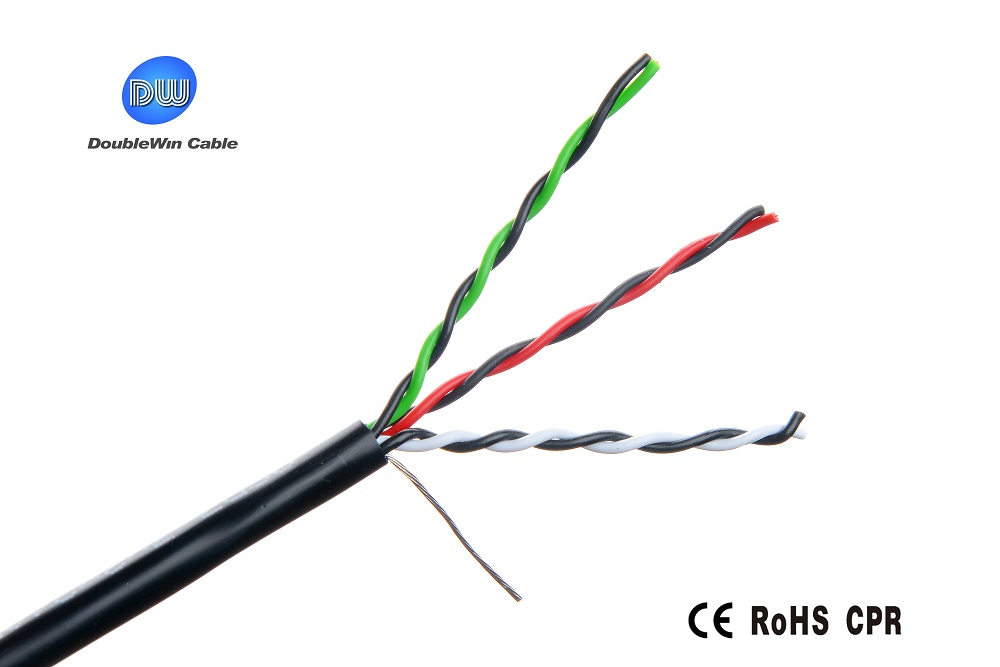

Telephone Cable

Security, Fire & Safety CCTV Products

FOB Price:US$ 1.00 / Meter(s)

MOQ:10000 Meter(s)

Payment Method : L/C T/T Wesstern Union Paypal

Keywords:telephone wire Communication Cables two pairs telephone cable

Add to Favorites

Product Category: Security, Fire & Safety > CCTV Products Trademark: OEM,DOUBLEWIN
Product Package: box Specifications:
Place of Origin: CHINA Port: SHANGHAI
Conductor

OFC, CCC, CCA, CCS

Conductor Size

0.37mm, 0.40mm, 0.50mm, 24AWG

Number of Cores

2Core, 4Core, 6Core, 8Core, 10 Core

Insulation

HDPE

Sheilding

Unsheilded, Polyester Tape, Al Foil

Jacket

PVC, LSZH, PE

Ripcord Yes/No

Yes with Nylon

Separator

Mylar Spirally Wrapped

Operating Temperature

-20℃ – +75℃


Details of Telephone Cable

Telephone Cable are an important invention that have the ability to connect people all over the world. They consist of numerous pairs of copper insulated wires having a diameter that ranges from 0.3 to 0.9 and are either twisted into two or four pairs. These pairs of wires are then connected to each phone jack in your house. There are many different cables that serve different purposes and vary in configuration, size and performance.

Our range of TEL cables, including those manufactured to British Telecom (BT approved) and European specifications, are suitable for interconnecting communication equipment and low signalling appliances.
Eland Cables supplies outdoor TEL. cables (CW1128 & CW1198) designed specifically to withstand environmental factors such as UV and moisture, as well as the full spectrum of weather conditions. We also supply lightweight indoor TEL. cables such as the CW1308 cable and J-YstY cable German specification cable widely used in European installations, and CW1423 cables for jumping BT telephone services terminated on IDC blocks.

Description of  Telephone cable


2×7/0.1mmI.D.:0.9MM PEO.D.: 2.3*3.8MM PVCFlat
4×7/0.1mmI.D.:0.9MM PEO.D. : 2.3*4.7MM PVCFlat
6×7/0.1mmI.D.:0.9MM PEO.D. :2.3*6.8MM PVCFlat
8×7/0.1mmI.D.:0.9MM PEO.D. :2.3*9.2MM PVCFlat
4×7/0.12mmI.D.:1.0MM PEO.D. : 3.8MM PVCRound
8×7/0.12mmI.D.:1.0MM PEO.D. : 4.3MM PVCRound
10×7/0.12mmI.D.:1.0MM PEO.D. : : 4.6MM PVCRound
12×7/0.12mmI.D.:1.0MM PEO.D. 5.2MM PVCRound
14×7/0.12mmI.D.:1.0MM PEO.D. :5.5MM PVCRound
16×7/0.12mmI.D.:1.0MM PEO.D. : 5.8MM PVCRound
18×7/0.12mmI.D.:1.0MM PEO.D. : 6.0MM PVCRound
20×7/0.12mmI.D.:1.0MM PEO.D. : 6.4MM PVCRound
4×7/0.12mmI.D.:1.0MM PEO.D. :63.8MM PVCRound
