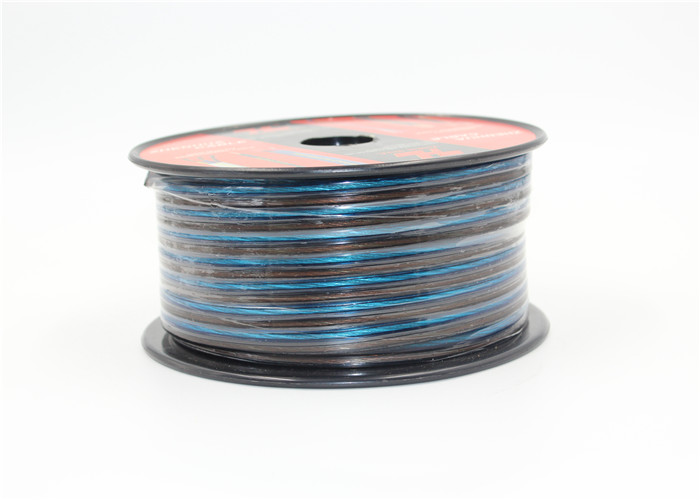

Twin Flat Transparent Electrical Wire Black And Blue Pvc Copper Wire 80m
Electrical & Power Energy Wires,Cables & Accessories
MOQ:10000 Meter(s)
Payment Method : T/T
Keywords:PVC CCA CU COPPER CABLE WIRES twin transparent cable speaker cable
| Product Category: | Electrical & Power Energy > Wires,Cables & Accessories | Trademark: | ZHENHUACABLE |
| Product Package: | CARTON, PALLENT ,SACK | Specifications: | |
| Place of Origin: | China | Port: | NingBuo ShangHai |
Used for connecting power amplifier and broadcasting systems.
Application:
Using to connect power amplifier and loudspeaker equipment, broadcast system to transmit audio frequency signal, which is magnified by power amplifier.
Characteristic:
It can be matched with sound equipment of over high frequency and over low frequency to reach a perfect sound effect, keeping stable for the leaving rhyme and strength of diapason and music. It’s fine and diversified in form.
Product Standard:
Subject to corporate standard
Instructions:
a) Multiple strands of copper line twisted as conductor
b) Transparent PVC insulation / Red and Black PVC Insulation / Black PVC Insulation)
c) Rated voltage: Uo/U is 300/300V
d) Keeping working temperature under 70°C for long-range operation
Specification Size and Technical Data:
| Square Size | Specifications | Square Size | Specifications |
| 0.35mm2 | 2CX20/0.15mm O.D:2.0X4.0 | 24AWG | 2CX18/0.12mm O.D:1.8X3.6 |
| 0.50mm2 | 2CX28/0.15mm O.D:2.2X.4.4 | 22AWG | 2CX18/0.15mm O.D:2.0X4.0 |
| 0.75mm2 | 2CX42/0.15mm O.D:2.4X4.8 | 20AWG | 2CX29/0.15mm O.D:2.2X4.4 |
| 1.0mm2 | 2CX57/0.15mm O.D:3.0X6.0 | 18AWG | 2CX46/0.15mm O.D:2.5X5.0 |
| 1.5mm2 | 2CX85/0.15mm O.D:3.6X7.2 | 16AWG | 2CX74/0.15mm O.D:3.0X6.0 |
| 2.5mm2 | 2CX7X20/0.15mm O.D:4.2X8.4 | 14AWG | 2CX118/0.15mm O.D:3.5X7.0 |
| 4.0mm2 | 2CX7X32/0.15m O.D:5.0X10.0 | 12AWG | 2CX187/0.15mm O.D:4.5X9.0 |
| 6.0mm2 | 2CX7X48/0.15mm O.D:5.5X11.0 | 10AWG | 2CX297/0.15mm O.D:5.5X11.0 |
Related products:
FAQ:
(1) . When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2) . How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3) . How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.
(4) . What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
(5) . What is your terms of delivery?
We usually accept FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.
