Flat 4C Telephone Cable
Electrical & Power Energy Wires,Cables & Accessories
MOQ:10000 Meter(s)
Payment Method :
Keywords: Telephone Cable 4C Telephone Cable Flat Telephone Cable
| Product Category: | Electrical & Power Energy > Wires,Cables & Accessories | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | shanghai or ningbo |
4 Core Telephone cable
4C*7/0.12mm CU
Insulation:PE
OD:2.5mm*5mmPVC
Common Features
1) Application: Used in communication.
2) Standard: AWG or according to customer’
3 ) Conductor: OFC/TCU/CCA/TCCA/CCS
4) Rated Voltage: Low
5) Jacket: A variety of colors & Colored PVC
6) Color: Red and Black, Clear, Yellow, Blue, etc or according to customer’s request
7) Minimum order quantity: 10 kilometers
8) Price: FOB shanghai or Ningbo /C&F destination port
9) Payment: 30% advanced payment paid by T/T with 7 days after come to
terms 70% payment will paid by T/T before shipment
10) Lead Time: According to the detail quantity
11) Packing: plastic reel, Coils, wooden drum, carton
12) Sample: Free sample is available for you
13) Individual Service: can print your logo or brand name on cable
Product Structure
multi pair telephone cable | |
Conductor Dimension | 0.37mm/0.40mm/0.50mm, 24AWG |
Conductor Material | OFC/CCC/CCA/CCS |
Insulation | 1. Water blocking swellable tape (optional) |
2. HD-PE (High density polyethylene) | |
3. 1.0mmHD-PE(Highdensity polyethylene) | |
Number Of Cores | 2core/4core/6core/8core/10core |
Shielding | UTP/Polyester Tape/Al Foil |
Ripcord yes/no | Yes with Nylon |
Jacket | PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE |
Separator | Mylar Spirally Wrapped |
Color | Different color is available |
Operating temperature | -20 ° C - +75 ° C |
Service Life | 20~25 years |
Specification
Model | specification | insulation outer(mm) | Overall outer(mm) |
DX-Tel-01 | 1x2x1/0.40 | 0.9 | 2.7 |
DX-Tel-02 | 2x2x1/0.40 | 0.9 | 4.0 |
DX-Tel-03 | 3x2x1/0.40 | 0.9 | 4.3 |
DX-Tel-04 | 4x2x1/0.40 | 0.9 | 4.8 |
DX-Tel-05 | 6x2x1/0.40 | 0.9 | 5.7 |
DX-Tel-06 | 8x2x1/0.40 | 0.9 | 6.3 |
DX-Tel-07 | 10x2x1/0.40 | 0.9 | 8.0 |
DX-Tel-08 | 20x2x1/0.40 | 0.9 | 10.0 |
DX-Tel-09 | 25x2x1/0.40 | 0.9 | 11.5 |
DX-Tel-10 | 30x2x1/0.40 | 0.9 | 12.6 |
DX-Tel-11 | 50x2x1/0.40 | 0.9 | 16.0 |

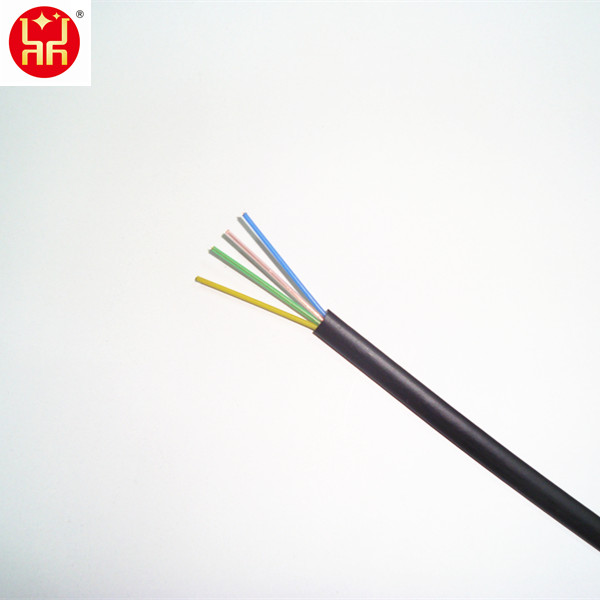

Product Picture
