Customized color coated galvanized steel anti-corrosive roof sheet lightweight
Construction & Decoration Building Structural Material
MOQ:1000 Square Meter(s)
Payment Method : L/C T/T Others
Keywords:anticorrosive material PPGI steel color coated steel color coated coil roofing sheet construction steel Metal Building Materials
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | Fangxing |
| Product Package: | standard seaworthy package | Specifications: | weight: 3-5tons/roll |
| Place of Origin: | Shandong, China | Port: | Qingdao, China |
Fangxing FFGI Steel
Introduction
FFGI Steel is metal sheet coated by synthetic resin film on both sides, which protect the product from corrosion resulted from acid, alkali, salt and chemical emissions.
The surface material ASA engineering resin film is a very compact material, which can significantly prevent the permeability of corrosive material.
Product Data
PVDF: PVDF has the Characteristics of Fluororesin and General Resin:
1.PVDF with the Highest Mechanical Strength among fluoroplastics,
2.Good Wear Resistance,
3.Excellent Electrical Properties (Piezoelectricity, Dielectric properties, Pyroelectricity)
4.Excellent UV Resistance,
5.Weather Resistance,
6.Flame Resistance,
7.Oxidation resistance,
8.Chemical resistance ,
9.High temperature resistance,
10.Good Chemical Stability,
11.Oil Resistance,
12.Self-Cleaning, the dust is not easy to stick to the surface.
Features
Cooling Effect: The surface engineering resin material uses infra-red reflection technology, which can reflect over 30% of infra-red ray. The average temperature in interior building can be 10℃ lower than using color coated steel sheet according to the test in FANGXING laboratory;
Fire Resistance: FFGI Steel can reach Class A requirement of all kinds of buildings;
Electricity Insulation: FFGI Steel is coated by two layers of synthetic resin material, which protect the product from electricity conducting. It’s a safe material;
Excellent Mechanical Properties: FFGITM Steel has the same mechanical property with the Hot Galvanized Steel.
Extreme weather resistance: FFGI steel can keep good performance under temperature from -40~100℃.

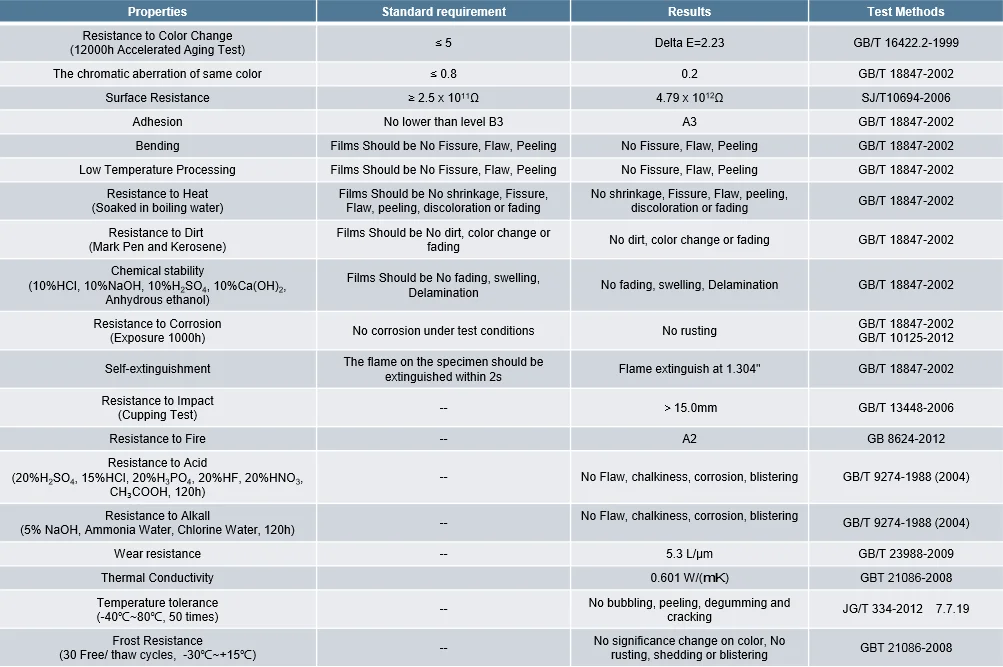

Technical Parameters

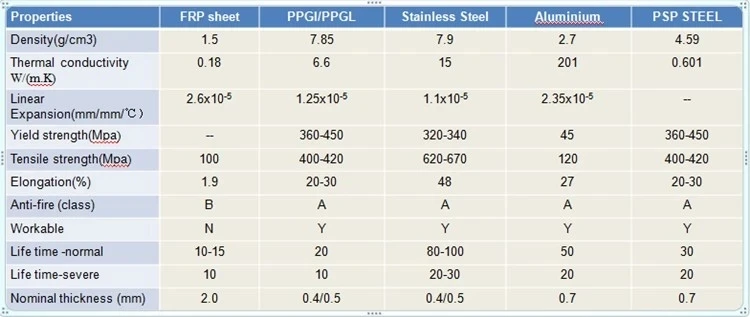

Overall comparison of different roofing materials
Color Choices

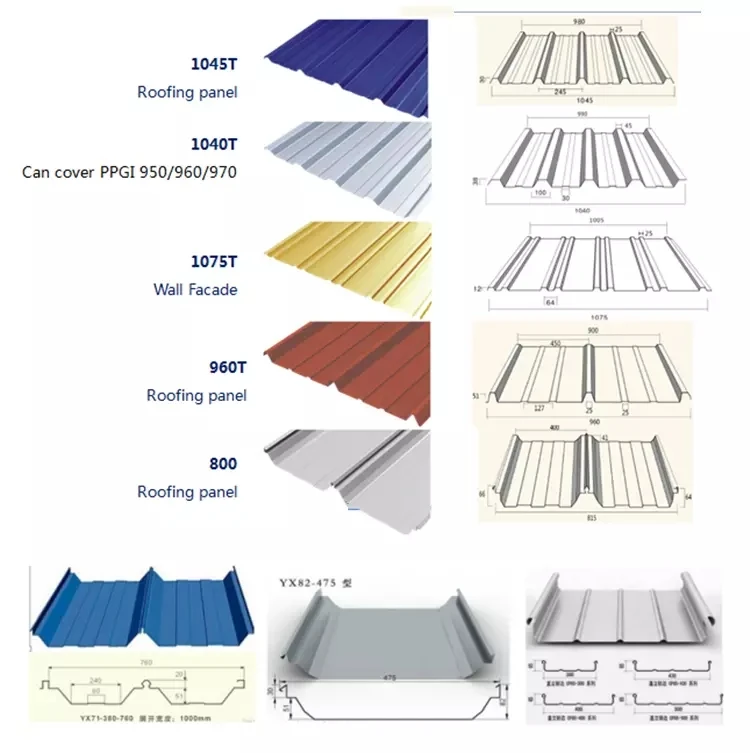

Product Models

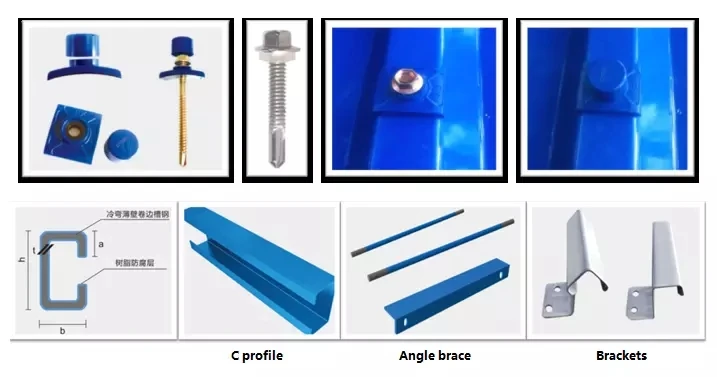

The accessory
Special fixings and Anti-corrosion accessories

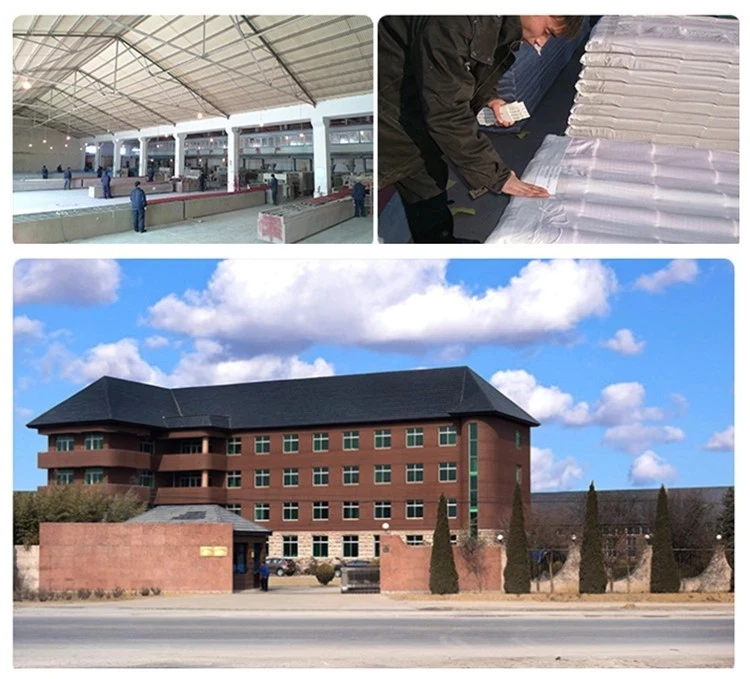

Our Company
Fangxing have been manufacturing roof tiles and accessories since 1987. Located in Laizhou China, Fangxing are main supplier of top quality plastic roof sheet and solar integrated roofing in various building projects .Fangxing roof tiles are widely used on government buildings, factory warehouses, residential areas and villas.As a roofing materials sponsor for 2008 Beijing Olympic Games, 2010 Shanghai World Expo and 2010 Asian Games, Fangxing contribute about 90% market share of PVC roofing materials in China.
| Contact Name: | Miss Emily lin | Contact Email: | em****y@fangxing.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 138***017 |
| Contact Tel: | +8653285030055 | Contact Fax: | |
| Address: | Rm.A-3307, Top Yihe International, No. 10 Hongkong Middle Road. | Website: | http://www.fangxingroofing.com |
Founded in 1987, Fang Xing has always been committed to the research and development of lightweight building materials for roofs and walls.
The products have been continuously updated, and the production technology has been improved, leading the healthy development of the industry.
In 2002, the synthetic resin tiles successfully developed by Fangxing and GE sold well at home and abroad, occupying the leading position in the domestic "flat-to-slope" market, and pioneered the Chinese resin tile industry.
In 2015, Fangxing successfully developed a plastic-steel clad corrosion-resistant board that called FFGI steel, which has the excellent performance of resin plates and metal plates.
It is widely used in corrosive industries and coastal areas such as smelting, electrolysis, forging, chemical industry, pharmaceuticals, printing and dyeing, and breeding. A complete solution is provided for solving the anti-corrosion problem of modern industrial plants. And has gradually replaced the traditional PPGI/PPGL sheets.
Fang Xing always adheres to the business principles of honesty and trustworthiness, follows the business philosophy of focus and professionalism, adhering to the concept of continuous innovation, self-transcendence, and always keeping one step ahead of the others. It shoulders the corporate mission of creating value for customers,
creating profits for shareholders, and creating future for employees.
On the road to professional development, we continue to seek and work hard.
