Miniature Circuit Breaker 6kA&10kA Curve C AD47-100/125 63A-125A

Electrical & Power Energy Electrical Switches & Supplies

FOB Price:US$ 1.88 / Piece(s)

MOQ:1000 Piece(s)

Payment Method : T/T

Keywords:Curve C IEC60947 1P 2P 3P 4P 63-125A MCB 10ka 100A 80A

Add to Favorites

Product Category: Electrical & Power Energy > Electrical Switches & Supplies Trademark: KINO/SWAN/OEM
Product Package: Packaged by Standard Export Carton Specifications: Factory direct selling circuit breaker Circuit breaker manufacturer provide 1-4P 63amp-125 10KA breaking capacity
Place of Origin: Wenzhou, China Port: NINGBO or SHANGHAI

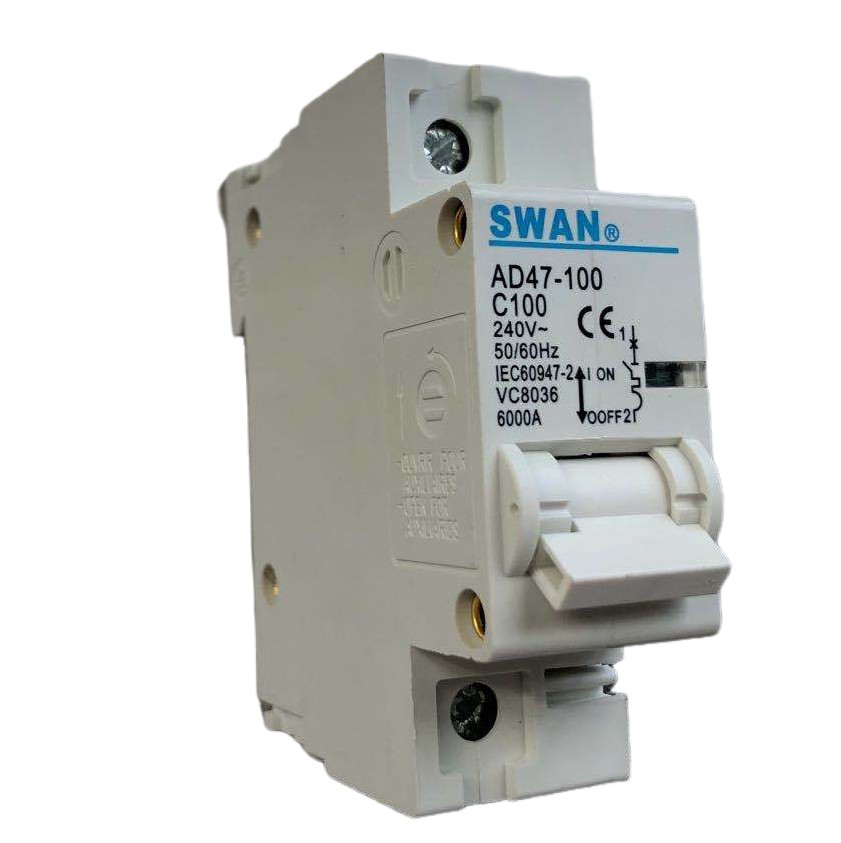

AD47/AD47-1 - MINI CIRCUIT BREAKER


DESCRIPTION / APPLICATION

A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected.  Circuit breakers are rated both by the normal current that they are expected to carry, and the maximum short-circuit current that they can safely interrupt. This latter figure is the ampere interrupting capacity (AIC) of the breaker.  It is in conformity with IEC 60947 standard.


MAIN TECHNICAL DATA

Electrical
Features

Standard


SANS556-1 IEC60947-2

Rated current

A

AD47 - 63A,80A, 100A

AD47-1 - 63A,80A, 100A,125A

Poles


1P, 2P, 3P, 4P*

AC Volts

V

230V, 400V

Rated frequency

Hz

50/60

Rated breaking capacity

kA

AD47 - 6kA,10kA

AD47-1 - 6kA

Mechanical
Features

Thermo-magnetic release characteristic

Curve

B*, C (white toggle), D* (orange toggle)

Electrical life expectancy

h

4000

Mechanical life expectancy

h

10000

Protection degree


IP20

Best Ambient temperature

30

Installation



Ambient temperature

(with daily average≤35

-30 to +60

Terminal connection type


Cable/Pin-type busbar

Connection


Top and bottom

Tighten torque (max)

Nm

2.5Nm

Mounting


DIN Rail EN 60715(35mm) by means of fast clip device


ACCESSORIES

Auxiliary contact


CBA-AUX-XXX

Shunt release


CBA-AUX-XXX

Under voltage trip


UVT-XXX

Alarm contact


CBA-XXX

Lockout


CBA-LOCKOUT

* Available on request
