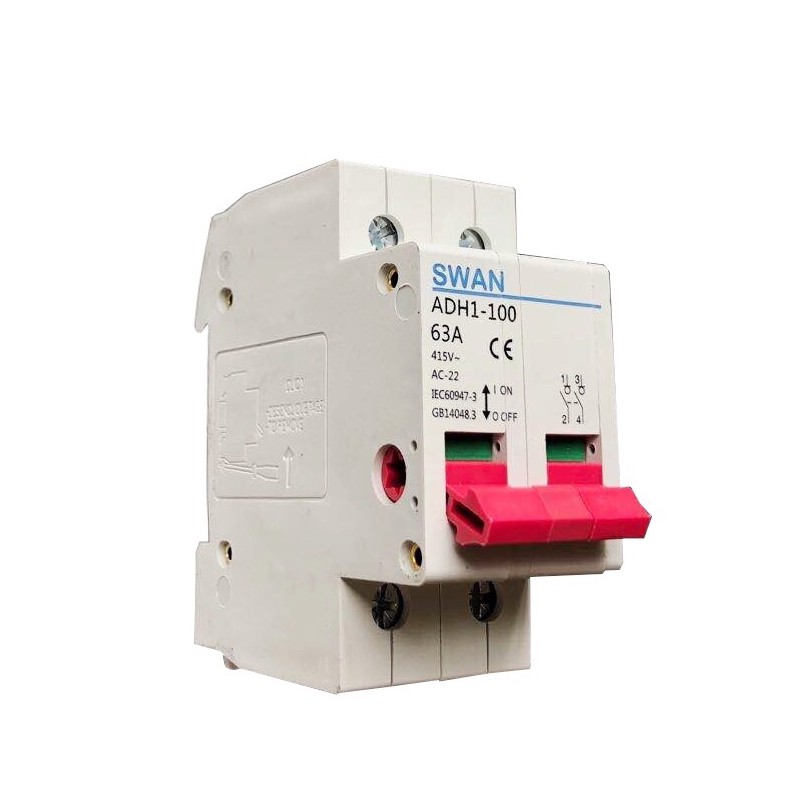

isolator disconnector switches ADH1-100 1P/2P/3P/4P 20A-125A IEC60947-3
Electrical & Power Energy Electrical Switches & Supplies
MOQ:500 Piece(s)
Payment Method : T/T
Keywords:isolator disconnector switches 1P/2P/3P/4P 20A-125A IEC60947 100A ADH1
| Product Category: | Electrical & Power Energy > Electrical Switches & Supplies | Trademark: | KINO/SWAN/OEM |
| Product Package: | standard package for export | Specifications: | |
| Place of Origin: | Wenzhou, China | Port: | SHANGHAI or NINGBO |
ADH1-100 - MINI CIRCUIT BREAKER
DESCRIPTION / APPLICATION
An isolator is applied to switch on and off the circuit of terminal boxes or control motors, electrical apparatus, and lighting systems. It is in conformity with IEC 60947-3 standard.
MAIN TECHNICAL DATA
Electrical | Standard | IEC60947-3 | |
Rated current | A | 20A,32A,40A,63A,80A,100A,125A | |
Poles | 1P, 2P, 3P, 4P* | ||
AC Volts | V | 230V, 400V | |
Rated frequency | Hz | 50/60 | |
Rated breaking capacity | kA | / | |
Rated short-time withstand current lcw | 12le, t=1s | ||
Rated making and breaking capacity | 3le, 1.05Ue, COSφ0.65 | ||
Rated short circuit making capacity | 20le, t=0.1s | ||
Uilization category | AC-22A | ||
Mechanical | Thermo-magnetic release characteristic | Curve | / |
Electrical life expectancy | h | 3000 | |
Mechanical life expectancy | h | 10000 | |
Protection degree | IP20 | ||
Best Ambient temperature | ℃ | 30 | |
Installation
| Ambient temperature (with daily average≤35℃） | ℃ | -30℃ to +60℃ |
Terminal connection type | Cable/Pin-type busbar | ||
Connection | Top and bottom | ||
Tighten torque (max) | Nm | 2.5Nm | |
Mounting | DIN Rail EN 60715(35mm) by means of fast clip device |
DIMENSIONS AND MOUNTING
