contactor ac contactors CJX2 630A 3P/4P
Electrical & Power Energy Electrical Controls
MOQ:50 Piece(s)
Payment Method : T/T
Keywords:IEC60947 CJX2 ac contactors CONTACTOR 400A 800A
| Product Category: | Electrical & Power Energy > Electrical Controls | Trademark: | KINO/SWAN/OEM |
| Product Package: | Standard Package for Export | Specifications: | |
| Place of Origin: | Wenzhou, China | Port: | SHANGHAI or NINGBO |

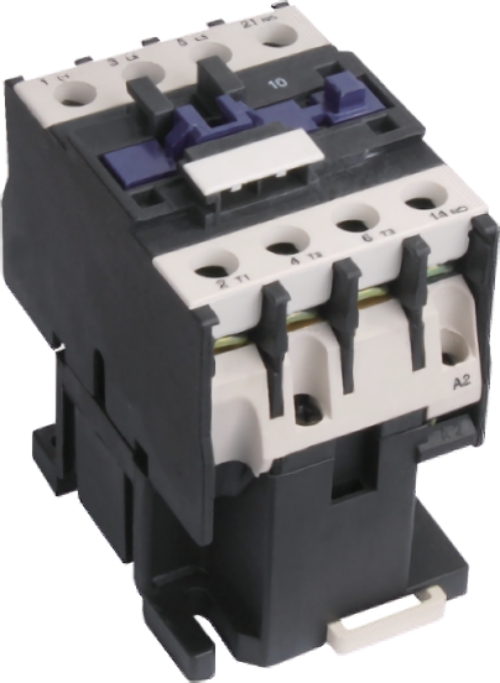

CO-CJX2 - Contactor AC
DESCRIPTION / APPLICATION
CJX2 AC contactor D series (hereinafter referred to as contactor) is mainly used circuits of AC50Hz(or 60Hz), voltage up to 660V, and current up to 95A, for long-distance switching on/off the circuits and frequent start-up and control of AC motor, and it can be combined with appropriate thermal relay to constitute electromagnetic starter, in order to protect circuits that may subject to operating overload.
MAIN TECHNICAL DATA
Type | CJX2-D09 | CJX2-D12 | CJX2-D18 | CJX2-D25 | CJX2-D32 | CJX2-D40 | CJX2-D50 | CJX2-D63 | CJX2-D80 | CJX2-D95 |
Rated Insulation | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 |
Conventional Thermal Current | 20 | 25 | 32 | 40 | 50 | 60 | 75 | 80 | 110 | 125 |
Rated Operational Current 380V/Ac3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 63 | 80 | 93 |
Power of Controlled (kW) | 2.2 | 3 | 4 | 5.5 | 11 | 15 | 18.5 | 22 | 25 | |
4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 37 | 45 | ||
4 | 5.5 | 9 | 11 | 22 | 25 | 37 | 45 | 45 | ||
4 | 5.5 | 9 | 11 | 22 | 30 | 37 | 45 | 45 | ||
5.5 | 7.5 | 10 | 15 | 30 | 33 | 37 | 45 | 45 | ||
Installation | 1. Two screw mounted 2. Din mounted (35mm) | 1. Three screw mounted 2. Din mounted (35mm / 75mm) | ||||||||
DESCRIPTION / APPLICATION
CJX2 AC contactor F series is mainly used circuits of AC50Hz(or 60Hz). With special coil,F series contactor can be used in 40-400Hz, voltage up to 600V, current up to 630A, for switching on/off the main circuits and frequent start-up and control of AC motor, and it can be combined with appropriate thermal relay to constitute electromagnetic starter, in order to protect circuits that may subject to operating overload.
MAIN TECHNICAL DATA
Model | CJX2-F 115 | CJX2-F150 | CJX2-F185 | CJX2-F225 | CJX2-F265 | CJX2-F330 | ||
Pole | 3 / 4 | 3 / 4 | 3 / 4 | 3 / 4 | 3 / 4 | 3 / 4 | ||
Rated conventional heating current (A) AC-1 | 200 | 200 | 275 | 280 | 350 | 360 | ||
Rated operational current(A)
| 380/400V | AC-3 AC-4 | 115 | 150 | 185 | 225 | 265 | 330 |
50 | 65 | 75 | 85 | 100 | 124 | |||
660/690V | AC-3 AC-4 | 70 | 90 | 108 | 115 | 170 | 190 | |
25 | 32 | 38 | 40 | 47 | 60 | |||
Rated insulation voltage(V AC) | 690 | 690 | 690 | 690 | 690 | 690 | ||
Power of controlled 3-phase cage motor(AC-3) | kW | 380/415V AC 660/690V AC | 55 | 75 | 90 | 110 | 132 | 160 |
80 | 100 | 110 | 140 | 160 | 220 | |||
AC coil（V） | 110,127,220,240,380,415,440,480,500,600 | |||||||
Items | Model | CJX2-F 400 | CJX2-F500 | CJX2-F630 | CJX2-F800 | CJX2-F780 | CJX2-F1000 | |
Pole | 3 / 4 | 3 / 4 | 3 / 4 | 3 / 4 | 3 / 4 | 3 / 4 | ||
Rated conventional heating current (A) AC-1 | 430 | 580 | 850 | 850 | 1200 | 1200 | ||
Rated operational current(A)
| 380/400V | AC-3 AC-4 | 400 | 500 | 630 | 800 | 780 | 1000 |
150 | 185 | 188 | 195 | 240 | - | |||
660/690V | AC-3 AC-4 | 235 | 290 | 360 | 486 | - | - | |
72 | 85 | 170 | - | - | - | |||
Rated insulation voltage(V AC) | 690 | 690 | 690 | 690 | 690 | 690 | ||
Power of controlled 3-phase cage motor(AC-3) | kW | 380/415V AC 660/690V AC | 200 | 250 | 335 | 400 | 400 | 500 |
280 | 330 | 450 | 475 | 475 | 670 | |||
AC coil（V） | 110,127,220,240,380,415,440,480,500,600 | |||||||
