Moulded Case Circuit Breaker ADM1 630A 3P/4P 25ka/35ka/50ka
Electrical & Power Energy Electrical Switches & Supplies
MOQ:20 Piece(s)
Payment Method : T/T
Keywords:IEC60947 3P 4P Moulded Case Circuit Breaker 80A-1250A 25KA MCCB 630A 35ka 50ka
| Product Category: | Electrical & Power Energy > Electrical Switches & Supplies | Trademark: | SWAN/KINO/OEM |
| Product Package: | Packaged by Standard Export Carton | Specifications: | |
| Place of Origin: | Wenzhou, China | Port: | NINGBO or SHANGHAI |

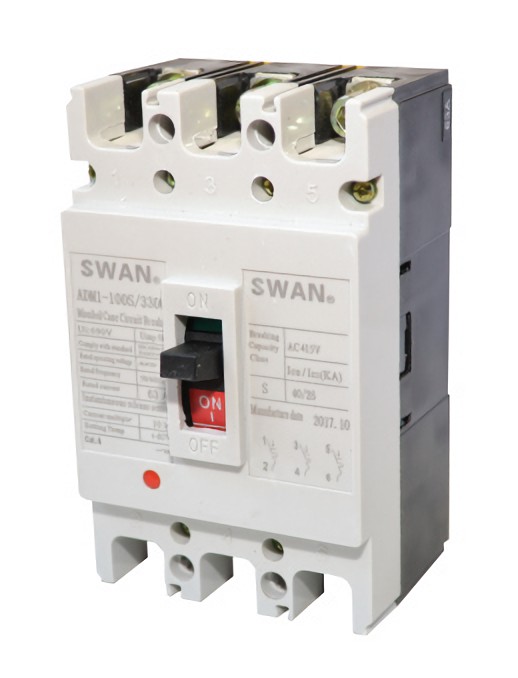

ADM1-Moulded Case Circuit Breaker
DESCRIPTION / APPLICATION
ADM1 moulded case circuit breaker series is one of products developed and manufactured by adopting international advanced technology. It's supplied with rated insulation voltage 800V, suitable for AC 50Hz /60Hz, and rated operating voltage is 415V, rated operating current from 16A up to 1250A for power distribution and protection circuit and power supply from the damage occurred by overload, short circuit, under voltage. It also can be used as infrequent start and protection of overload, short circuit and under voltage. The product conforms to IEC 60947-2 standard.
? Applicable Ambient Temperature: -5°C~40°C
MAIN TECHNICAL DATA
Model NO. | Rated Current(A) | Icu(kA) 415V/690V | Ics(kA) 415V/690V |
ADM1-100S | 16,20,25,32,40,50,63,80,100 | 35/8 | 17.5/4 |
ADM1-100H | 50/10 | 25/5 | |
100,125,160,180,200,225 | 35/8 | 17.5/4 | |
ADM1-225H | 50/10 | 25/5 | |
ADM1-400S | 225,250,315, 350,400 | 50/10 | 25/5 |
ADM1-400H | 65/10 | 32.5/5 | |
ADM1-630S | 400,500,630 | 50/10 | 25/5 |
ADM1-630H | 65/10 | 32.5/5 | |
ADM1-800S | 630,700,800 | 75 | 37.5 |
ADM1-800H | 100 | 50 | |
ADM1-1250H | 700,800,1000,1250 | 80 | 40 |
Classification
Installation Type | Vertical installation, Horizontal installation |
Wiring Type | Front connection, Back connection, Plug-in type |
Handle Type | Direct operated handle , extend rotary handle, Motor operator |
Tripping Type | |
Number of poles | 3P, 4P |
Modular System
| 1 | MCCB (fixed type) |
2 | Under-voltage release |
3 | Shunt release |
4 | Alarm contact |
5 | Auxiliary contact |
6 | Motor-driven operation mechanism |
7 | Extended manual operation handle |
8 | Mechanical interlock |
9 | Cage clamp terminal |
10 | Terminal cover |
11 | Front connection plate |
Tripping Characteristic
Electromagnetic tripping for Distribution protection | |||||||
Rated Current(A) | Thermal tripping(Ambient temperature +40℃) | Electromagnetic trip action current (A) | |||||
1.05In Cold state | |||||||
10≤In≤63 | ≥1 | ≤1 | 10In±20% | ||||
63＜In≤100 | ≥2 | ≤2 | |||||
100＜In≤630 | ≥2 | ≤2 | 10In±20% | ||||
Electromagnetic tripping for Motor protection | |||||||
Rated Current(A) | Thermal tripping(Ambient temperature land type +40℃, ship type +45℃) | Electromagnetic trip action current (A) | |||||
1.0In Cold state | 1.2In Thermal state | 7.2In Cold state | 1.5In Thermal state | ||||
100,160,225,250 | ≥2 | ＜2 | ≤4min | 4s＜Tp≤10s | 12In±20% | ||
400,630 | ≥2 | ＜2 | ≤8min | 6s＜Tp≤20s | |||
YUEQING KINO ELECTRICS CO.,LTD was established in 2005，located in Liushi, the capital of electrics in China. Our products are exported to Europe, the Middle East, South America, Africa, Australia and other countries and regions because of professional manufacturer, adequate SCM, extensive production experiences, strict QC system.
We have passed ISO9001 quality system certification, and most of our series products have obtained international certification, such as CE, CB, SEKMO, TUV, RHOS, etc.
We have a highly efficient, professional, dedication and service - conscious foreign trade team.
Since 2007, our company has been developing the South African market for 13 years.
Under the principle of supplying the qualified and reliable products together with the most considerate service, our products have been recognized and accepted by customers both at home and abroad.
