Light gauge steel villa frame roll forming machine

Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 55,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T Money Gram Others

Keywords:LGS frame machine G550 steel frame machine

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Industrial Processing Machinery Trademark: JCX
Product Package: Packing: nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packed with waterproof cloth and box. Specifications: 4*0.8*1.8m
Place of Origin: Botou City, Hebei Province,China Port: Tianjin

                                  Light Gauge Steel Villa Keel Roll Forming Machine


1.Machine pictures


2. Machine types

3. Machine parameters

decoilermax. weight capacity3 tons

inner diameter450-530mm

out diameter1300 mm

typeelectric decoiler

running methodautomatic
roll forming partweightabout 3 tons

size4*0.8*1.8

total power15kw

number of rollerswith 8 groups and 4 groups' correctional rolers

transmission methodgear and chain

brand of main motorInvet

powerof main motor7.5 kw

material of rollersCr12 with heat treatment

material of shaft40 Cr with vacuum heat treatment

material of cutterCr12mov

productivity of machine50m/minute with out punching, 0.5-0.6 tons/hour

tolerance of punching hole+/- 3mm
length distance:+/-0.5mm
straightness accuracy: 0.3mm

brand of inject printerSOJET double head printer

highlightsome parts of the machine we make innovation to make make use more long time and more stronger
control system Brand of PLCDelta

Brand of speed controllerDelta

Brand of low voltage/switch/encoder/buttonSchneider

design softwareVertex BD

task softwareSelf development program
hydraulic systempower5.5kw

oil tank80L

brand of solenoid valveHUADE
receiving tablesize4 meters long
After-sale serviceswarrantyone year

training items in China freelyoperation training and finished products installation training

machine maintenanceimmediate feedback and use real-time communication to solve problems and engineer avaliable to overseas

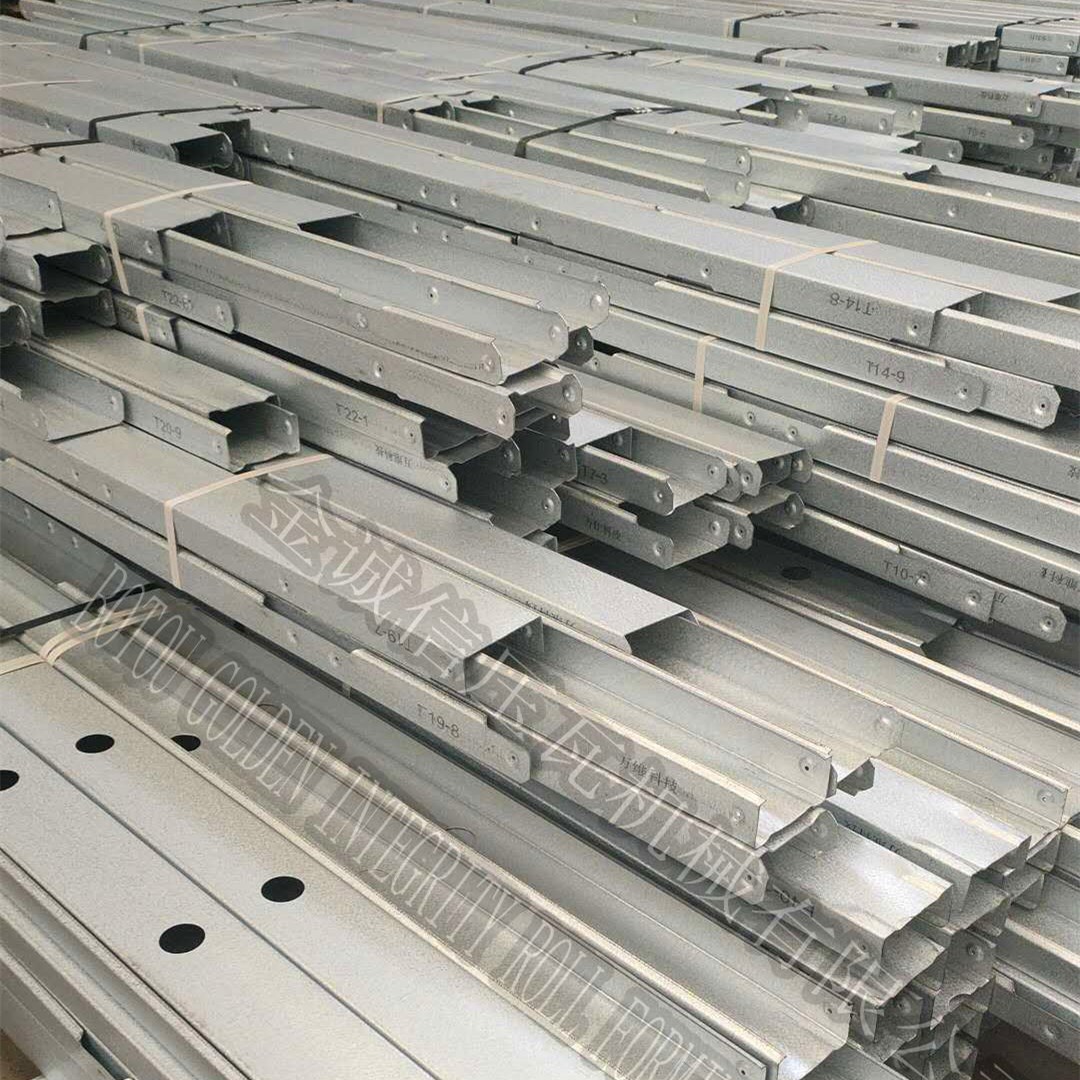

4. Machine finished light gauge steel keels application
