Which kind of pipe can be produced by our Pipe mill ?

1. Oil & Gas Pipes                                                     7. Wire and Cable Protection Pipe

2. Heating Pipe                                                          8. Structural Support Steel Pipe

3. Low-pressure Process Pipeline                          9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline                 10. Decoration Pipe
5. Sewage Pipes                                                        11. Water Pipe

6. Steel Scaffolding Pipe                                          12. Building pipe

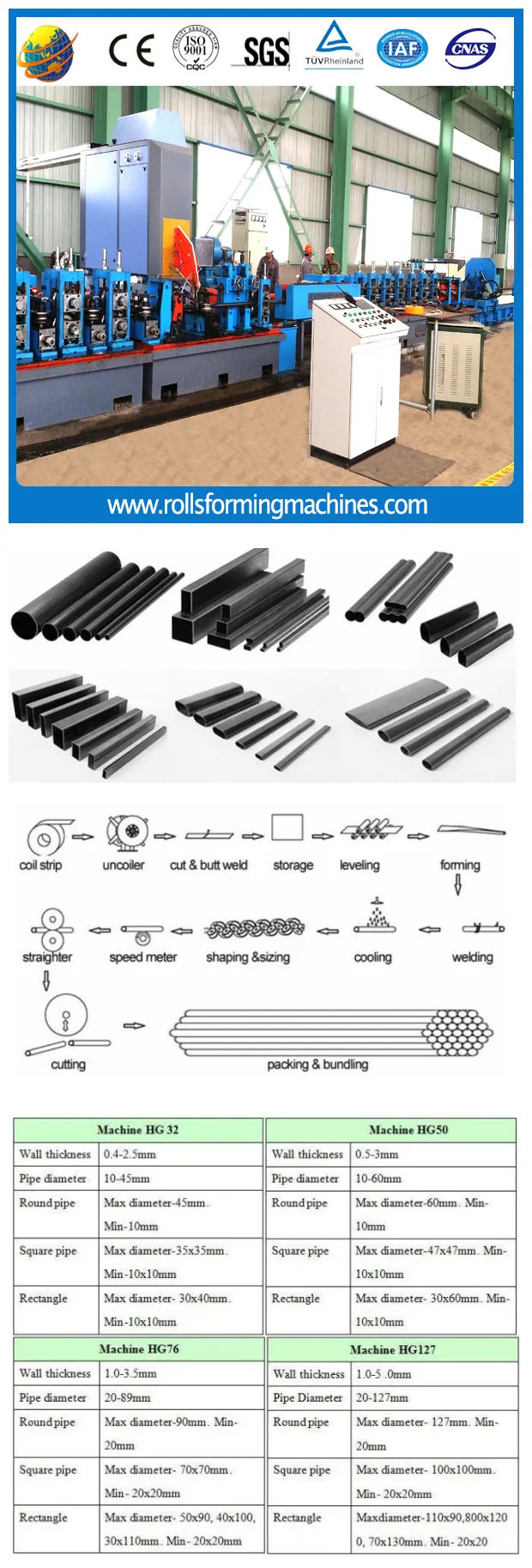

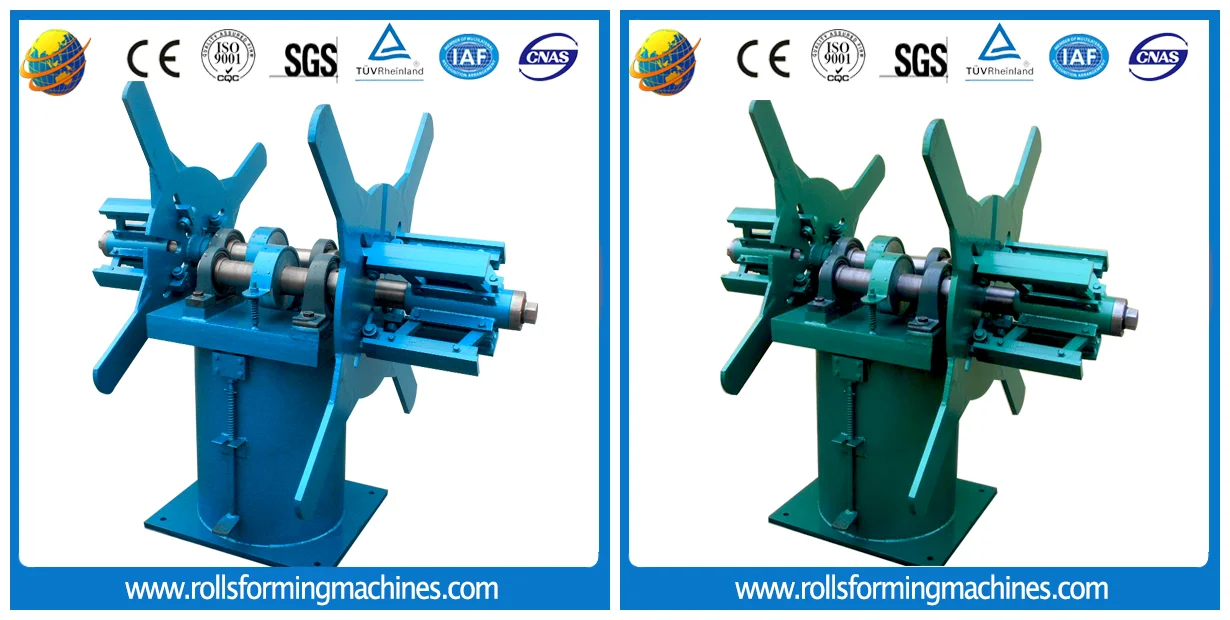

                        Step1. UNCOILER

360°rotary to control expanding and tight, which insure steel coil feeding alternatively

and make steel strip go into accumulator freely.

Function: support rolled plate and strip tension for erw pipe mill production line,

by the frame, main shaft, increases of drum, brake.
There are 3 types: pneumatic, hydraulic and manual.

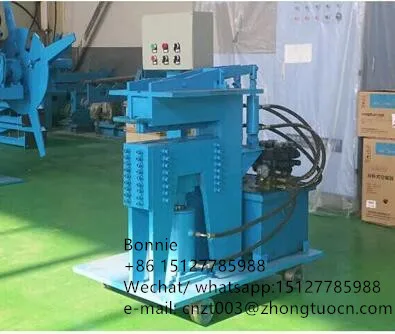

                   Step 2: Shearing butt welding

2 Types: Automatic & Manual

Function: Shear the end of each strip coil, then welding them together,

so that pipe making welding machine line can be continue production.

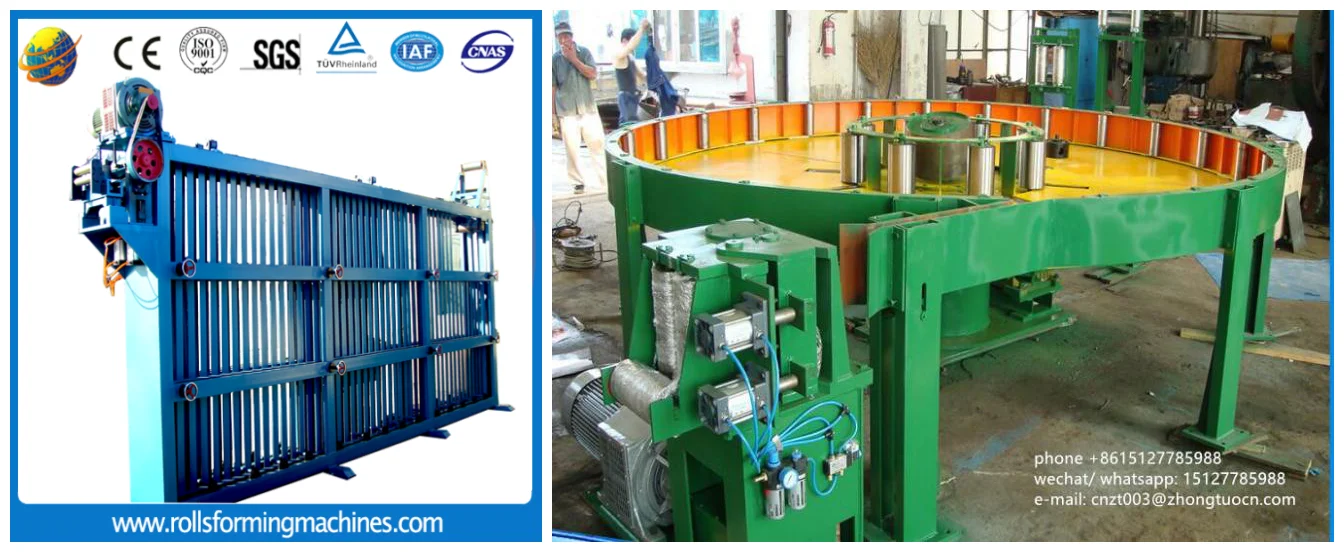

                          Step 3 : Strip Accumulator

It has two kinds of accumulator for optional. Usually big line use horizontal, and small line use vertical type

Function: storage strip to keep continue production.
2 Types: Horizontal / Vertical
Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.

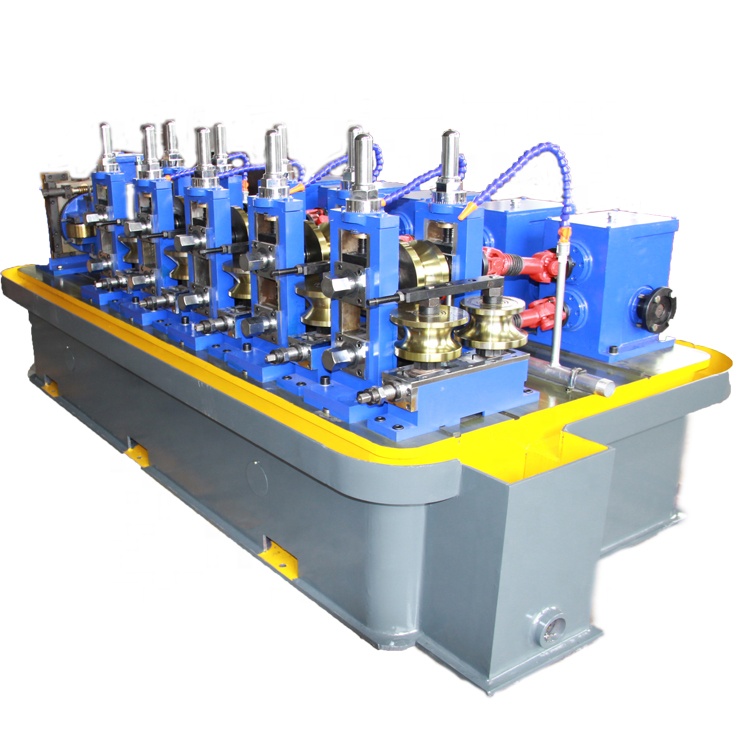

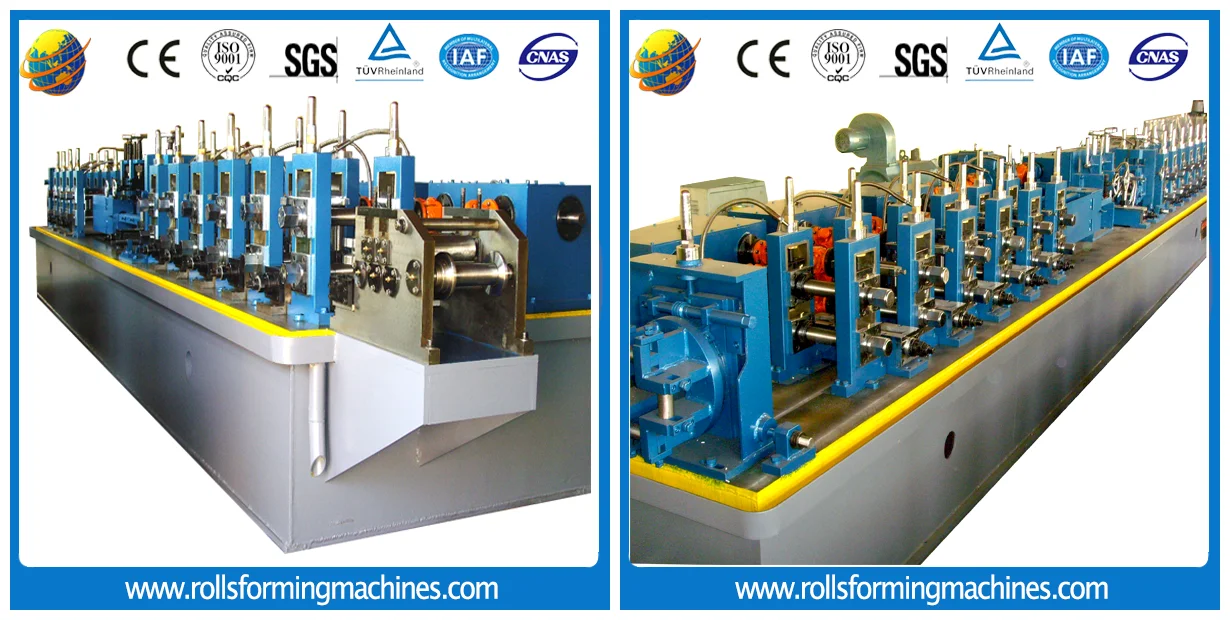

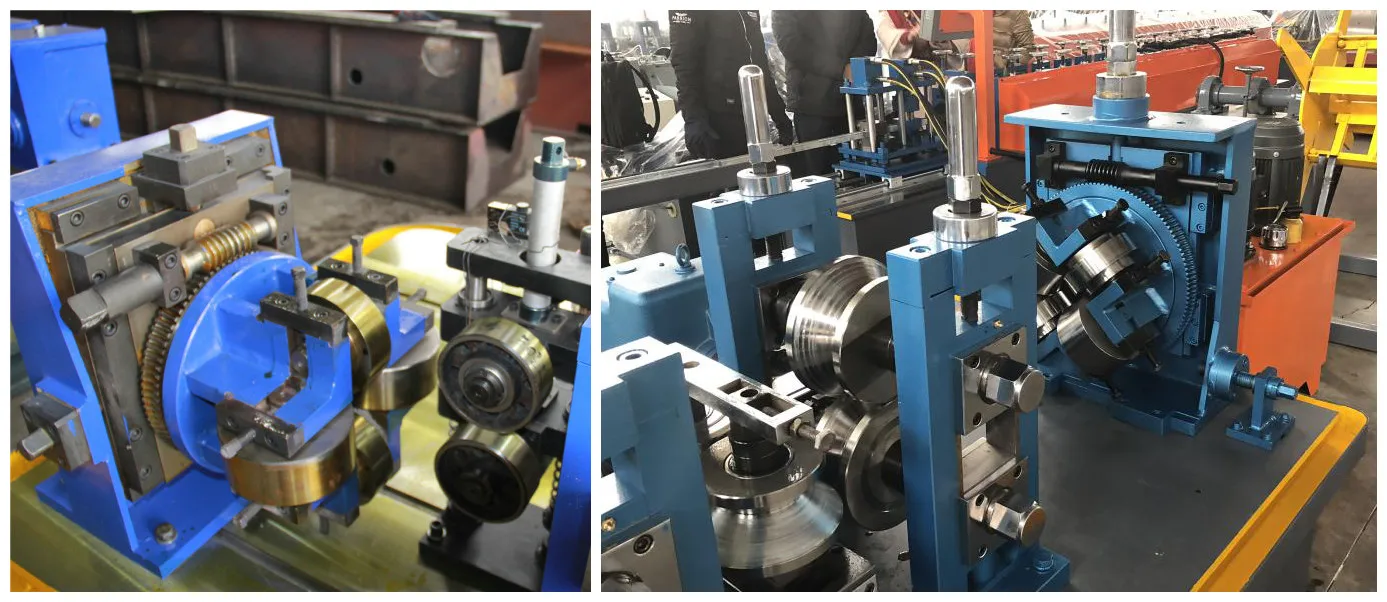

                                            Step 4 :Forming Part

Mainly roughly mill-forming steel strip and controlling weld seam

Function: forming the tube from strip

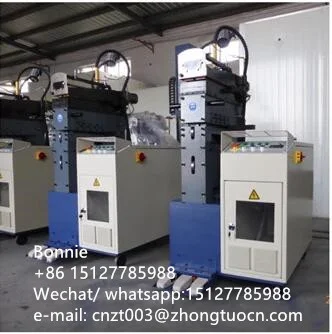

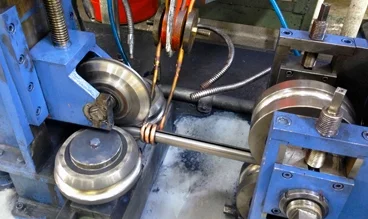

                                 Step 5: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder

                            Step 6: Sizing Section

unction: sizing the tube to precise size
Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size

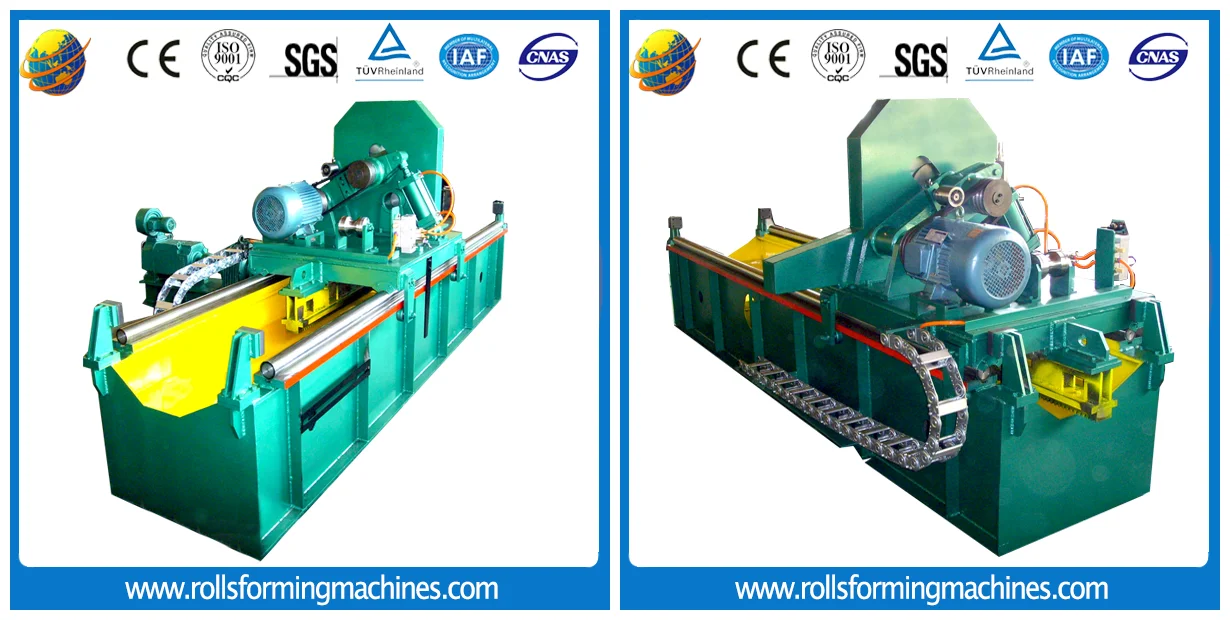

                                       Step 7: Shearing unit

Function: cutting the tube mill line tube to right length.
Fly saw: easy to operation, low investment.
Cold saw: no noise, no burr cutting precision and cross section.

                                                  Step 8:stacker
