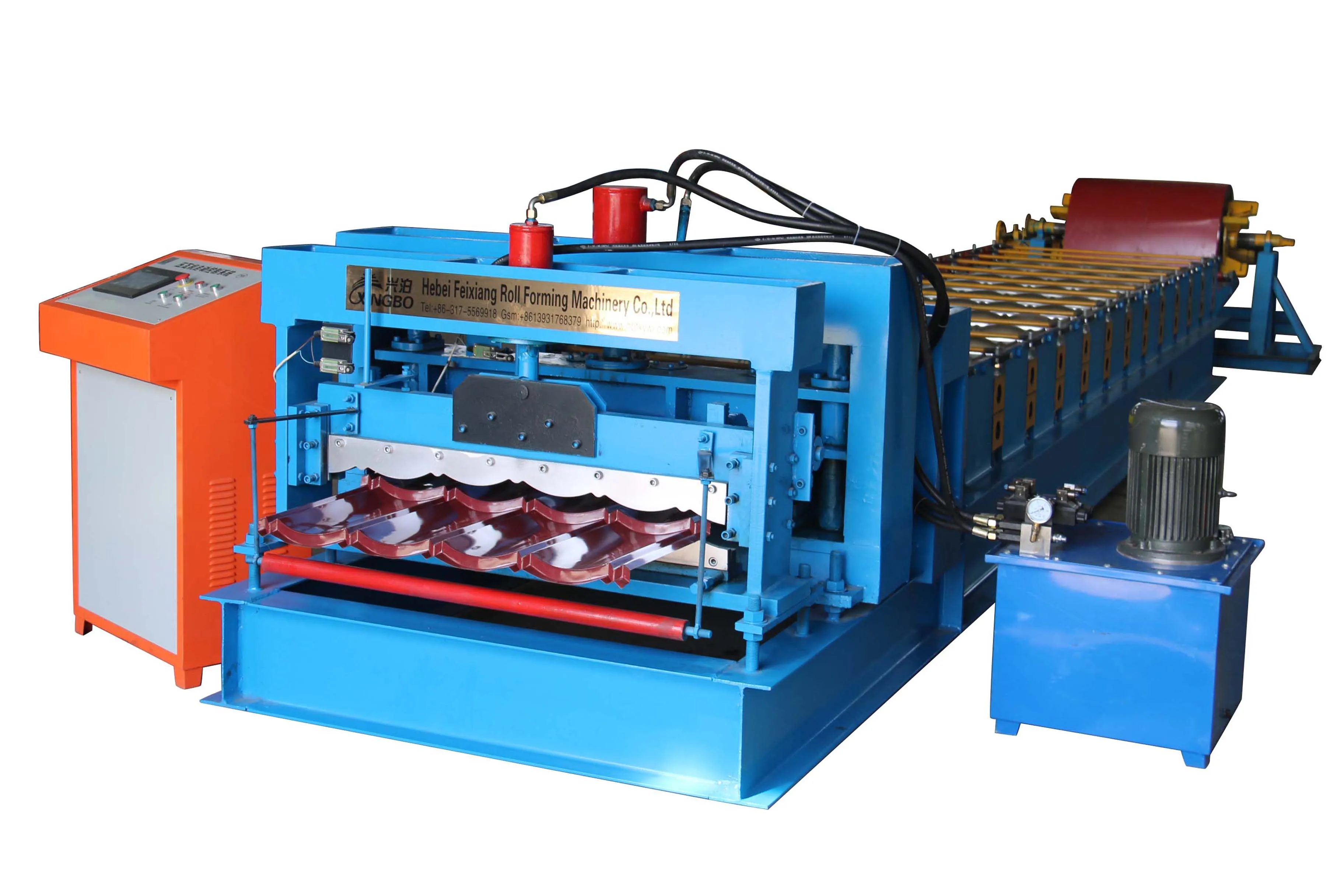

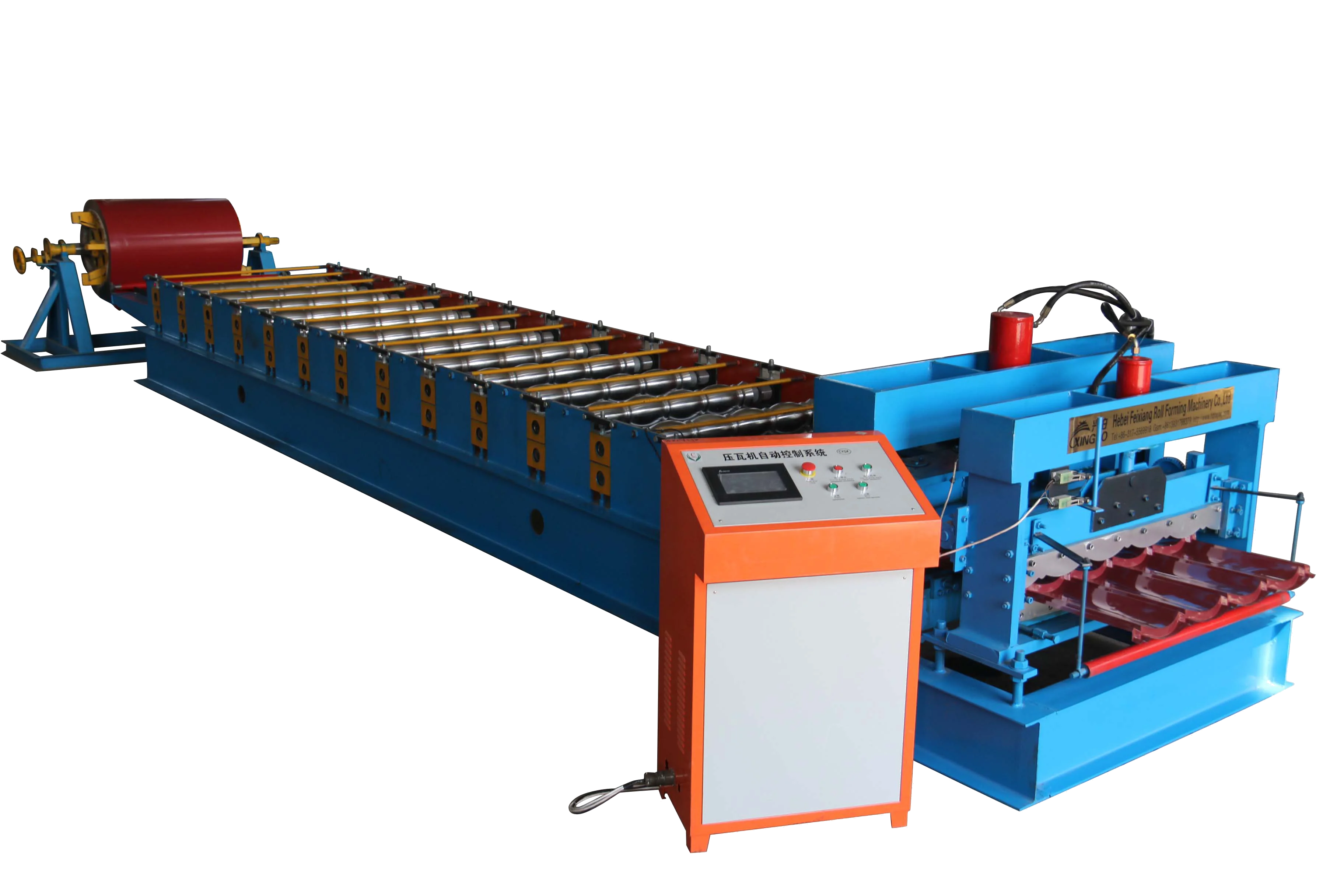

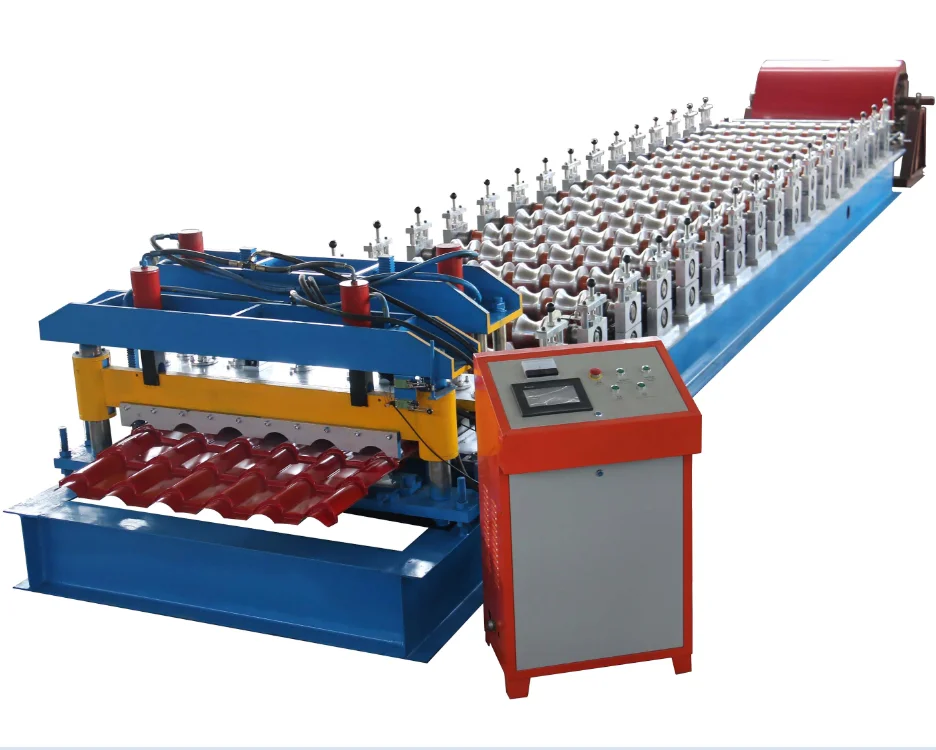

Glazed tile roll forming machine

Manufacturing & Processing Machinery Engineering & Construction Machinery

FOB Price:US$ 13,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T Others

Keywords:Glazed tile machine roll forming machine Tile Making Machinery roof sheet machine step tile making machine

Inquire

Product Category:	Manufacturing & Processing Machinery > Engineering & Construction Machinery	Trademark:	Feixiang
Product Package:	Nude	Specifications:	working speed 2-4m/min
Place of Origin:	Hebei China	Port:	Tianjin

Product Description

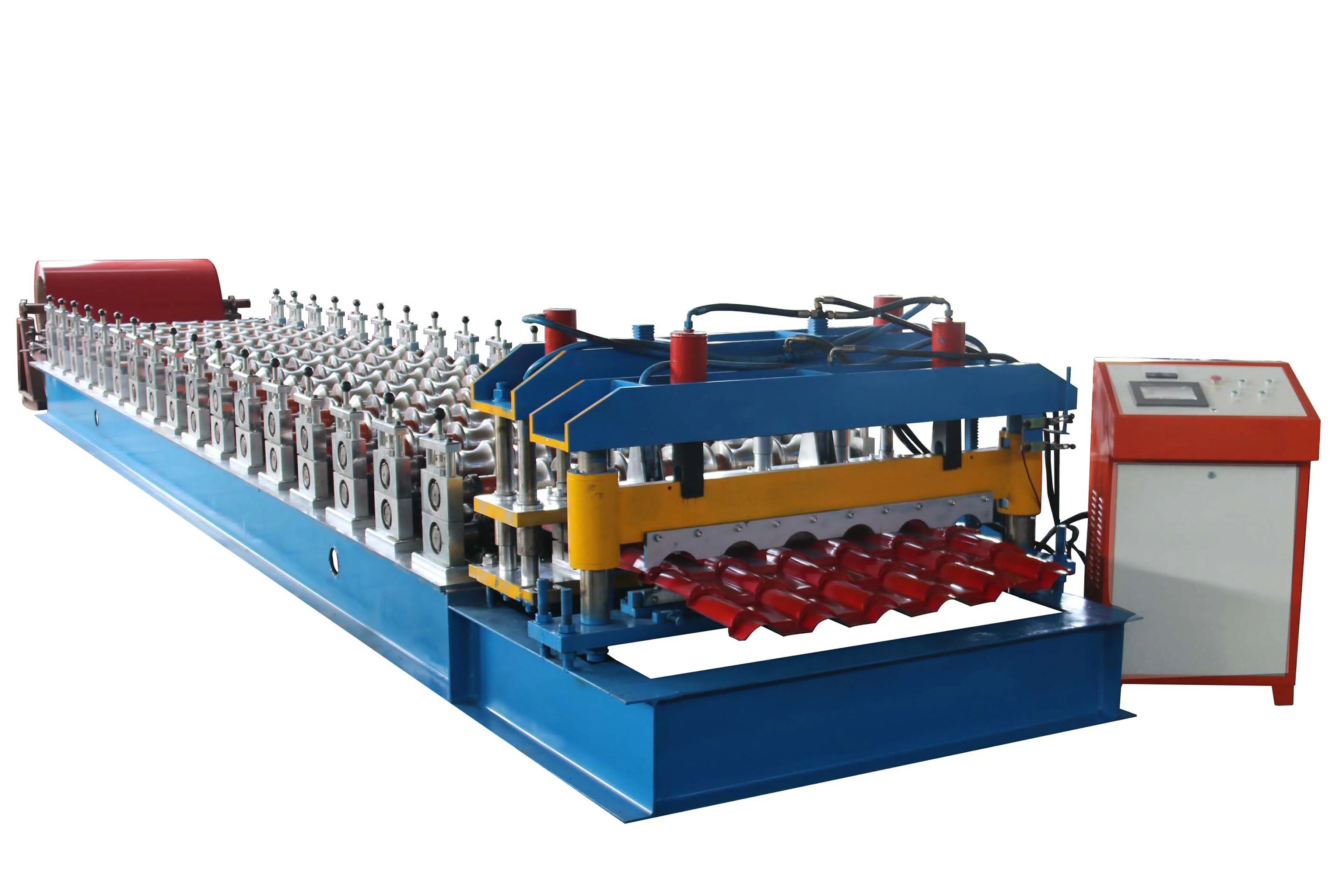

Steel glazed roff tile making machine roll forming machine with Delta PLC control, short delivery time, it can help you control perfect 3D effict of the roofing. Compared with the normal roofing sheet machine, the glazed roofing tile making machine with one more steppnism.

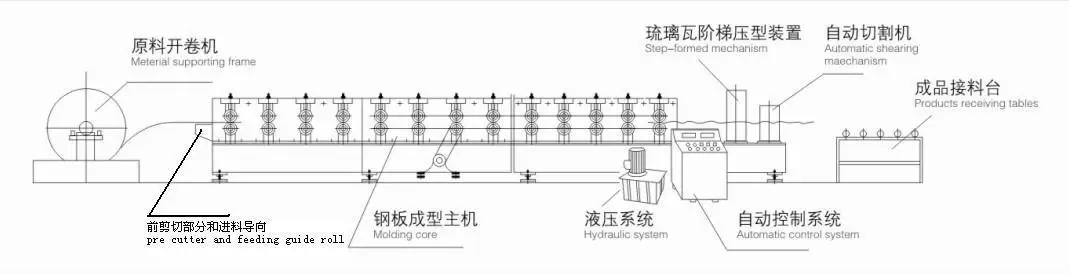

Manual decoiler	1 set,loading capacity 5T.
Forming machine	13 steps forming rollers,shaft diameter 80mm.
Control box	Delta PLC and frequency,touch screen operate.
Hydraulic pump	4kw for both pressing and cutting
Pressing and cutting	Mold material Cr12 Mov
Run out table	3m,height adjustable.

Direction for use

Steel glazed roff tile making machine roll forming machine:1.Put all necessary parts on the right location,make the ground falttening.
Connect electric wires,use 6-8 mm2 support line and keep grounding.
Fill hydraulic oil in the pump.not too full,three quarters are ok.
Feed raw materil into the machine slowly,make it run smoothly then automatic. 5.Pay attention to final sheet collection,do not scretch it or hurts people.

Description of application effect

The whole line working speed is about 3m/min.,max working speed could be 5 meters per minute.2.Feeding material width should be confirmed before machine design .the width are changeable,
Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .

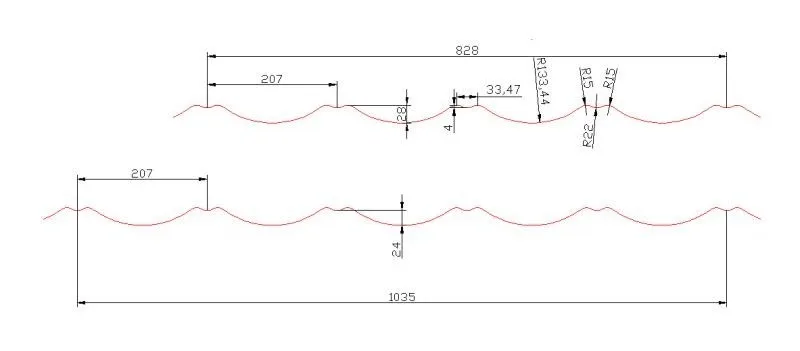

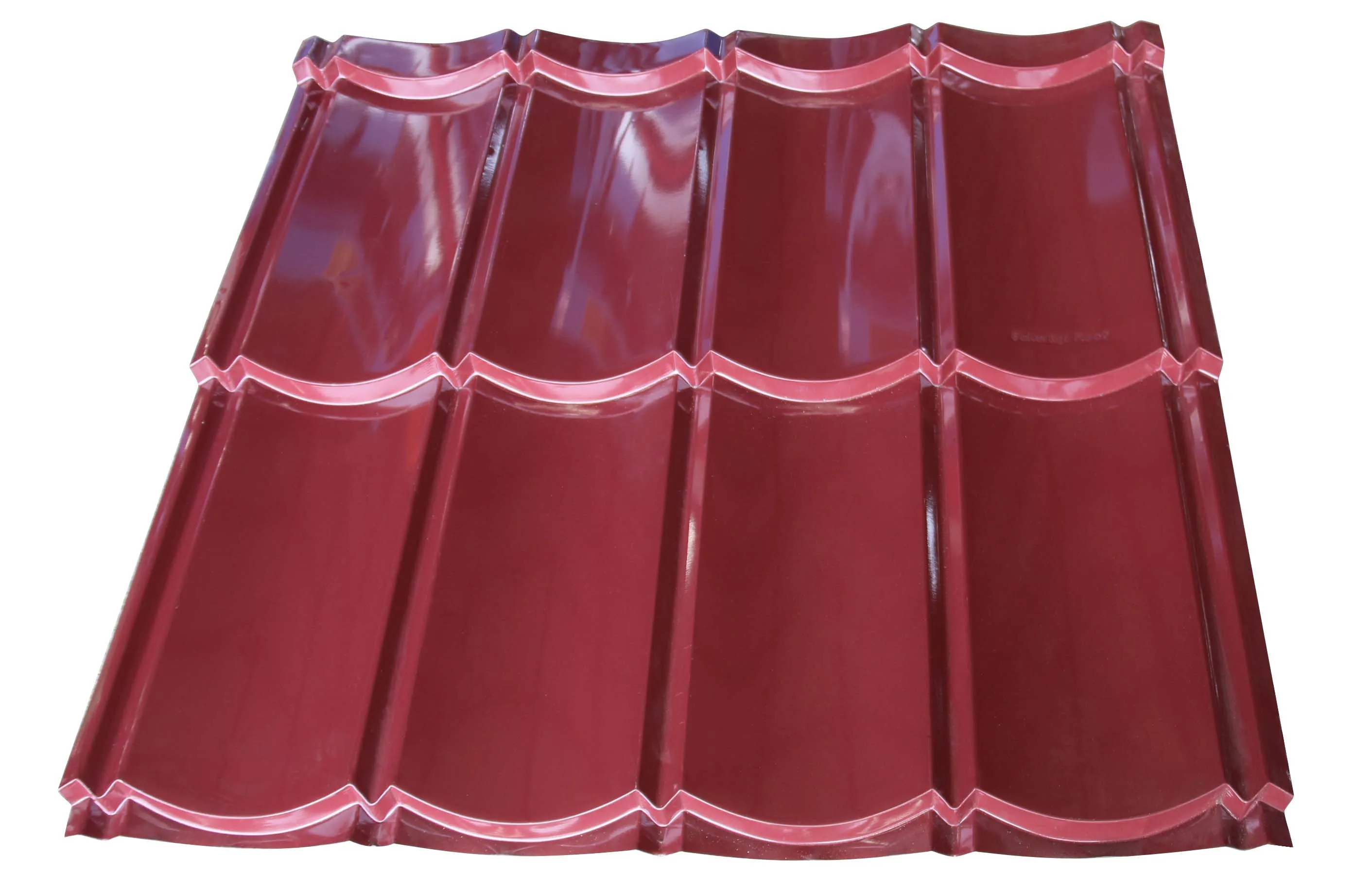

Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing.
Hydraulic pre-cutting are provided.

Detailed Images

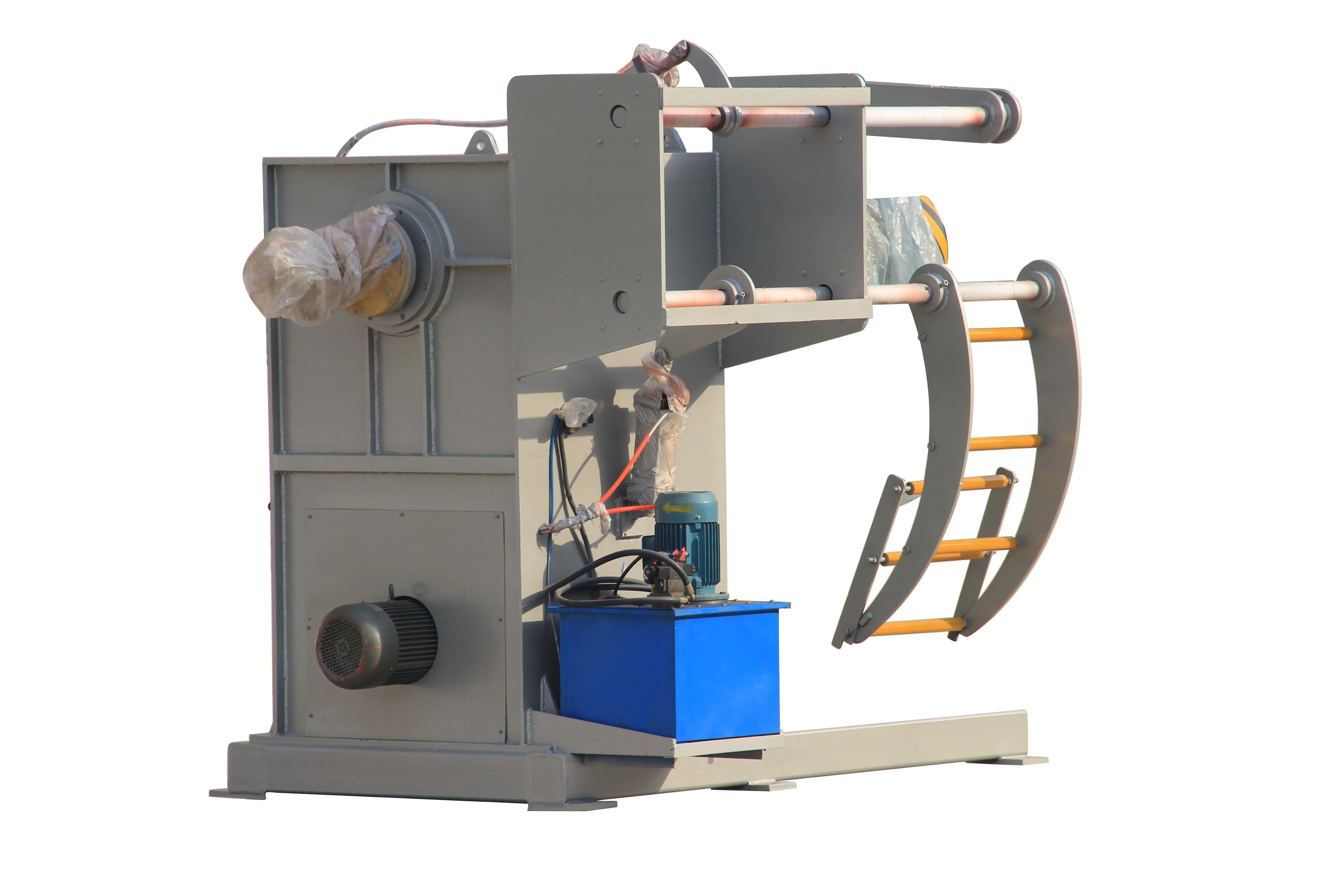

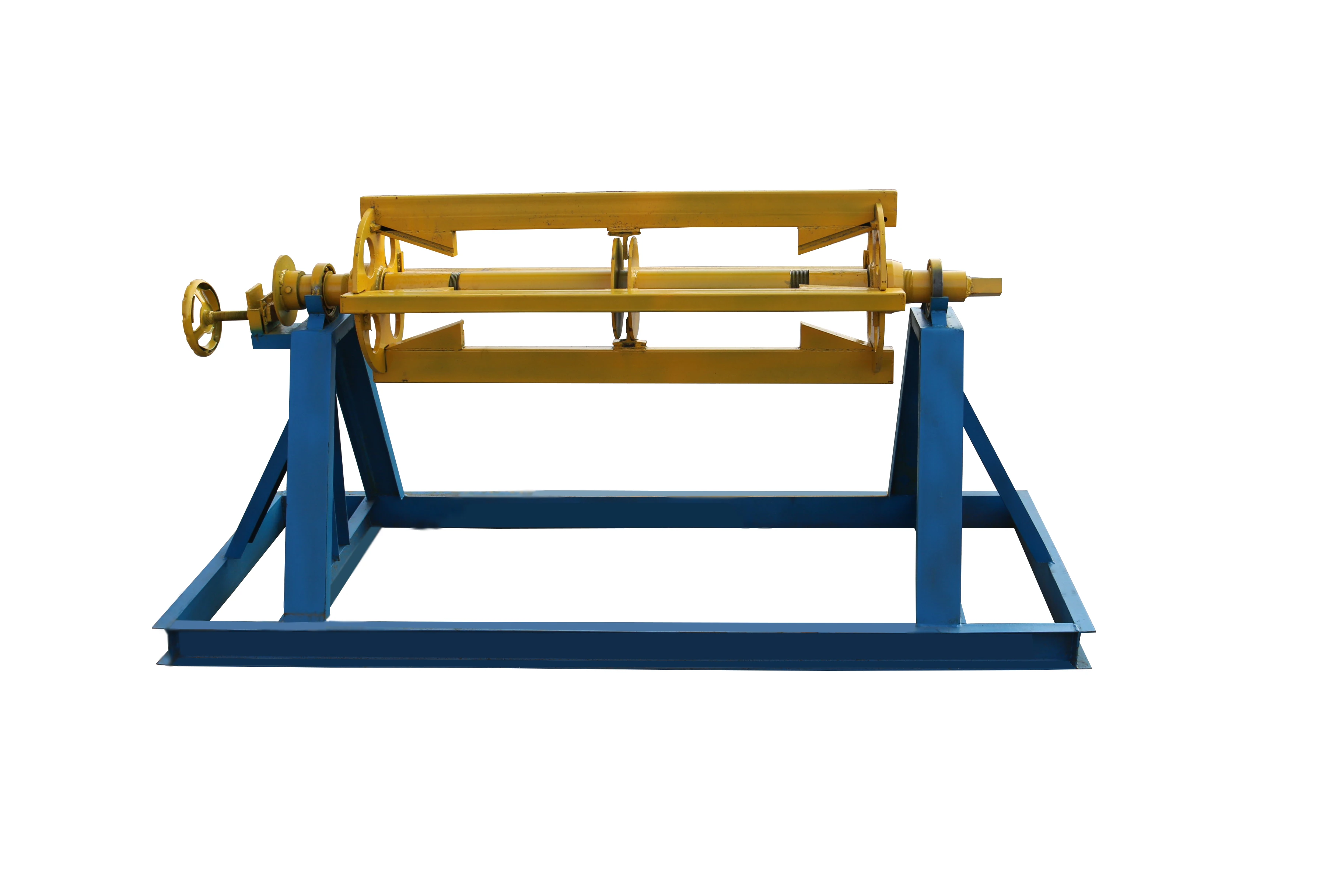

Accessary decoiler for steel glazed roof tile making machine roll forming machine,we call provide manual type,electric powered type and hydraulic drive type with loading capacity 5T ,10T and even more one.

Size Information

Parameters of Middle plate type and column plate type machine:

Item	Frame plate	Base	Weight	Length	Width
Middle plate type	18mm	350 H steel	5.4T	6.8m	1.6m
Column plate type	35mm	400 H steel	6.5T	7m	1.65m

Related Products

Packing&Shipping

Normal standard is nude,easy damage parts are covered with plastic film or wooden frame.we can also pack the machine based on customer's special requests.
We fix the bottom of the container with triangular wood,the machine is fixed with steel wire to the container.

After Sales Service

All-round after-sales service

We  can design operate language based on customer's mother tongue.
We provide 24 hours online service to solve any questions .
Our three experienced engineer are prepared for your local installation .
We provide for free sapre parts for you.
We can slod buy suitable testing material for customer's easy operation.
Customer can send their workers here study to to use and operate the machine.

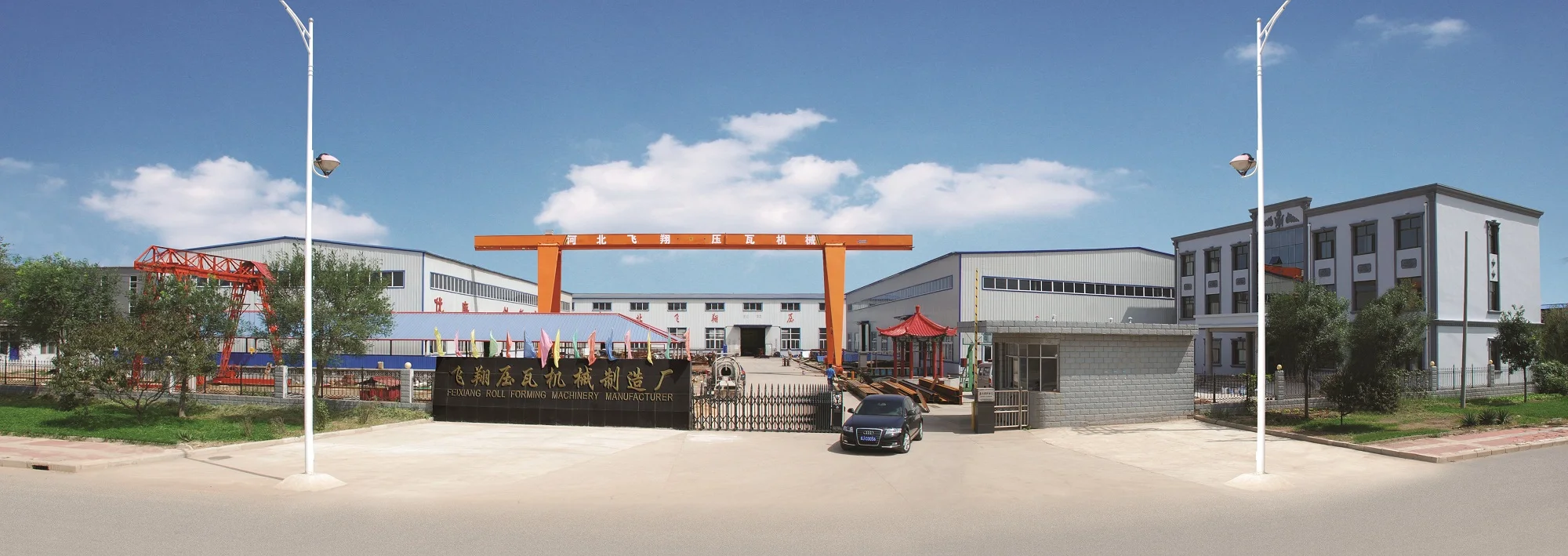

Company Introduction

Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.
Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.
In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.
The company marketed overseas its first roll forming machine in 2006 and  established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipments .
They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.
The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents.  Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .

Our Strength

Four technicans on the roll forming machine filed over 20 years.2.60 expericend workers for machine assemble and make them qualified.
Three engineer who know English for foreign installment and debugging.
20 professional sales person for longlife customer's service.

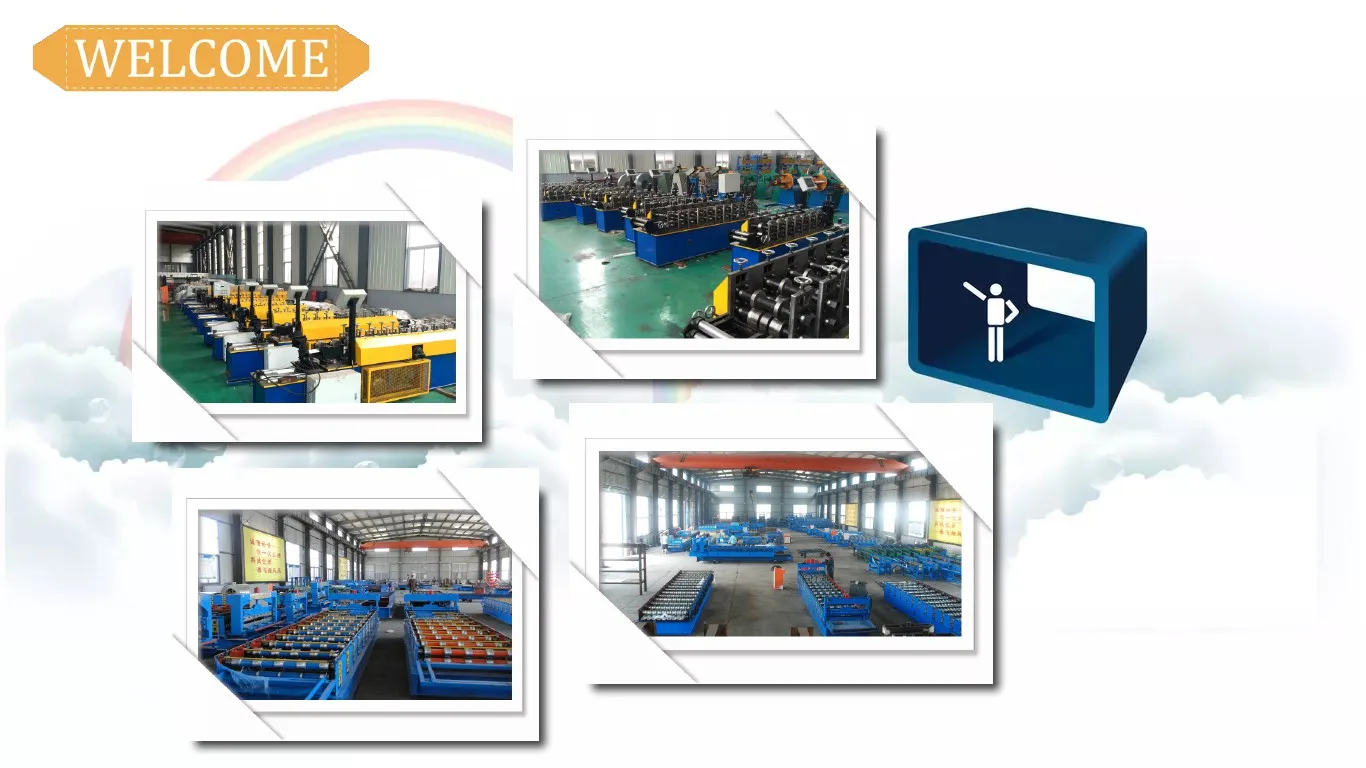

More than 30 sets of grinders, milling machines and various high-precision CNC machines for raw material treatment and good machine design.
Highly-experienced assembly operators which underline our strong production capability helps for high-class machine together.

FAQ

Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms like L/C are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 24 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
       2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
