DPP-250Z Automatic Alu-Alu/Alu-PVC Blister Packing Machine for capsule /tablet
Manufacturing & Processing Machinery
MOQ:1 Piece(s)
Payment Method :
Keywords:Aluminum plastic Packing Machine Automatic packaging machine Blister Packaging Machine tablet
| Product Category: | Manufacturing & Processing Machinery > | Trademark: | LEADTOP |
| Product Package: | wooden box | Specifications: | Customizable |
| Place of Origin: | Zhejiang, China | Port: | Shanghai |
Quotation Sheet:
Quote Subject: DPP-250Z Automatic Alu-Alu/Alu-PVC Blister Packing Machine for capsule /tablet
Item | Description of the goods | Quantity | Unit Price | Total Amount FOB Ningbo | Remark |
1 | DPP-250Z Automatic Alu-PVC Blister Packing Machine for capsule/tablet | 1 Set | USD25,000 | USD25,000 | Include: 1.PLC Touch Screen control system.(Siemens) 2.Total include l set of Alu-pvc mould, feeder 3. With full safety glass Cover. 4.Servo motor control system(Siemens) 5. Printing registration controller(Sick) 6.Emergency Stop function: when an Emergency Stop is pressed the machine stops safely and can only be restarted by resetting the machine controls. 7. All material contact parts are in S.S. 316 L , The main body of the machine is fabricated out of SS 304 . 8.The printing serial number is by steel character
|
Optional parts: | |||||
1 | full set Alu-PVC mould and AL guider and rejection parts | 1 Set | USD3,600. | USD3,600 | include forming ,sealing,batch and cutting mould |
2 | full set Alu-Alu mould and AL guider and rejection parts ,with 1 set of ALU-ALU Feeder | 1 Set | USD7,000 | USD7,000 | include forming ,sealing,batch and cutting mould |
3 | Alu-PVC camera vision inspection system and rejection system (P 4 1.3 USA BANNER brand ) | 1Set | USD11,800 | USD11,800 | |
4 | One set water Chiller 1.5P | 1Set | USD1,900 | USD1,900 | |
Ⅰ Note: The validity of this quotation is 90 days
Ⅱ Delivery 45 working days after receiving 30% deposit.
Ⅲ Payment 30% by T/T in advance to start manufacture,rest 70% before shipment.
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 100 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
DPP-250Z Automatic Blister Packing Machine for capsule /tablet

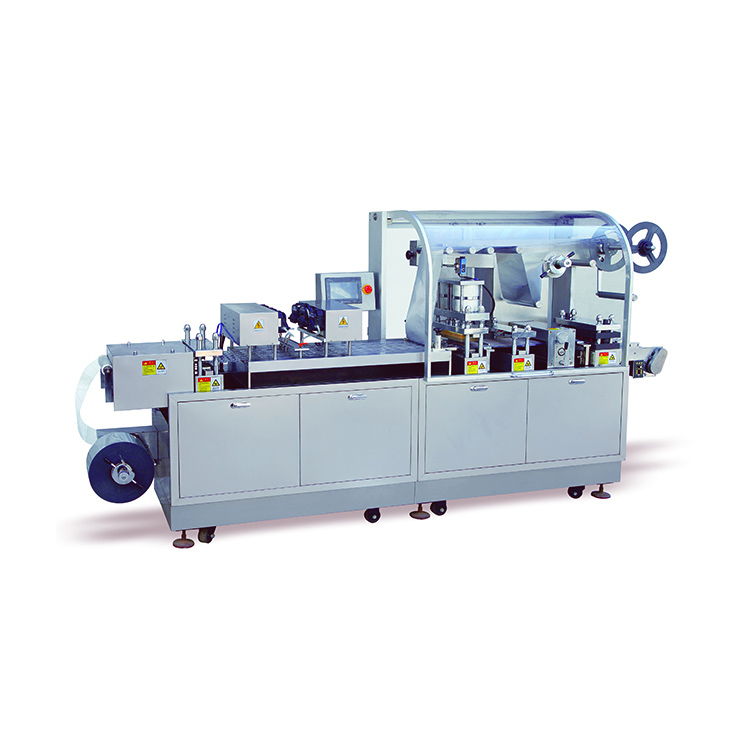

Machine picture:
Main technical parameters:
1) Punch frequency: 20-40 cut/min （For Alu-PVC）
2) Max. Forming area and depth: 255 x 145 x 12mm
3) Adjustable range of stroke: 30 - 145mm
4) Air compressor: ≥0.22m3/min (self -prepared)
5) Power: 5.5kW, AC 380V or 220V
6) Rated frequency: 50Hz/60Hz
7) Air pressure:0.6-0.7Mpa
8) Dimensions: 4200 x 650 x 1650mm
9) Weight: 1,500kg
Machine General layout :
Description:
1. This machine adopts intelligent driver and PLC Human Computer Interface.(PLC SEMENS)
PLC
PLC TOUCH SCREEN
1.1 Strock can be adjustable (servo motor driver control): On the required changes to blister specifications, not to add or replace parts, use of servo motor drive control, its traction strok by the 60-145MM distance adjustable, smooth and accurate implementation of the blister specifications replacement.
With servo-motor traction(Siemens)
1.2 Mould insert position device: change mould more accurate and facility.
1.3 Main device: Forming, sealing ,batch ,Pressing,strock,cutting and each main parts all installed above on machine plane ,more facility for operation.
1.4 Cylinder sealing: adopts pressure boost sealing make the blister net-veined more clear and with well sealing,while protecting the life of the cam.
The temperature can be adjust,the base temperature is 165 degrees centigrade.
Adjustable Frequency.
Automatic feeder:
Adopts vibration rail feeder ,suitable for special tablet Alu-Alu Packing.
After sealing with water cooling system, adopts water chiller to circle cooling.
Station can be adjustable: forming ,batch ,pressing,cutting ,sealing can be adjust by hand wheel and show the figure ,and the sealing mould as the base point.
Forming,batch,cutting mould can be adjust easily.
1.5Full half Safety cover(front and back) : adopt aluminium alloy and organic glass as material.
The front safety cover 's safety switch
The back safety cover 's safety switch
1.6 Pre Alarm function:
Pre alarm for Alu(PVC) foil end and PVC film end,it will show on PLC and remind operator to change material.And with Alu(PVC) fast change device.(with 2 PVC/ALU loading device)
Alarm Function
Machine with alarm light(red color and green color),can show the machine working state,when machine on normal working,shine green light.When safety cover open ,Alu foil and PVC end, air pressure is too low it will shine red light and machine stop.
2.0 Emergency Stop: On Machine front ,middle and end all installed with emergency switch(red color).
2.1 Machine Conform to GMP standard and with CE .
Option :Banner camera vision system
DPP-250Z blister acking Machine Main electric parts list:
No. | Description of goods | Type and specification | Manufacturer | Quantity |
1 | PLC screen | TP177A |
Siemens | 1 |
2 | Programmable controller | CPU224-S7 | 1 | |
3 | Expand the module
| EM222 | 2 | |
4 | Temperature module
| EM231 | 1 | |
5 | PLC Screen cabinet | DESTECH | DESTECH | 1 |
6 | Solid relay
| 220D25 | longlive
| 3 |
7 | Transducer | 3G3JV A4015 |
Omron | 1 |
8 | Small-scale relay
| MY2NJ | 10 | |
9 | Proximity Switch | TL-Q5MCI | 6 | |
10 | electrical source switch | S24-50 | Omron | 2 |
11 | Photocell control | VTF18-4N1212 | SICK | 1 |
12 | Electromagnetic valve | SY5120-5D-01 |
SMC | 8 |
13 | Air filter valve | AW3D-03DDG | 1 | |
14 | Motor | Y90L-6 1.5KW | Siemens
| 1 |
15 | Servo-motor | HF-KE43JWE-S100 | Mitsubishi | 1 |
16 | Servo-motor | 1FL4 033-0AF21 | Siemens
| 1 |
17 | Servo driver | MR-E-40A-KH003 | Mitsubishi | 1 |
18 | Servo driver | 6SL3 210-5CB12-0AA0 | Siemens
| 1 |
19 | Coder | E6A2-CW5C 360P/R | Omron | 1 |
20 | Air switch | 5SJ63C203P |
Siemens
| 1 |
21 | Air switch | 5SJ63C103P | 1 | |
22 | Air switch | 5SJ63C101P | 3 | |
23 | Air switch | 5SJ63C61P | 2 | |
24 | Camera | P 4 1.3 | America Banner | 1(option) |
