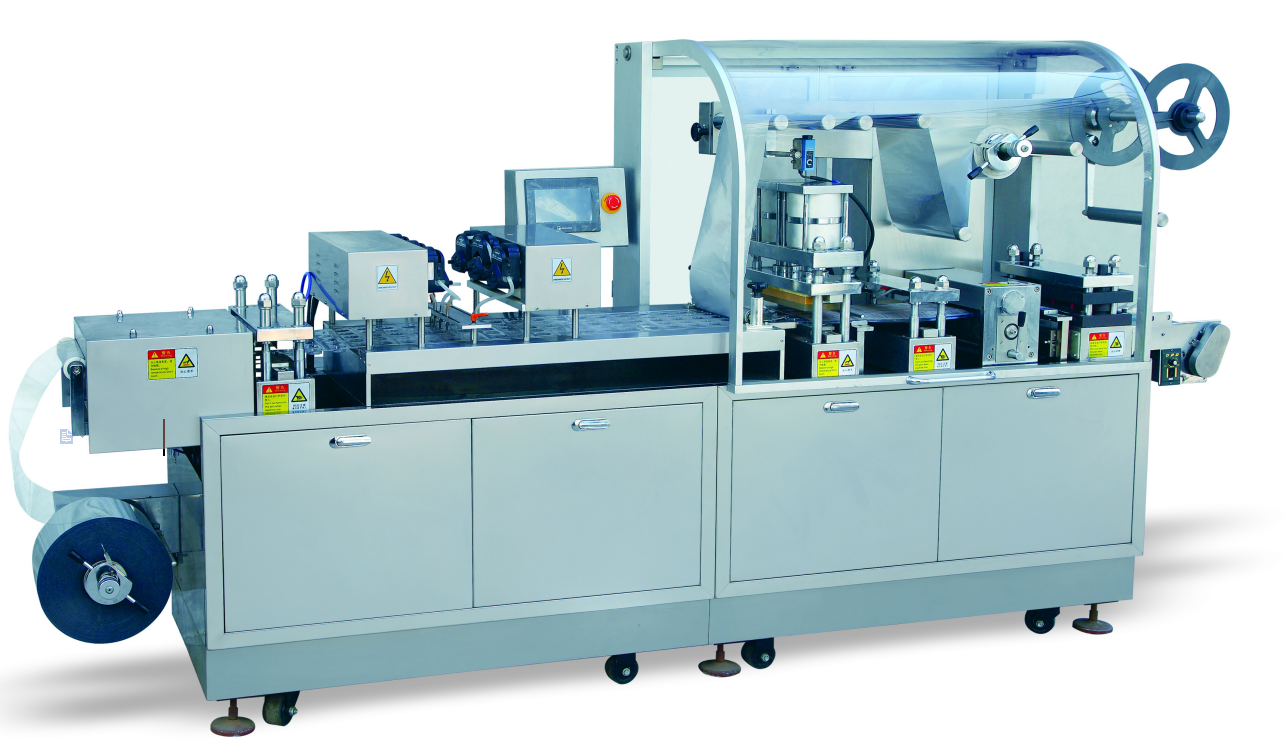

DPP-320A automatic aluminum-plastic blister packaging machine
Manufacturing & Processing Machinery
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:Packing Machine Automatic packaging machine Blister Packaging Machine Aluminum plastic
| Product Category: | Manufacturing & Processing Machinery > | Trademark: | LEADTOP |
| Product Package: | wooden box | Specifications: | Customizable |
| Place of Origin: | Zhejiang, China | Port: | Shanghai |
Quotation Sheet:
Quote Subject: DPP-320A Automatic Liquid Blister Packing Machine
Item | Description of the goods | Quantity | Unit Price | Total Amount FOB Ningbo | Remark |
1 | DPP-320A Automatic Liquid Blister Packing Machine | 1 Set | USD29,500.00 | USD29,500.00 | Include: 1. One set of Plastic-Aluminum mould 2. Three sets of filling pump and nozzles 3. Whole body stainless steel 304 |
Optional parts: | |||||
1 | Alu-PVC mould | 1 Set | USD2,400.00 | USD2,400.00 | |
2 | Alu-Alu mould | 1 Set | USD3,000.00 | USD3,000.00 | |
3 | Plexi-glass cover | 1 Set | USD1,800.00 | USD1,800.00 | |
4 | 50L Electronic Heating stirred tank | 1 Set | USD3,000.00 | USD3,000.00 | |
Ⅰ Note: The validity of this quotation is 60 days
Ⅱ Delivery 30 working days after receiving 30% deposit.
Ⅲ Payment 30% by T/T in advance, 70% of the total value by T/T before shipment.
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
DPP-320 Automatic Liquid Packing Machine
Simple Introduction:
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.
Main Technical Data:
MODEL: | 320 | |
Blanking frequency (sheets): | 5-25 | |
Sheet's quantity of one blanking (sheets): | 1 | |
Capacity (blisters/min): | 10-100 | |
Adjustable scope of feed travel: (mm) | 10-160 | |
Max Forming depth (mm) PVC: | 340×120×25 | |
Wrapper specification (mm): | PVC | 340× (0.15-0.5) mm |
Aluminum film | 340× (0.02-0.035) mm | |
Capacity of air compressor(m3/min): | ≥0.36 | |
Power supply (KW): | 380V AC, 50 Hz, Three Phase (Depend on your requirement.) | |
Weight (kg): | 2100Kg | |
Feature:
Travel scope can be adjusted.
Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
The material is fed automatically. The mould and feeder can be designed as user’s requirements.
Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
Stepping motor drives and tow materials.
The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Mechanical Part:
The advanced machine has been equipped Four Adjusting wheel in every mould Position. And the Main Motor has been equipped Stop Machine. It means you can not only use PLC and Step Motor for adjusting running length, but also using Mechanical part for adjusting.
The improvement of 250/140 Blister Packing Machine
Original 250/140 (140/250/320)
Improved 250/140 （DPP-250A/140A/320A）
Table of Comparison between Old and New
No. | Improved DPP-250/320 | Original (other type) |
1 | The machine will stop automatically when material is exhausted.. | Same |
2 | Each operation post is equipped trimmer hand wheel. | There were only two. |
3 | There are hold-down nuts for each operation post avoiding the pre-adjustment removed. | There were only two |
4 | Previous code disc is replaced by new encoder, which will control the air supply of blistering， cooling and towing length of step-motor.（There are 360 pulses which control this function）. | Previous code disc controls the air supply of blistering of pneumatic clip by 360 orifices. If code disc moves slightly, the pneumatic clip will become unstable. |
5 | The heating mould will be hoisted by cylinder if operation is stopped so as to avoid PVC film burned. | The heating mould will not be hoisted if operation is stop and PVC film will be easily burned. |
6 | There is PLC interface which controls all the functions and operations of the machine. | No |
7 | Photo-electrical matching (register): photocell eye will follow the color points and feed back the data to the PLC, which controls towing length of step-motor. The accuracy of photocell eye tracking can reach to ±0.02mm. | No |
8 | Step-motor: The exchange of length of medicine board is controlled by the speed of step-motor, which is driven by PLC or operating its touching interface. You can turn off or stop machine at anytime, but the position of packing materials will not move, while the PVC or aluminum foil is forwarding, not matter whether there is air or not. | Pneumatic clip towing：The length of medicine board is adjusted by screw and it will be loose if without air, making the position of PVC and aluminum foil moved. |
9 | Type 74 gear speed reducer 74 with brake will be back to the starting point at any time when machine stops. | Cycloid motor has no brake function so it is instable when machine stops. |
Table of Comparison between Old and New
No. | Improved DPP-250A | Original (other type) |
1 | The machine will stop automatically when material is exhausted.. | Same |
2 | Each operation post is equipped trimmer hand wheel. | There were only two. |
3 | There are hold-down nuts for each operation post avoiding the pre-adjustment removed. | There were only two |
4 | Previous code disc is replaced by new encoder, which will control the air supply of blistering， cooling and towing length of step-motor.（There are 360 pulses which control this function）. | Previous code disc controls the air supply of blistering of pneumatic clip by 360 orifices. If code disc moves slightly, the pneumatic clip will become unstable. |
5 | The heating mould will be hoisted by cylinder if operation is stopped so as to avoid PVC film burned. | The heating mould will not be hoisted if operation is stop and PVC film will be easily burned. |
6 | There is PLC interface which controls all the functions and operations of the machine. | No |
7 | Photo-electrical matching (register): photocell eye will follow the color points and feed back the data to the PLC, which controls towing length of step-motor. The accuracy of photocell eye tracking can reach to ±0.02mm. | No |
8 | Step-motor: The exchange of length of medicine board is controlled by the speed of step-motor, which is driven by PLC or operating its touching interface. You can turn off or stop machine at anytime, but the position of packing materials will not move, while the PVC or aluminum foil is forwarding, not matter whether there is air or not. | Pneumatic clip towing：The length of medicine board is adjusted by screw and it will be loose if without air, making the position of PVC and aluminum foil moved. |
9 | Type 74 gear speed reducer 74 with brake will be back to the starting point at any time when machine stops. | Cycloid motor has no brake function so it is instable when machine stops. |
Machine Consist:
Plastic Preheating and unwind: (1) and (2)
When the machine run out of Plastic, it will stop automatically
Plastic Blister Forming Station: (3) and (4)
We use ENCODER for forming, different from other’s cam for forming, cam will be broken when you run it too much time and fast. Mechanical is not always firm enough, So we change Electronic to control the Pneumatic, so this is the real PLC Control one brain machine, easy to adjust.
Liquid Feeder（5）:
Touch Screen: (6)
Touch Screen brand can be required by customer. And we can make the operation system into Spanish language for free if it is necessary for you.
Aluminum and Plastic Sealing Station: (7) and (8)
Step Motor for towing material: (9) and (10)
Firstly, Step Motor for towing machine make the machine to adjust the mould easier. Secondly, Never adjust the pulling length by rod (mechanical is not accuracy). Thirdly, the material will never waste when you restart the machine or stop the machine at any time. As we know Material is more expensive than machine itself running in one year.
Aluminum Plastic Blister Cutting Station: (11) and (12)
The machine can cut 55times in one minute.
Electronic Box: (15)
The Electronic parts can be required by customer
Color Point Sensor: (16)
It means the machine can runwith length or run with the sensor.This is for Aluminum PrintingRegister Control.
Samples:
Work shop:
Other Useful Information for Blister Packing Machine
Nowadays material for packing and time for working are expensive. The machine runs one hour it will take almost a rolling PVC and one third rolling Aluminum Foil. It means for Standard Blister Sheet(80*57mm), you have cost 0.01(price for one plate)* 4(one cut for 4 plate)*15-50(one minute for 15-50 cuttings)*60(one hour)=36-120RMB/hour. When you start the machine in the morning, 30minutes for heating the machine (you need pay salary in this time), If the material has been moved becaues of loosed pneumatic clip and stoped urgency yesterday, you need to adjust again. So the cost will be waste.
A blister Packing machine you can use for at least five years, But the waste of material you can buy another two or three new machines. This was their seriouse problem for pharmaceutical factory using other type machines. But now I really thanks for the wonderful suggestion that we have improved the machine in Step Motor and Stop Machine Green and Save Type Blister Packer.
Normally Questions from Customers about Blister Packing Machine:
Q: What is difference between PLC Control and Real PLC Control?
A: PLC means programmable logic control. Such as, Blister packing machine, PLC Control change the old period in Blister Packing area. Nowadays, there are two PLC Control. One it is only used for controlling the touch screen, but when you adjust the traveling scope you need to adjust the mechanical wheel. Another is our Type, you can say PLC is my machine’s heart, you can enter everything into it to make the machine running.
Q: How to change mould (Changing Parts)?
A: Nowadays we have improved our Mould changing parts, there is a groove and screw on the mould. If you want to change into different packing you can unscrew it then change. We call it convenient type mould. And we also get a video for changing mould.
Q: When the machine stops, the mould is still hot; will it heat PVC and destroy Aluminum?
A: Our Forming Mould and Sealing mould will be separated automatically when the machine stops. It is special for protecting the unused material on the machine.
Q: The machine always run automatically, but when it runs in a wrong length, what should we do?
A: According to this problem, we use a Camera Cell for registering the Color Point on Aluminum foil. When the machine run in a wrong length it will be found by Cameral Cell, then give a single to PLC, PLC will feedback to Step Motor, at last step motor will run in a right length to save material and time.
Q: If the machine broken in a problem we can’t work out, what should I do?
A: At first, we have will send a video how to solve.
Second, We have six Technicians get Passport ready to travel around the world to adjust the machine for our customers.
