Cast Iron Formwork Two Wing Anchor Nut 15/17mm
MOQ:1000 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram
Keywords:Cast Iron Formwork Anchor Nut 15/17mm
| Product Category: | Construction & Decoration > | Trademark: | |
| Product Package: | WOODEN CASE | Specifications: | 80 90 100 |
| Place of Origin: | CHINA | Port: | TIANJIN |
COMPANY INTRODUCTION
Cangzhou Doushan Machinery Manufacture Co.,Ltd offer a economical and reliable solution where threaded joints with nuts or couplers are used in the reinforced concrete and tying applications. Our products range from wing nuts, water stops, hex nuts, couplers, and washers/plates to tie rods, all for the nominal thread diameter 15mm (DG 15/17), 20mm(DG20/22), other sizes of thread available on request.
PRODUCTION DESCRIPTION
| Commodity name | Wing Nut for tie rod 0.70kg 0.65kg 0.75kg 0.88kg 0.25kg |
| Usage | for 15/17mm 20mm tie rod OEM is OK |
| Origin | China Mainland |
| Process | ductile iron |
| Surface | zinc coated |
| M.O.Q | 500PCS |
| Packing | suitable for sea transportation |
| Delivery time | 15-25 days after order confirmation |
| Payment term | T/T, L/C, Western Union |
| Business type | Manufacturer and exporter |
| Certifications | SGS,EN74, ISO9001:2008 |
| Advantage | 1.High Quality 2.Professional service 3.Competitive price |
| Notes | Special marks can be made according to customers requirements; |
| It is available to produce by customer drawing. | |
| Main products | Aluminum Formwork Panel ,Wedge&pin ,Steel prop for scaffolding &Formwork ,Wing Nut for tie rod ,Formwork wall tie ,and PVC Sleeve . |
| Item | Size (mm) | Weight(Kg) | Tensile Strength(MPa) | ||
| Anchor Nut (3 Wings) | ?100 20/10 | 0.73 | 500 | ||
| Anchor Nut (2 Wings) | ?100 17/10 | 0.59 | 500 | ||
| Anchor Nut (2 Wings) | ?90 17/10 | 0.6 | 500 | ||
| Anchor Nut (2 Wings) | ?80 17/10 | 0.43 | 500 | ||
| Climbing Cone | 20/10 | 0.71 | 500 | ||
| Climbing Cone | 17/10 | 0.47 | 500 | ||
| Wing Nut | 20/10 | 0.62 | 500 | ||
| Wing Nut | 17/10 | 0.32 | 500 | ||
| Top Cup | ?80 | 0.49 | 500 | ||
| Swivel Nut | 20/10 | 1.15 | 500 | ||

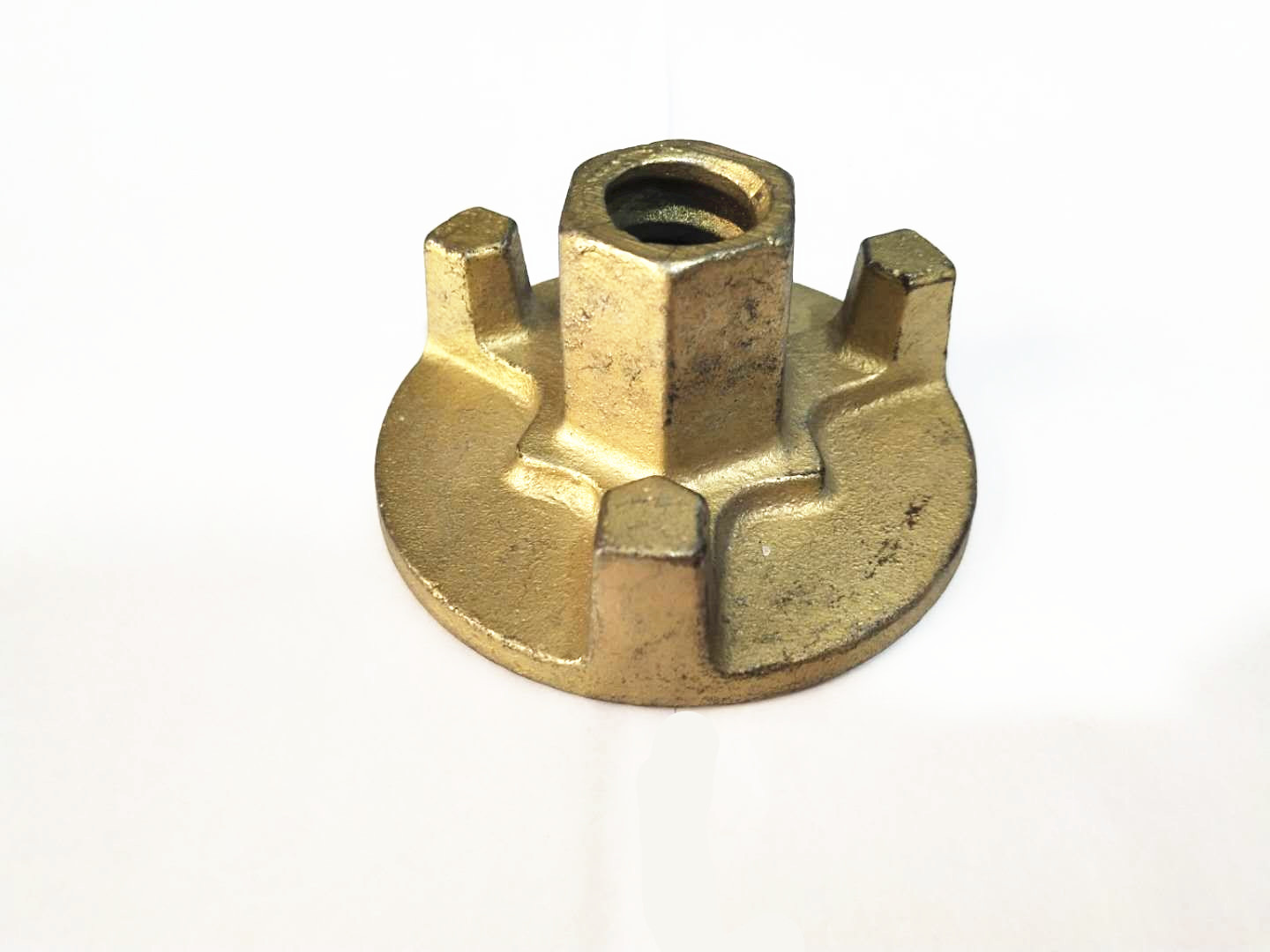

Anchor Nut in Cast Iron is made by high strength steel grade material.Anchor Nut can be in 2 wings, 3 wings and 4 wings, in different types and shape customized.Anchor Nut is used as clamp nut connect normally steel tie rod and tie bars in concrete form work and shuttering work that as connector joint clamp in fixing concrete formwork system of wall formwork, slab formwork, column formwork, beam formwork, floor formwork, and table formwork.
Anchor Nuts are specially designed to provide strong and vibration proof threads in thin walled materials and can be quickly and easily be fitted
The Screw Jack Base head is used at the top of the cup lock standard (Vertical) to provide an additional maximum adjustment of length up to 300 - 600 mm. It is designed to be used in conjunction with adjustable system scaffolding.
Our Jack Nut made of iron casting used to adjust the working heights.
This mobile Top Cups made out of malleable casting provide firm grip to Ledger Blades making the connection rigid and to endure rough site handling. It is free on the cup lock vertical to ensure providing a safe connection at any direction for the horizontal ledger attachment.
Specification:
*Made from cast iron.
*Top Cup is available for the pipe of 48.3mm OD and in 3lugs and 4lugs.
*Weight : 0.57 KG
PACKAGE AND SHIPMENT
FAQ:
1): Q: Do you supply OEM Service or Customized-made Formwork accessories products?
A Yes, we do. Actually, we have cooperated with many famous PT Supplier in whole world.Just send us your drawings when need to be customized.
2) Q: Do you provide free samples?
A: Yes, sure, we provide free samples for your testing.
3) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).
4) What is your Minimum Order?
A: MOQ: 100 pieces.
5) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.
6) Q: How to transport the goods:
A: by shipping, air flight, express.
