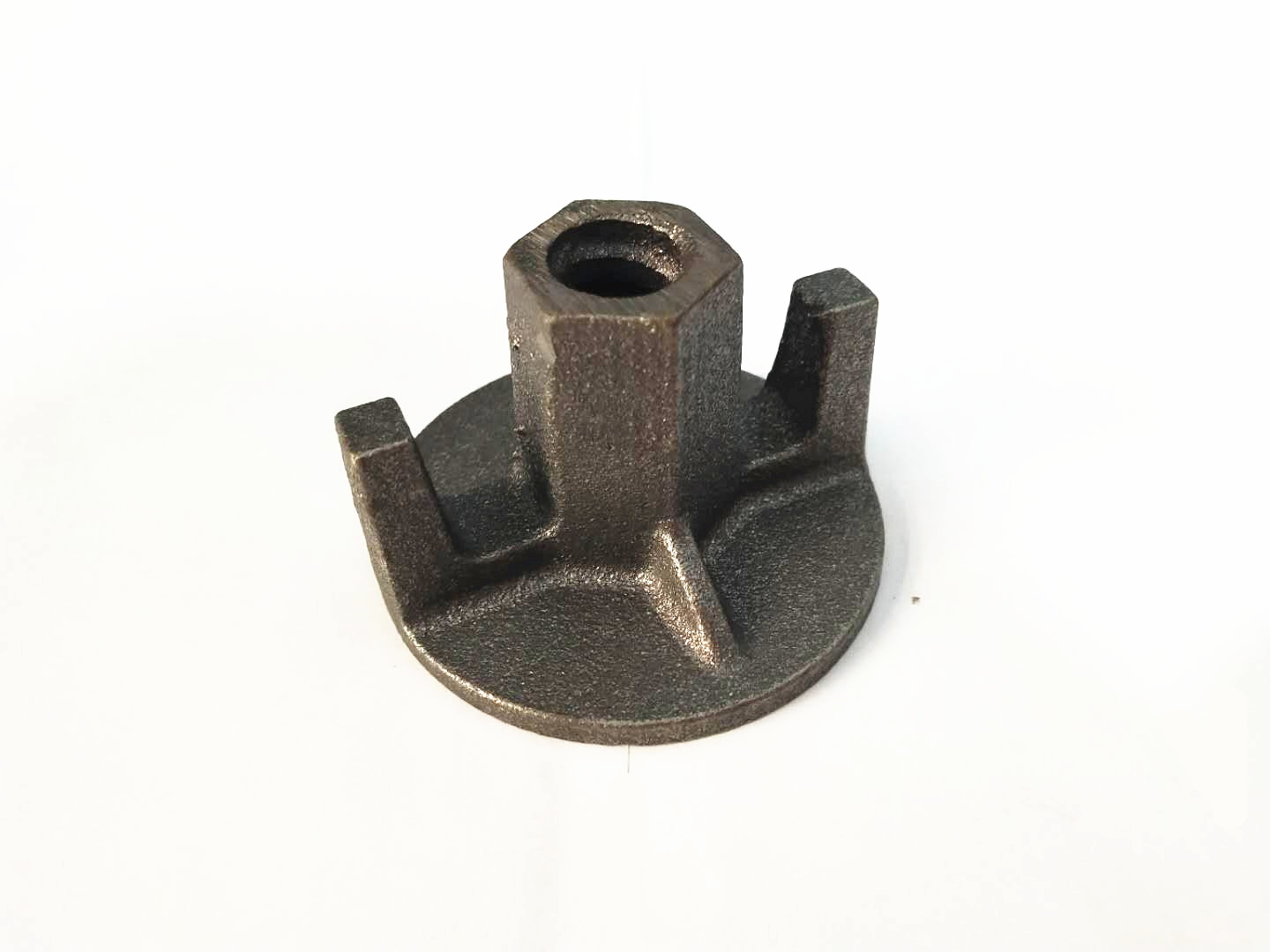

Formwork Ductile Iron Casted Three Wing Nut Anchor Nut with Tie Rods
Construction & Decoration Building Structural Material
MOQ:2000 Piece(s)
Payment Method :
Keywords:Formwork Ductile Iron Wing Nut Anchor Nut Tie Rods
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | |
| Product Package: | WOODEN CASE | Specifications: | 80 90 100 |
| Place of Origin: | CHINA | Port: | TIANJIN |
Cangzhou Doushan Machinery Manufacture Co.,Ltd was founded in 2013,which is one of the earliest casting factories in China.our factory produces casting-iron compressor parts,elevator components,deceleration machine parts,engineering machinery parts,valves parts,fire pump column series components,construction products,casting pipe,electric products and so on. annual turnover is more than 10 million dollars.
Cangzhou Doushan Machinery Manufacture Co.,Ltd offer a economical and reliable solution where threaded joints with nuts or couplers are used in the reinforced concrete and tying applications. Our products range from wing nuts, water stops, hex nuts, couplers, and washers/plates to tie rods, all for the nominal thread diameter 15mm (DG 15/17), 20mm(DG20/22), other sizes of thread available on request.
The management of Doushan factory uses the Japanese 5S management and TPM management,and passed the ISO9001(2000) and ISO/TS 16949 quality management.now we are going to make the certification of CE & EN certificate.
| Item | Size(mm) | Weight(KG) | Tensile Strength (Mpa) |
| Anchor Nut(3 wings) | ?100 10/20 | 0.7kg | 500 |
| Anchor Nut(2 wings) | ?100 17/10 | 0.56kg | 500 |
| Anchor Nut(2 wings) | ?90 17/10 | 0.57kg | 500 |
| Anchor Nut(2 wings) | ?80 17/10 | 0.4kg | 500 |
| Anchor Nut(2 wings) | ?80 17/10 | 0.4kg | 500 |
| Combined Swivel Nut | ?120 20/10 | 1.5kg | 500 |
| Wing Nut | 10/17 | 0.59kg | 500 |
| 10/20 | 0.29kg | 500 | |
| Screw Base Nut | (60) 48/6.35 | 0.54kg | 500 |
| (48/60) 35/6.35 | 0.37kg | 500 | |
| (48/60) 38/6.35 | 0.37kg | 500 | |
| (48/60) 35/8 | 0.37kg | 500 | |
| (60) 40/6.35 | 0.44kg | 500 | |
| (48) 35/6.35 | 0.47kg | 500 | |
| 28/6.35 | 0.24kg | 500 | |
| Steel Prop Nut | 60/6.35 | 0.27kg | 500 |
| 60/6.35 | 0.48kg | 500 | |
| 60/6.35 | 0.77kg | 500 | |
| Climbing Cone | 10/20 | 0.68kg | 500 |
| 17/10 | 0.44kg | 500 |
product feature:
1.High tensile strength ,high-strength wear resistance, durable.
2.The excellent product selection of material ,they are widely used and can be produced according to orders.
3.high precision,strong anti-corrosion property.
4.High and low temperature resistant, full specifications to meet the needs of different users.
5.Free sample---Good free sample are available here
6.Competitive price---Direct supplier makes the price very competitive.
7.Great after-sale service--No worries about all after-sale problems because we will find the best way to solve it.
Quality Control
Quality control is one of the most important process in production. we insist that 100% inspection before shipment and ensure parts without any flaws when sending out.
