1A, 400V Silicon Rectifier Diode 1n4004(Copy)

CHANGZHOU SHUNYE ELECTRONICS CO.,LTD

Business Type:Manufacturer

Main Products: RectifiersDiodesAutomotive diodePress Fit DiodeBridge rectifierZener diodeswitching diodeschottky diodeTransistorsthree phase bridge

view on mobile

1A, 400V Silicon Rectifier Diode 1n4004(Copy)

Auto,Parts & Accessories Car Electronics

FOB Price:US$ 0.00 / Piece(s)

MOQ:10 Piece(s)

Payment Method : T/T Western Union Paypal

Keywords:1N4004 1N4007 1N5408 1N5404 S1M M7 S1G S1M.

Inquire

Add to Favorites

Product Category:	Auto,Parts & Accessories > Car Electronics	Trademark:	SY
Product Package:	T/P	Specifications:	DO-41
Place of Origin:	SHANGHAI	Port:	SHANGHAI

1A,400V-SILICON RECTIFIER-1N4004
THREE LEAD DIA:0.55MM, 0.6MM AND 0.7MM.

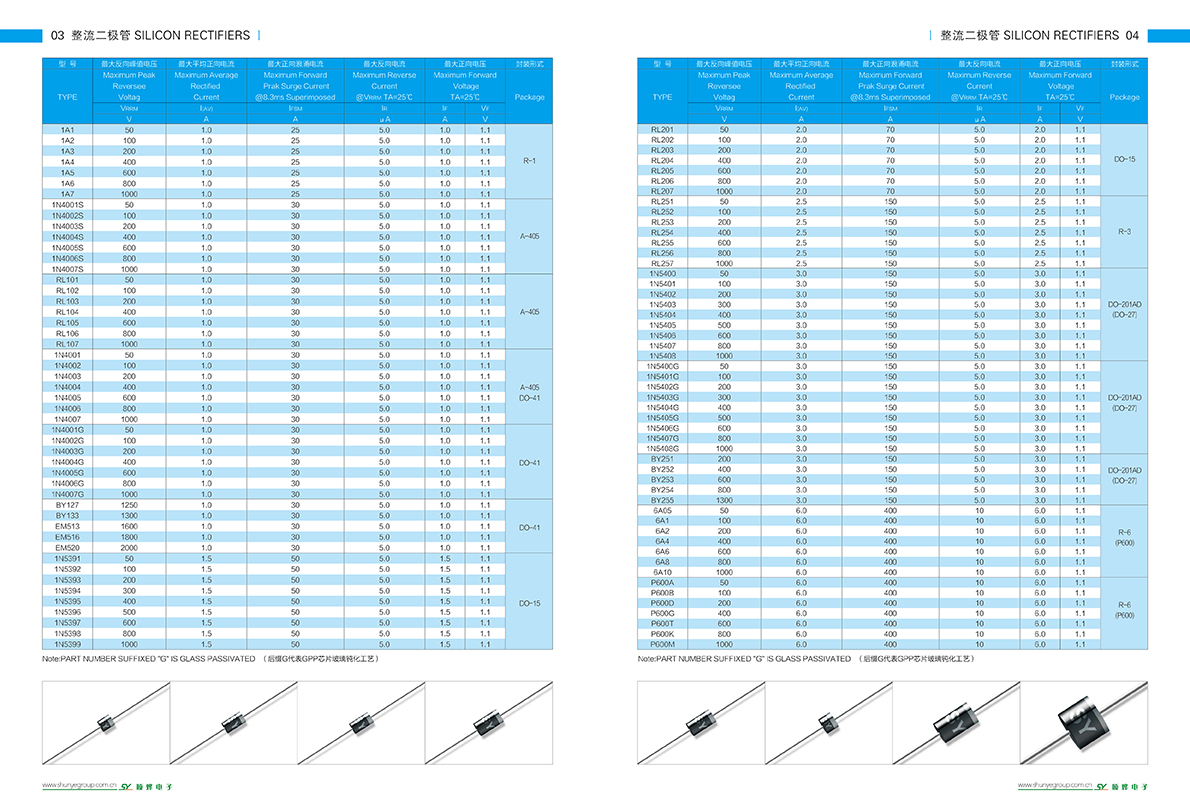

1.Datasheet:

2.Products list:

SILICON RECTIFIERS
TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25oC	TA=25oC
	VRRM	I(AV)	IFSM	IR	IF	VF
	V	A	A	μA	A	V
1A1	50	1.0	25	5.0	1.0	1.1	R-1
1A2	100	1.0	25	5.0	1.0	1.1
1A3	200	1.0	25	5.0	1.0	1.1
1A4	400	1.0	25	5.0	1.0	1.1
1A5	600	1.0	25	5.0	1.0	1.1
1A6	800	1.0	25	5.0	1.0	1.1
1A7	1000	1.0	25	5.0	1.0	1.1
1N4001S	50	1.0	30	5.0	1.0	1.1	A-405
1N4002S	100	1.0	30	5.0	1.0	1.1
1N4003S	200	1.0	30	5.0	1.0	1.1
1N4004S	400	1.0	30	5.0	1.0	1.1
1N4005S	600	1.0	30	5.0	1.0	1.1
1N4006S	800	1.0	30	5.0	1.0	1.1
1N4007S	1000	1.0	30	5.0	1.0	1.1
RL101	50	1.0	30	5.0	1.0	1.1	A-405
RL102	100	1.0	30	5.0	1.0	1.1
RL103	200	1.0	30	5.0	1.0	1.1
RL104	400	1.0	30	5.0	1.0	1.1
RL105	600	1.0	30	5.0	1.0	1.1
RL106	800	1.0	30	5.0	1.0	1.1
RL107	1000	1.0	30	5.0	1.0	1.1
1N4001	50	1.0	30	5.0	1.0	1.1	A-405 DO-41
1N4002	100	1.0	30	5.0	1.0	1.1
1N4003	200	1.0	30	5.0	1.0	1.1
1N4004	400	1.0	30	5.0	1.0	1.1
1N4005	600	1.0	30	5.0	1.0	1.1
1N4006	800	1.0	30	5.0	1.0	1.1
1N4007	1000	1.0	30	5.0	1.0	1.1
1N4001G	50	1.0	30	5.0	1.0	1.1	DO-41
1N4002G	100	1.0	30	5.0	1.0	1.1
1N4003G	200	1.0	30	5.0	1.0	1.1
1N4004G	400	1.0	30	5.0	1.0	1.1
1N4005G	600	1.0	30	5.0	1.0	1.1
1N4006G	800	1.0	30	5.0	1.0	1.1
1N4007G	1000	1.0	30	5.0	1.0	1.1
BY127	1250	1.0	30	5.0	1.0	1.1	DO-41
BY133	1300	1.0	30	5.0	1.0	1.1
EM513	1600	1.0	30	5.0	1.0	1.1
EM516	1800	1.0	30	5.0	1.0	1.1
EM520	2000	1.0	30	5.0	1.0	1.1
1N5391	50	1.5	50	5.0	1.5	1.1	DO-15
1N5392	100	1.5	50	5.0	1.5	1.1
1N5393	200	1.5	50	5.0	1.5	1.1
1N5394	300	1.5	50	5.0	1.5	1.1
1N5395	400	1.5	50	5.0	1.5	1.1
1N5396	500	1.5	50	5.0	1.5	1.1
1N5397	600	1.5	50	5.0	1.5	1.1
1N5398	800	1.5	50	5.0	1.5	1.1
1N5399	1000	1.5	50	5.0	1.5	1.1
TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25oC	TA=25oC
	VRRM	I(AV)	IFSM	IR	IF	VF
	V	A	A	μA	A	V
RL201	50	2.0	70	5.0	2.0	1.1	DO-15
RL202	100	2.0	70	5.0	2.0	1.1
RL203	200	2.0	70	5.0	2.0	1.1
RL204	400	2.0	70	5.0	2.0	1.1
RL205	600	2.0	70	5.0	2.0	1.1
RL206	800	2.0	70	5.0	2.0	1.1
RL207	1000	2.0	70	5.0	2.0	1.1
RL251	50	2.5	150	5.0	2.5	1.1	R-3
RL252	100	2.5	150	5.0	2.5	1.1
RL253	200	2.5	150	5.0	2.5	1.1
RL254	400	2.5	150	5.0	2.5	1.1
RL255	600	2.5	150	5.0	2.5	1.1
RL256	800	2.5	150	5.0	2.5	1.1
RL257	1000	2.5	150	5.0	2.5	1.1
1N5400	50	3.0	150	5.0	3.0	1.1	DO-201AD (DO-27)
1N5401	100	3.0	150	5.0	3.0	1.1
1N5402	200	3.0	150	5.0	3.0	1.1
1N5403	300	3.0	150	5.0	3.0	1.1
1N5404	400	3.0	150	5.0	3.0	1.1
1N5405	500	3.0	150	5.0	3.0	1.1
1N5406	600	3.0	150	5.0	3.0	1.1
1N5407	800	3.0	150	5.0	3.0	1.1
1N5408	1000	3.0	150	5.0	3.0	1.1
1N5400G	50	3.0	150	5.0	3.0	1.1	DO-201AD (DO-27)
1N5401G	100	3.0	150	5.0	3.0	1.1
1N5402G	200	3.0	150	5.0	3.0	1.1
1N5403G	300	3.0	150	5.0	3.0	1.1
1N5404G	400	3.0	150	5.0	3.0	1.1
1N5405G	500	3.0	150	5.0	3.0	1.1
1N5406G	600	3.0	150	5.0	3.0	1.1
1N5407G	800	3.0	150	5.0	3.0	1.1
1N5408G	1000	3.0	150	5.0	3.0	1.1
BY251	200	3.0	150	5.0	3.0	1.1	DO-201AD (DO-27)
BY252	400	3.0	150	5.0	3.0	1.1
BY253	600	3.0	150	5.0	3.0	1.1
BY254	800	3.0	150	5.0	3.0	1.1
BY255	1300	3.0	150	5.0	3.0	1.1
6A05	50	6.0	400	10	6.0	1.1	R-6 (P600)
6A1	100	6.0	400	10	6.0	1.1
6A2	200	6.0	400	10	6.0	1.1
6A4	400	6.0	400	10	6.0	1.1
6A6	600	6.0	400	10	6.0	1.1
6A8	800	6.0	400	10	6.0	1.1
6A10	1000	6.0	400	10	6.0	1.1
P600A	50	6.0	400	10	6.0	1.1	R-6 (P600)
P600B	100	6.0	400	10	6.0	1.1
P600D	200	6.0	400	10	6.0	1.1
P600G	400	6.0	400	10	6.0	1.1
P600T	600	6.0	400	10	6.0	1.1
P600K	800	6.0	400	10	6.0	1.1
P600M	1000	6.0	400	10	6.0	1.1
Note:PART NUMBER SUFFIXED "G" IS GLASS PASSIVATED

3.Package:

4.Reliability Test List:

5.Product Picture:

6.Our Fair:

7.Contact Us:

8. FAQ:

1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to reduce your cost.

2. May I have some samples for testing?

Yes, sure. We offer free samples for you and you only need to cover the international freight for samples. when you have 1st order with us, we will deduct the freight from your first order.

3. What about the delivery ?

Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.

4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.

5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;

We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.

If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.

Contact Name:	Mr. Jeky Xu	Contact Email:	sa****s@shunyegroup.com.cn
Contact Job Title:	Administrator	Contact Mob:	139***158
Contact Tel:	021-34555920	Contact Fax:	021-51062648
Address:	No.195,West Heihai Rd, Xinbei District, Changzhou,Jiangsu	Website:	www.shunyegroup.com.cn

Shunye Enterprise, is a professional manufacturer in diode and bridge rectifier. Over the past years of practices, we always set “excellent quality, competitive price, superior service” as our key managing policy & guide lines for our daily behavior. We provide wide products lines to our customers, including all kinds of rectifier diodes, TVS, small signal diodes, bridge rectifiers and automotive rectifier etc. The major application industries cover automobile, computer, consumer appliances, telecommunication etc. We always take our clients personally, we have a dedicating & proficient management team with good understanding, whose mind is set on continuous quality improvement, effective cost saving & customer satisfaction. Your demand is our top priority, you are welcome to contact us at any time at your convenience for any inquiries or any possible business discussions. Group Members Changzhou Shunye Electronic Co.,Ltd. No.195, West Hehai Rd., Xinbei District, Changzhou, China Shanghai Shunye Import & Export Co.,Ltd. Rm601, Juejin Bulding, No.986, South Hongmei Rd., Shanghai, China Tel: 86-21-34555920 Fax: 86-21-51062648 Shunye International Group Limited. C1-Room 1708 Nan Fung tower, No.173 Des Voeux Road C, Hongkong Tel: 852-21527388 Fax: 852-35719160 Website: http://www.shunyegroup.com.cn
