CN70 Pneumatic Coil Siding Nail Gun

Manufacturing & Processing Machinery Agriculture & Woodworking Machinery

FOB Price:US$ 115.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:CN70 tools coil nailer nail gun

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Agriculture & Woodworking Machinery Trademark: KYA
Product Package: 4pcs/box Specifications: CN70
Place of Origin: JIANGSU Port: NINGBO

Product Overview:

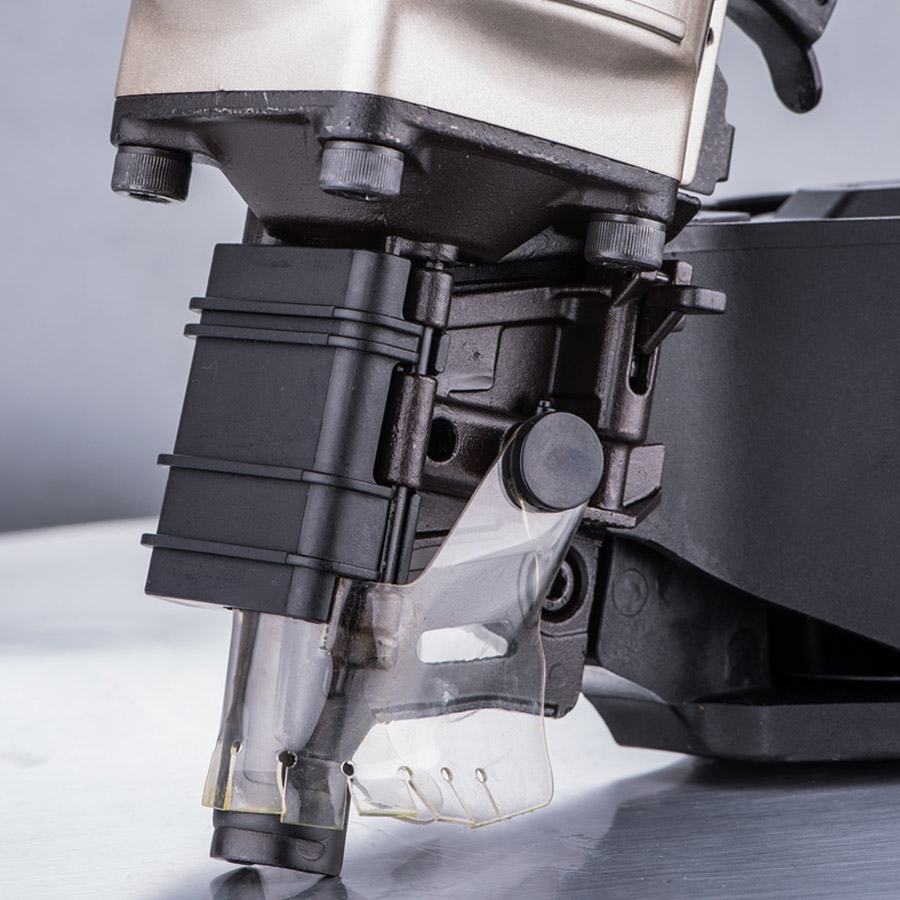

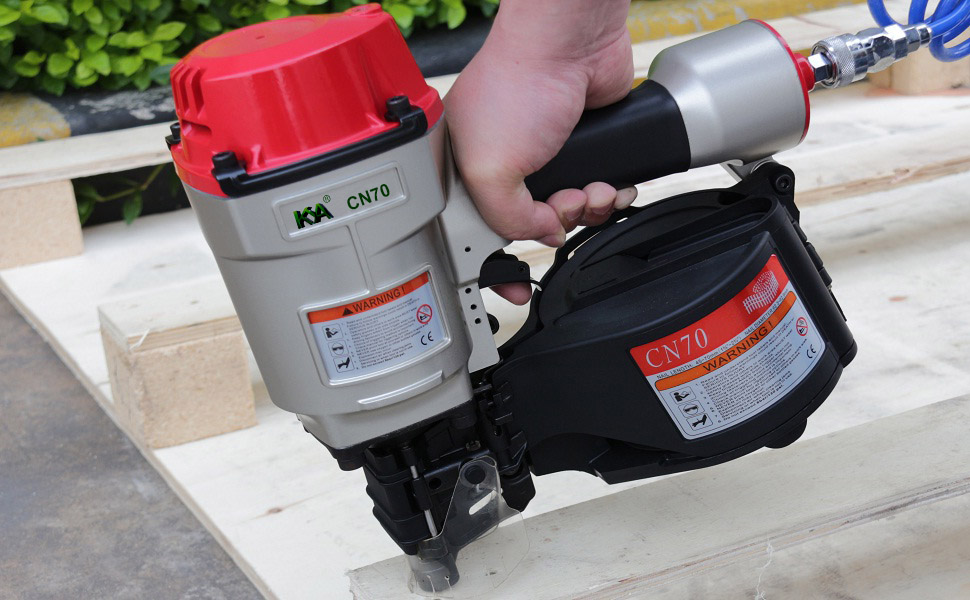

CN70 Pneumatic Coil Siding Nailer

The CN70 is a professional grade pneumatic siding nailer. This nailer is ideal for nailing in large quantities. The fasteners used are 15° wire collated coil nails. The depth of drive guide allows the user to adjust on the site.

● Lightweight aluminum design for added durability

● Adjustable depth guide sets nails to desired depths quickly and conveniently。

● Dial adjustable depth control allows depth adjustment with no special tool.

● Drives 225-300 nails continuously by full-loading.

● Powerful, Rapid Nailing Performance; Ergonomic Design, Well Balanced.

● High durability river and bumper for long life.

● Extra heavy-duty: Die cast aluminum construction.

Similar Tool:MAX CN70 Coil Siding Nailer, Bostitch N70CB Coil Nailer.

Product Description
Model:CN70 Pneumatic Coil Siding Nailer
Air Tool Type:Air Nailer
Tool Diamensions:315mmx128mmx306mm(12-7/16"x5"x12-1/16")
Net Tool Weight:3.67kgs(8.07lbs)
Body Material:Aluminum Body
Operate Pressure:70-120psi(5-8.3bar)
Load Capacity:225-300 Nails
Fasteners Type:15 Degree Flat wire coil nails
Fasteners Head Diameter:0.197"(5.0mm)-0.276"(7.0mm)
Fasteners Shank Diameter:0.091"(2.3mm)-0.113"(2.9mm)
Fasteners Length:1-3/4"(45mm)-2-3/4"(70mm)
Fasteners Shank Type:Smooth,Screw,Ring

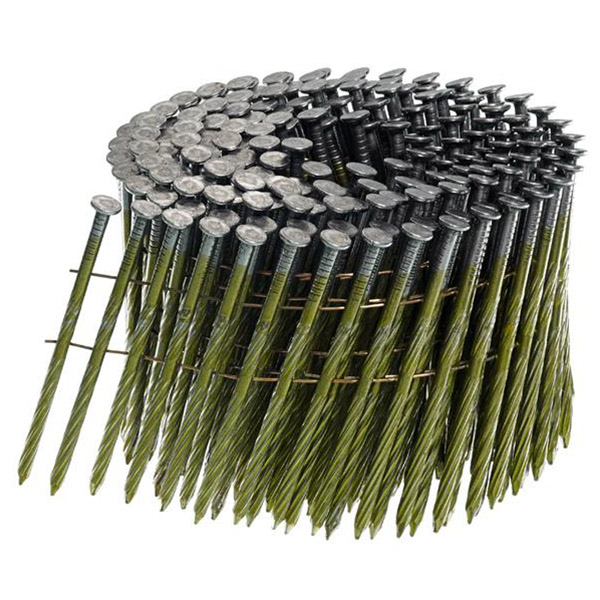

15 Degree Flat wire coil nails

Fasteners Head Diameter:0.197"(5.0mm)-0.276"(7.0mm)

Fasteners Shank Diameter:0.091"(2.3mm)-0.113"(2.9mm)

Fasteners Length:1-3/4"(45mm)-2-3/4"(70mm)

Fasteners Shank Type:Smooth,Screw,Ring

Features

 Powerful and durable aluminum housing.

 Large capacity magazine.

 Heat treated nose with long service life.

 Safety guard prevents nail or small block hurting people wehile nailing.

 Light weight with comfortable rubber grip.

 Most powerful nailing make happy working.

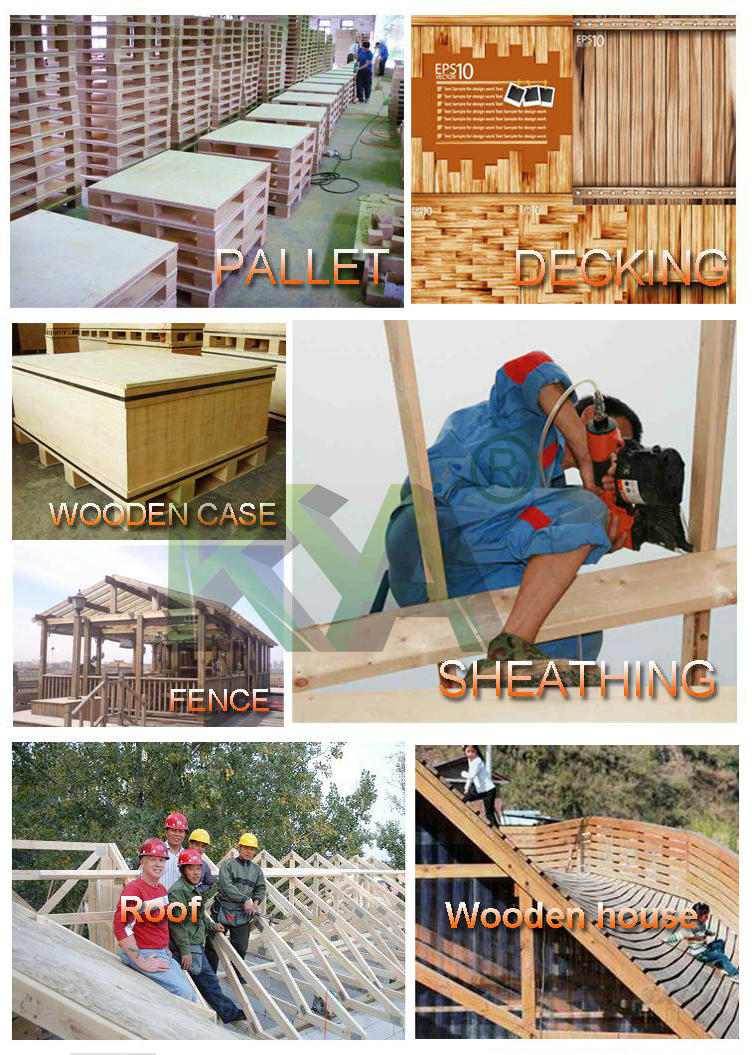

Application

Assembly and repair of pallets,drums,export wooden boxes.

Wooden fencing.

Crating.

General construction applications including:Siding,decking and sheathing.

Framing and cubflooring.

Our Services


No.  SymptomProblemsSolutions
1.1Air Leak Air leak in the cylinder cap when tools don't work 1.Loose head valve piston seal or o-rings .Check and replace the head valve piston set
2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap Check and replace o-ring or cylinder cap gasket under the cylinder cap
1.2Air leak in Trigger area  when tools don't work1.Damaged o-ring in trigger valve Check and replace  o-ring
2.Damaged o-ring in trigger valve stem Check and replace o-ring
3.Dirt in the trigger valveCheck and clean the trigger valve
1.3Air leak in cylinder cap when tools are working 1.Damaged head valve piston o-ringsCheck and replace  o-rings
2.Damaged seal under cylinder cap Check and replace seal
1.4Air leak in nose when tools are working 1.Worn or damaged bumperCheck and replace bumper
2.Loose driver(piston unit) threadCheck and replace driver(piston unit)
1.5Air leak in Trigger area when tools are working1.Worn or damaged trigger valve headCheck and replace trigger valve head
2.Damaged head valve piston o-ringsCheck and replace head valve piston o-rings
2Failed to get driver(piston unit) back to the correct position completely.1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled.Straighten the driver(piston unit)  or verify driver guide(nose) and magazine
2.Worn or damaged nozzle  Check and replace nozzle
3.The space between piston o-ring and  cylinder is too tight.Check if the cylinder is adequate lubrication or replace the o-ring on the piston.
3Work weakly and sluggishly1. Worn or damaged  piston o-ring Check and replace piston o-ring
2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings  Place 2 or 6 drops of oil on o-rings or replace  head valve piston o-rings
3.Dirt in the nozzleCheck and clean the nozzle
4Tool jams frequently1.Damaged or Worn driver (piston unit)Check and replace driver (piston unit)
2.Damaged or Worn driver guide (nose)Check and replace  driver guide (nose)
3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too bigCheck and replace driver guide cover
5Nail can not be shot1. Driver (piston unit) can't return to the correct position.Refer to no. 1  Symptom
2.Driver guide(nose) can not match magazine wellCheck and correct the position between driver guide(nose) and magazine
3.Worn or damaged nail pusher compression spring Check and replace nail pusher compression spring
