Fence Panel Welding Machine Line
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:fence panel machine fence welding machine fence welding machine line fence machine fence making machine fence machine making line fence machine brand fence welding machine price fence welding machine factory fence welding machine supplier
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | Secure-net |
| Product Package: | Main machine with plastic bags Control box and spare parts with wooden box | Specifications: | Wire diameter:2.5-6.0mm Cell size:50-300mm Welding width:2500mm |
| Place of Origin: | Anping,Hengshui,Hebei,China | Port: | Xingang |
Find us:
Marrisa Gao
Hebei Secure-net Fence Facility Co.,Ltd
Phone(whatsapp): +8615632889931
E-mail:marrisa@secure-net.cn
Fence Panel Welding Machine Line insist of :

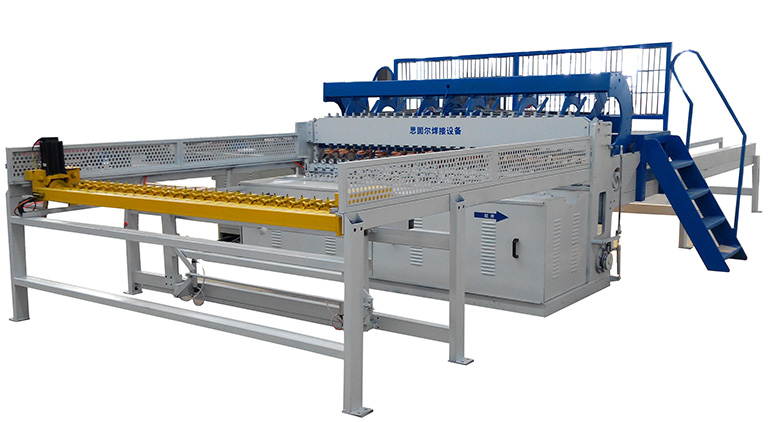

Welded panel mesh welding machine
Wire straightening&cutting machine
Fence panel bending machine
1.This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable
3.The line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the servo motor automatically
4.The cross wire feeding from the hopper automatically
5. The transformer adopts water-cooling system.
6.The water cooling system of electrode is designed, prolong the service time of electrode.
Program |
HWJX1500 |
HWJX2000 |
HWJX2500 | |
|
Wire diameter |
2.5-6.0mm | 2.5-6.0mm | 2.5-6.0mm |
|
Max mesh width | ≤1500 | ≤2000 | ≤2500 |
|
Number of electrodes | 31 | 41 | 48 |
|
Mesh Length | 0.7-6.0m | 0.7-6.0m | 0.7-6.0m |
|
Cross wire spacing | 50-300mm | 50-300mm | 50-300mm |
|
Line wire spacing | 50-300mm | 50-300mm | 50-300mm |
|
Work strokes | 40-60/min | 40-60/min | 40-60/min |
|
Control System | PLC programmable controller | PLC programmable controller | PLC programmable controller |

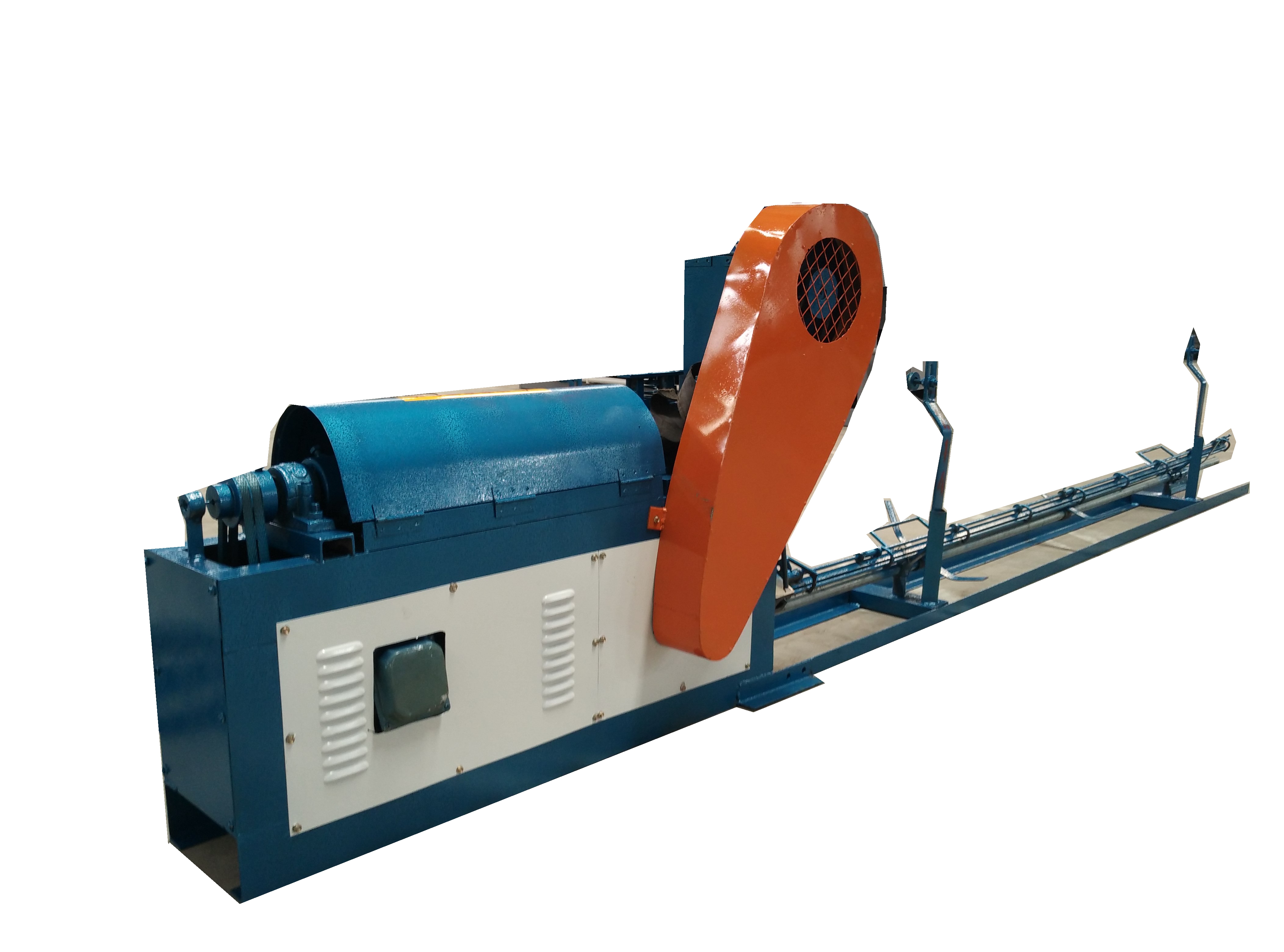

1.Wire straightener and cutting machine can straighten and cut stainless steel wire, aluminum wire, cold-drawing wire and steel wire.
2.This kind of machine wire diameter is from 1.5 to 12mm.
3.The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
4.This machine has many advantages, such as neat cutting mouth, less error and good functions.

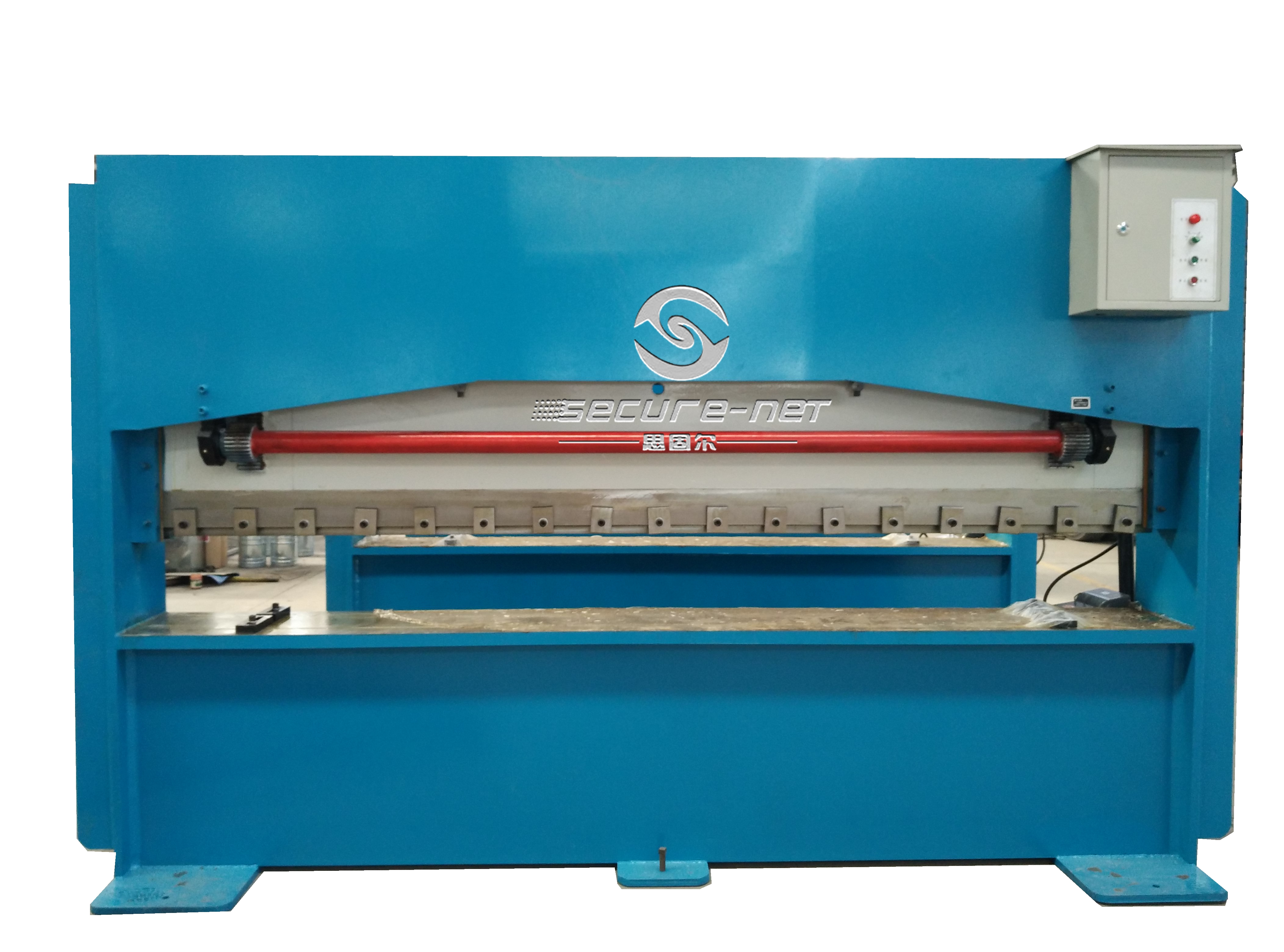

Wire Mesh Fence Curver Bending Machine use for bend the curver on fence pannel.
It also can be bend metal sheet.
