Model: TCBY - 270 - I/II

Type I with hydraulic station, type II without hydraulic station

1 Φ 6.5 hot rolled wire rod, 2 way Φ 6.5 hot rolled wire rod

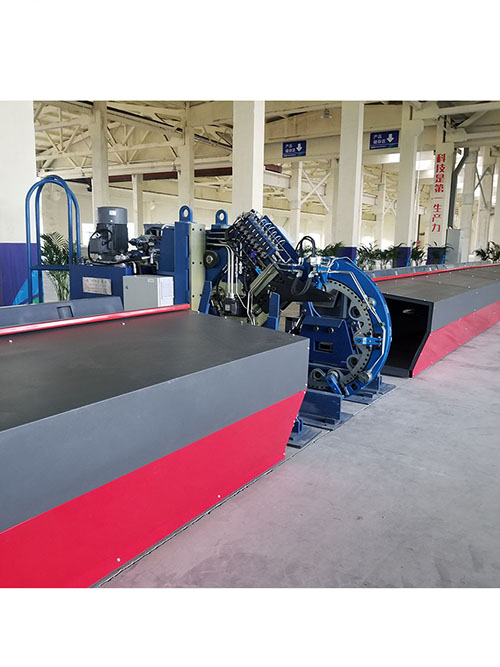

Product Overview: Fully automatic single and double ring steel baling machine is an essential and important equipment for the finishing packaging of steel production line. It is also an integrated high-tech equipment for modern steel production, integrating collecting machine, electricity and liquefaction. Mainly used for automatic strapping and packing of rebar, round steel, profile, bar, nonferrous metal, etc.

Main Features:

★ With the rolling production line interlock communication function, manual and automatic two kinds of operation mode;

★ Main mechanical parts adopt fully open structural form, easy to maintain;

U using common Q195 Φ 6.5 hot rolled wire rod, without going through any processing;

★ Optimized design of key parts and strengthened processing technology, reliable operation of equipment, high life, low cost;

The whole machine is equipped with walking device and track for off-line debugging and maintenance.

Technical parameters:

★ Meet the steel bale standard stipulated by GB2101 national standard;

U is suitable for steel specifications: a. rebar, round steel (Φ 180-500);

B. Section steel (square bales 140*140-350*350);

Taken the bundle of wire materials and specifications: Q195 Φ 6.5 hot rolled wire rod;

★ Packing tension: 12KN;

★ Strapping cycle: 8-15 seconds (depending on the bundle diameter);

★ Total installed capacity: 16KW;

★ Equipment weight: 4000kg;

Off-line maintenance external dimensions: 3200*1080*1620;

Supply voltage: AC380V.
