1. Product introduction

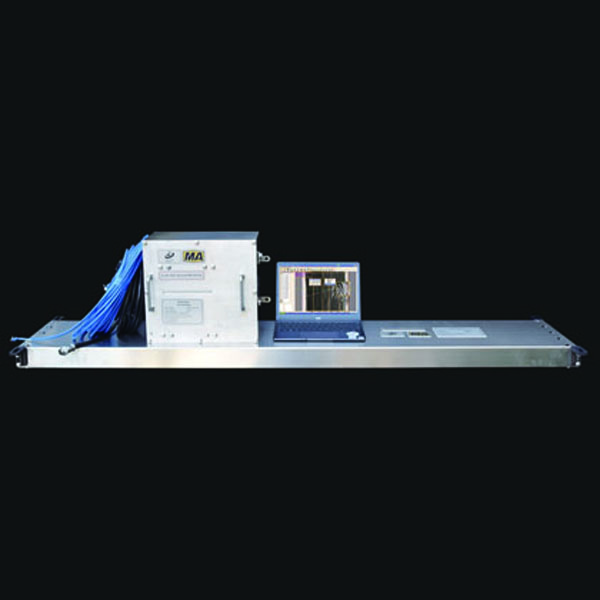

This mobile detector was developed mainly used for those belt service providers who want to detect multiple steel-cord conveyor belts in different lengths and widths with one detector. This mobile fault detector is simpler in structure, lighter in weight and easier to install than the previous fixed one, which is able to detect several steel-cord conveyor belts within a short time.

2. Features & Advantages

Remote operation

Device users can remotely complete all equipment operation and status monitoring.

Real-time display

The operating status of the belt is displayed on the computer screen in real time.

Holographic storage

The belt data acquired is completely stored in the hard disk.

Automatic recognition

The device can automatically analyze the belt data without the assistance of personnel.

Video playback

Reproduce the entire operating process of the belt, and adjust the running speed of the belt.

Defect location

Accurately locate each defect recognized through the pixel data, and display the location information in the observation window and report.

High magnification

Realize subtle observation of various defects, such as wire splitting and corrosion, with the principle of magnifying glass.

Accurate distant measurement

The distance between any two points in the belt can be measured through simple operation, which is accurate to 1mm.

3. Product Parameter

S/N	Item	Parameter
1	Running Speed of Belt	0-9.6m/s;
2	Belt Width	800mm-3,000mm
3	Joint Vulcanization Grade	Automatic recognition of Grade 1- 4 or lapped joints
4	Operating Temperature	40℃-35℃; Operating Humidity: 95% RH at 25℃
5	System Power Supply Voltage	AC 127v/220v
6	The error of judging longitudinal distance and transverse distance of joints and wire breakage	The error of judging longitudinal distance and transverse distance of joints and wire breakage is±50 mm and 10 mm, respectively
7	Resolution	0.8mm
8	Signal Transmission Mode	Cable transmission for a distance less than 70m; optical fiber transmission for a distance of 70m or more
9	Transmission Protocol	TCP/IP protocol is adopted
10	Software Operating Environment	Windows 7/8/10 X86

4.Product Size and Weight

Components of detector	Length	Width	Thickness/Height	Weight
X-ray generator	590mm	510mm	170mm	39.2kg
X-ray receiving controller	1130-2330 mm	430mm	80mm	21.5-38.5kg
