U70 Cement Tanker

Manufacturing & Processing Machinery Transportation & Rail Transit

EXW Price:US$ 85,720.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T

Keywords:Cement Tanker Tanker Train Bulk cement shipment

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Transportation & Rail Transit Trademark: CRRC TAIYUAN CO., LTD
Product Package: Specifications:
Place of Origin: TAIYUAN CITY, SHAN XI PROVINCE, CHINA Port: TIAN JIN

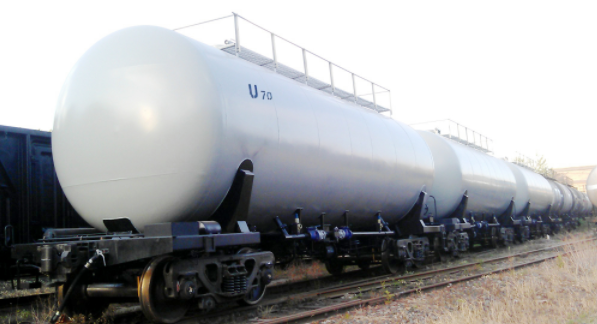

U70 cement tanker is a special wagon for transporting bulk cement. The working manner is loading from top and unloading from bottom, which could  match with user’ existing ground environment. It adopts pneumatic transmission; the cement is fluidized by compressed air and then transport to long-distance material tower by unloading pipe.



Main technical parameters



    Loading capacity                      69t

    Tare weight                          24.6t

    Axle load                            23t

    Volume                             58.3m3

    Tank working press                   0.35MPa

    Overall length                        12016 mm

    Overall width                         3020mm

    Overall height                        4493mm

    Tank internal length × internal diameter    11260mm×3000mm

    Commercial operating speed             120km/h

    Minimum radius of curvature negotiable    145mm

    Unloading speed                       1.52t/min

    Conveying distance        level      150m

                    vertical    30m

    Residual quantity                      ≤0.3%
