KF60AK Automatic Dump Wagon

Manufacturing & Processing Machinery Transportation & Rail Transit

EXW Price:US$ 95,140.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T

Keywords:Automatic Dump Unloading Equipment Bulk good Transportation

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Transportation & Rail Transit Trademark: CRRC TAIYUAN CO., LTD
Product Package: Specifications:
Place of Origin: TAIYUAN CITY, SHAN XI PROVINCE, CHINA Port: TIAN JIN

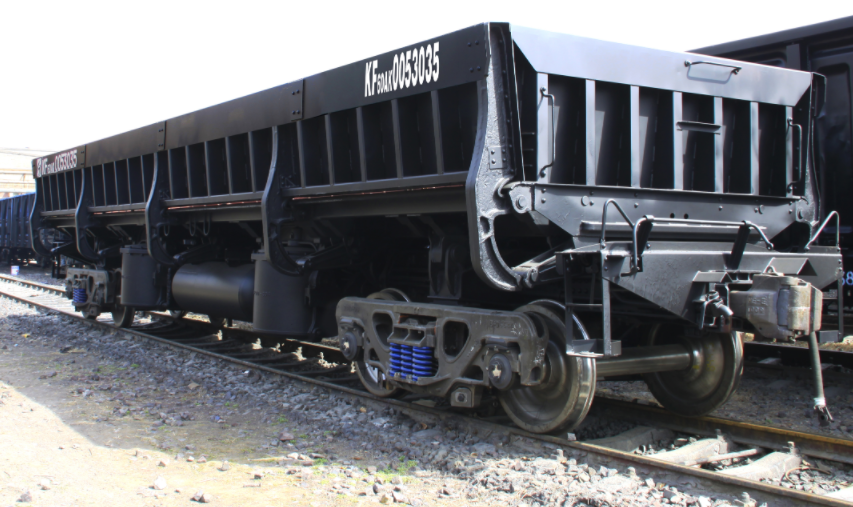

KF60AK automatic dump wagon is a kind of special railway wagon with the unloading equipment and vehicle structure, which is used for transporting bulk goods such as ore, grit, coal and construction materials on the railways. It is fitted with the tip-over wagon box and underside open door to enable the wagon becoming more stable during tilting and rapid for unloading , easy for operating and efficient for transportation.



Main technical parameters

  Loading capacity                 60 t

  Tare weight                     about 33.8 t

  Axle load                       25t

  Volume                         29 m3

  Overall length                    13656 mm

  Overall width                    3229mm

  Overall height                    2487 mm

  Max.overturn angle of the carriage             45°

  Working pressure of overturn cylinder           0.49 MPa

  Commercial operating speed                 120 km/h

  Minimum radius of curvature negotiable         145 m


Contact Name: Miss Junfang Chang Contact Email: 13****9@163.com
Contact Job Title: Employee Contact Mob: 177***958
Contact Tel: +86-351-2649484 Contact Fax:
Address: 山西省太原市万柏林区兴华西街129号 Website:

CRRC TAIYUAN Co., Ltd founded in 1898, is one of the earliest railway factories in China and has a history of around 121 years in manufacture and maintenance of railway products since 1934. The company, subordinate to CRRC, is a large state-owned first-class enterprise, the largest maintenance base of railway electric locomotives in China and a leading company in design and manufacture of K series hopper cars. The operating machinery for railway engineering designed and manufactured by the company itself has reached domestic advanced level. CRRC TAIYUAN Co., Ltd covers an area of about 1.124 km2, with 3,000 employees, 3,900 sets of various machinery and equipment, and more than 150 sets of large-scale precision equipment. The Company products focus primarily on three fields: maintenance of electric locomotives, manufacture and maintenance of freight wagons, and manufacture of engineering vehicles. The company has an annual shop maintenance capacity of 750 sets of electric locomotives, involving various types of electric locomotives in the main railway. New vehicle products include the design and manufacture of gondola cars, ballast hopper cars, coal hopper cars, flat cars, tank trucks, automatic dumping cars etc., with an annual production capacity of 7,000 new vehicles, and an annual shop maintenance capacity of 8,000 vehicles. Engineering vehicles mainly include catenary working vehicles, constant-tension cable unrolling vehicle, heavy rail cars, traction diesel locomotives for mining, tunnel tractors, rail car with a working platform, inspection vehicles, washing vehicles, railway crane trucks and other railway engineering maintenance products, with an annual production capacity of 500 sets. In addition, the company also manufactures a variety of rail vehicle accessories, castings (steel, iron, copper and aluminum), forgings, welding parts, machining parts etc.
