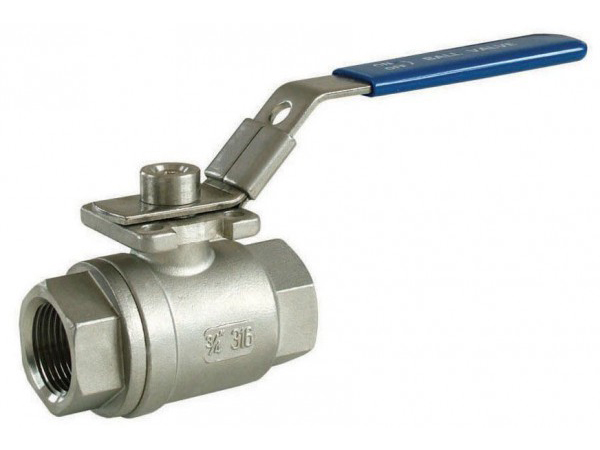

Stainless Steel 2PC Ball Valve
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:200 Piece(s)
Payment Method : T/T Paypal Others
Keywords:Ball Valve 2pc 1000PSI
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | |
| Product Package: | Plastic bag/Carton/Pallet | Specifications: | |
| Place of Origin: | CHINA | Port: | Tianjin Port |
Specification
Full port, investment casting body, fire safe and anti-static devices, blow-out proof stem, double-dish shrapnel automatic compression packing design, cleaning valve chamber device, pressure balance hole in the ball (option), ball valves pneumatic used to high platform design, integrated actuator and valve body connection, no separate bracket, torque reduction, ease of assembly and saving space.
Pressure: 1000PSI/PN63
Temperature Range: -29℃＞120℃ （based on the different temperatures between body materials and sealing surface materials）
Medium: Using different materials can be applied to water, oil, gas or caustic liquid.
Thread Type: G, NPT, PT, Rp, Rc, DIN 259/2999.
PED97/23/EC Approved
Casting Approved AD2000-W0
1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | |
A | 133 | 133 | 133 | 133 | 133 | 133 | 150 | 150 | 186 | 186 |
C | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 |
D | 12.7 | 12.7 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 |
H2 | 8 | 8 | 8 | 8 | 8.4 | 8.4 | 10.5 | 10.5 | 14.5 | 14.5 |
H3 | 9 | 9 | 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 |
H | 60.5 | 60.5 | 62 | 67 | 76.5 | 80.5 | 98 | 107 | 123 | 133 |
J | 6 | 6 | 6 | 6 | 6 | 6 | 7 | 7 | J | J |
K | 36 | 36 | 36 | 36 | 36 | 36 | 50 | 50 | 70 | 70 |
L | 53 | 53 | 63 | 76 | 90 | 100 | 115 | 136 | 162 | 188 |
Features
ITEM | DESIGNATION | MATERIAL |
1 | BOLT | 304 |
2 | COVER | 304 |
3 | ADJUSTABLE | 304 |
4 | GLAND | 304 |
5 | STEM PACKING | PTFE |
6 | BONNET | CF8M |
7 | BALL | CF8M |
8 | BALL SEAT | RPTFE |
9 | BODY SEAL | PTFE |
10 | BODY | CF8M |
11 | STEM | 304 |
12 | THRUST WASHER | PTFE |
13 | O-RING | NBR/VITON |
14 | LOCKING DEVICE | 304 |
15 | HANDLE | 304 |
16 | HANDLE COVER | PLA |
APPLICATION
Full port, investment casting body, fire safe and anti-static devices, blow-out proof stem, double-dish shrapnel automatic compression packing design, cleaning valve chamber device, pressure balance hole in the ball (option), ball valves pneumatic used to high platform design, integrated actuator and valve body connection, no separate bracket, torque reduction, ease of assembly and saving space.
Pressure: 1000PSI/PN63
Temperature Range: -29℃＞120℃ （based on the different temperatures between body materials and sealing surface materials）
Medium: Using different materials can be applied to water, oil, gas or caustic liquid.
Thread Type: G, NPT, PT, Rp, Rc, DIN 259/2999.
PED97/23/EC Approved
Casting Approved AD2000-W0
ISO5211 Mounting Pad
Inspection Testing: API598, EN12266
PRODUCT RANGE
Why Choose Us
Choose Reliable Stainless steel products from professional manufacturer!
