Ceramic fiber blanket/block/wool/paper
Metallurgy,Chemicals & Energy Refractory raw materials
MOQ:20 Roll(s)
Payment Method : T/T D/P Western Union Paypal Money Gram
Keywords:Ceramic Fiber Blankets ceramic fiber insulation Ceramic Fiber Paper
| Product Category: | Metallurgy,Chemicals & Energy > Refractory raw materials | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | XINGANG |
Ceramic Fiber Insulation Materials
Characteristic:Low thermal conductivity,low heat storage;Excellent thermal stablity and resistance to burning; Good
ability to obstruct heat and voice.
Appication:widely used in lining of stove,heating equipment and high-temperature pipeline;electric boiler,gas engine and heat insulation of nuclear power;lining og gig-temperature reacting and heating equipments in chemical engineering;heat insulation of kiln door and cover;fireproofing and heat insulation of high building;materials for high-temperature filtrating.
Ceramic Fiber wool
|
COM |
ST |
HP |
HA |
HZ |
Al2O3(%) | 44 | 46 | 47-49 | 52-55 | 39-40 |
Al2O3+SiO2(%)min | 96 | 96 | 99 | 99 | -- |
Al2O3+SiO2+ZrO2(%) | -- | -- | -- | -- | 99 |
ZrO2(%)max | -- | -- | -- | -- | 15-17 |
Fe2O3(%)max | 1.2 | 1.0 | 0.2 | 0.2 | 0.2 |
Na2O+K2O(%)max | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 |
Specification Temp.(℃) | 1100 | 1260 | 1260 | 1360 | 1430 |
Working Temp.(℃) | 1000 | 1050 | 1100 | 1200 | 1350 |
Fiber Dia.(μm) Blown Spun |
2-3 3-4.5 |
2-3 3-4.5 |
2-3 3-4.5 |
2-3 3-4.0 |
2-3 3-4.0 |

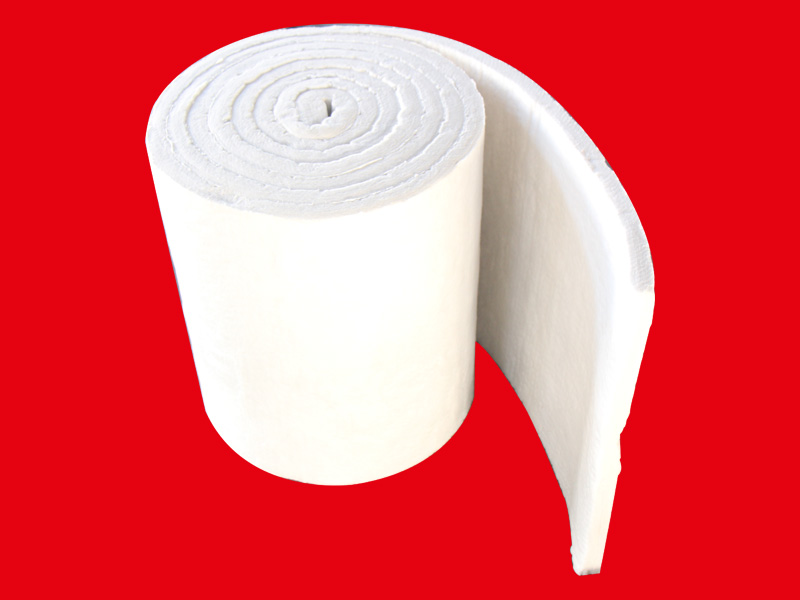

Ceramic Fiber Blanket
| COM | ST | HP | HA | HAZ | HZ |
Al2O3(%) | 42-44 | 45-46 | 47-49 | 52-55 | 45-46 | 39-40 |
Al2O3+SiO2(%)min | 96 | 97 | 99 | 99 | -- | -- |
Al2O3+SiO2+ZrO2(%) | -- | -- | -- | -- | 99 | 99 |
ZrO2(%) | -- | -- | -- | -- | 5-7 | 15-17 |
Fe2O3(%)max | 1.2 | 1.0 | 0.2 | 0.2 | 0.2 | 0.2 |
Na2O+K2O(%)max | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 | 0.2 |
Specification Temp.(℃) | 1100 | 1260 | 1260 | 1360 | 1360 | 1430 |
Working Temp.(℃) | 1000 | 1050 | 1100 | 1200 | 1200 | 1350 |
Bulk Density(Kg/m3) | 128 | 128 | 128 | 160 | 160 | 160 |
Linear Shrinkage (%)max 1000℃,keep 24hours |
4 |
3 |
3 |
3 |
3 |
3 |
Tensile Strength(Mpa) | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 |
Thermal Conductivity (W/m.k)max 400℃ 600℃ 800℃ 1000℃ |
0.09
0.176 |
0.09
0.176 |
0.09
0.176 0.22 |
0.132
0.22 |
0.132
0.22 |
0.76
0.22 |
Size(mm) | Accoring to client’s requirements Common Size:7200×610×10-50 | |||||
Ceramic Fiber Block
COM | ST | HP | HA | HAZ | HZ | |
Al2O3(%) | 42-44 | 45-46 | 47-49 | 52-55 | 45-46 | 39-40 |
Al2O3+SiO2(%)min | 96 | 97 | 99 | 99 | -- | -- |
Al2O3+SiO2+ZrO2(%) | -- | -- | -- | -- | 99 | 99 |
ZrO2(%) | -- | -- | -- | -- | 5-7 | 15-17 |
Fe2O3(%)max | 1.2 | 1.0 | 0.2 | 0.2 | 0.2 | 0.2 |
Na2O+K2O(%)max | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 | 0.2 |
Specification Temp.(℃) | 1100 | 1260 | 1260 | 1360 | 1360 | 1430 |
Working Temp.(℃) | 1000 | 1050 | 1100 | 1200 | 1200 | 1350 |
Bulk Density(Kg/m3) | 220±15 | 220±15 | 220±15 | 220±15 | 220±15 | 220±15 |
Size(mm) | Accoring to client’s requirements Common size:600×240-300×100-200(non-anchoring structure); 300×300×250(anchoring structure) | |||||
