Deep groove ball bearing 6000 6200 6300 series
Manufacturing & Processing Machinery Bearing & Accessories
MOQ:1000 Piece(s)
Payment Method : T/T Others
Keywords:6200 bearing 6300 bearing 6000 bearing Deep Groove Ball Bearings
| Product Category: | Manufacturing & Processing Machinery > Bearing & Accessories | Trademark: | Neutral |
| Product Package: | Pallet, wooden case,industrial package or as customers' requirement | Specifications: | China National Standard |
| Place of Origin: | Shanxi | Port: | Qingdao,Shanghai,Ningbo,Dalian,Tianjin |

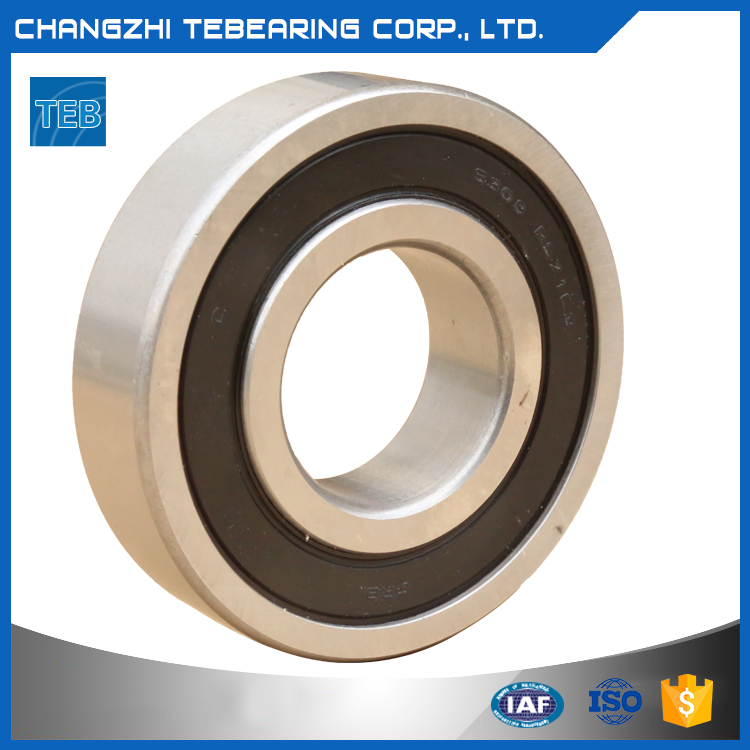

Deep groove ball bearing 6000 6200 6300 series
Deep Groove Ball Bearing is the most representative rolling bearing, it can suffer from both axial and bidirectional radial load.
It can be used in these occasions with the demand of high rotation, low noise, and low oscillation. Bearing with seal together with steel cover of rubber seal usually filled with lubricant in advance ,the outside ring with stopping circle or flange ,these will not only be easier for axial orientation ,but also good for the installing of outside shell. The size of maximum loading bearing is just the same as standard bearing ,while with backfill trough in the inside and outside ,which can add the balls, and improve the maximum load at the same time.
DEEP GROOVE BALL BEARINGS | |||||||||||
Bearing no. | Dimensions | Basic load | Weight | ||||||||
OPEN | ZZ | 2RS | N | NR | d | D | B | r | Cr | Cor | KG |
6000 | ZZ | 2RS | N | NR | 10 | 26 | 8 | 0.3 | 4550 | 1970 | 0.018 |
6200 | ZZ | 2RS | N | NR | 10 | 30 | 9 | 0.6 | 5100 | 2390 | 0.031 |
6300 | ZZ | 2RS | N | NR | 10 | 35 | 11 | 0.6 | 8100 | 3450 | 0.051 |
6001 | ZZ | 2RS | N | NR | 12 | 28 | 8 | 0.3 | 5100 | 2370 | 0.022 |
6201 | ZZ | 2RS | N | NR | 12 | 32 | 10 | 0.6 | 6800 | 3050 | 0.037 |
6301 | ZZ | 2RS | N | NR | 12 | 37 | 12 | 1 | 9700 | 4200 | 0.060 |
6002 | ZZ | 2RS | N | NR | 15 | 32 | 9 | 0.3 | 5600 | 2830 | 0.031 |
6202 | ZZ | 2RS | N | NR | 15 | 35 | 11 | 0.6 | 7650 | 3750 | 0.045 |
6302 | ZZ | 2RS | N | NR | 15 | 42 | 13 | 1 | 11400 | 5450 | 0.083 |
6003 | ZZ | 2RS | N | NR | 17 | 35 | 10 | 0.3 | 6000 | 3250 | 0.041 |
6203 | ZZ | 2RS | N | NR | 17 | 40 | 12 | 0.6 | 9550 | 4800 | 0.067 |
6303 | ZZ | 2RS | N | NR | 17 | 47 | 14 | 1 | 13600 | 6650 | 0.113 |
6004 | ZZ | 2RS | N | NR | 20 | 42 | 12 | 0.6 | 9400 | 5000 | 0.068 |
6204 | ZZ | 2RS | N | NR | 20 | 47 | 14 | 1 | 12800 | 6600 | 0.107 |
6304 | ZZ | 2RS | N | NR | 20 | 52 | 15 | 1.1 | 15900 | 7900 | 0.145 |
6005 | ZZ | 2RS | N | NR | 25 | 41 | 12 | 0.6 | 10100 | 5850 | 0.079 |
6205 | ZZ | 2RS | N | NR | 25 | 52 | 15 | 1 | 14000 | 7850 | 0.129 |
6305 | ZZ | 2RS | N | NR | 25 | 62 | 17 | 1.1 | 20600 | 11200 | 0.235 |
6006 | ZZ | 2RS | N | NR | 30 | 55 | 13 | 1 | 13200 | 8300 | 0.116 |
6206 | ZZ | 2RS | N | NR | 30 | 62 | 16 | 1 | 19500 | 11300 | 0.199 |
6306 | ZZ | 2RS | N | NR | 30 | 72 | 19 | 1.1 | 26700 | 15000 | 0.345 |
6007 | ZZ | 2RS | N | NR | 35 | 62 | 14 | 1 | 16000 | 10300 | 0.151 |
6207 | ZZ | 2RS | N | NR | 35 | 72 | 17 | 1.1 | 25700 | 15300 | 0.284 |
6307 | ZZ | 2RS | N | NR | 35 | 80 | 21 | 1.5 | 33500 | 19200 | 0.464 |
6008 | ZZ | 2RS | N | NR | 40 | 68 | 15 | 1 | 16800 | 11500 | 0.190 |
6208 | ZZ | 2RS | N | NR | 40 | 80 | 18 | 1.1 | 29100 | 17800 | 0.366 |
6308 | ZZ | 2RS | N | NR | 40 | 90 | 23 | 1.5 | 40500 | 24000 | 0.636 |
6009 | ZZ | 2RS | N | NR | 45 | 75 | 16 | 1 | 20900 | 15200 | 0.241 |
6209 | ZZ | 2RS | N | NR | 45 | 85 | 19 | 1.1 | 31500 | 20400 | 0.420 |
6309 | ZZ | 2RS | N | NR | 45 | 100 | 25 | 1.5 | 53000 | 32000 | 0.829 |
6010 | ZZ | 2RS | N | NR | 50 | 80 | 16 | 1 | 21800 | 16600 | 0.261 |
6210 | ZZ | 2RS | N | NR | 50 | 90 | 20 | 1.1 | 35000 | 23200 | 0.459 |
6310 | ZZ | 2RS | N | NR | 50 | 110 | 27 | 2 | 62000 | 38500 | 1.060 |
6011 | ZZ | 2RS | N | NR | 55 | 90 | 18 | 1.1 | 28300 | 21200 | 0.381 |
6211 | ZZ | 2RS | N | NR | 55 | 100 | 21 | 1.5 | 43500 | 29300 | 0.619 |
6311 | ZZ | 2RS | N | NR | 55 | 120 | 29 | 2 | 71500 | 44500 | 1.370 |
6012 | ZZ | 2RS | N | NR | 60 | 95 | 18 | 1.1 | 29500 | 23200 | 0.412 |
6212 | ZZ | 2RS | N | NR | 60 | 110 | 22 | 1.5 | 52500 | 36000 | 0.787 |
6312 | ZZ | 2RS | N | NR | 60 | 130 | 31 | 2.1 | 82000 | 52000 | 1.720 |
6013 | ZZ | 2RS | N | NR | 65 | 100 | 18 | 1.1 | 30500 | 25200 | 0.439 |
6213 | ZZ | 2RS | N | NR | 65 | 120 | 23 | 1.5 | 57500 | 40000 | 1.000 |
6313 | ZZ | 2RS | N | NR | 65 | 140 | 33 | 2.1 | 92500 | 60000 | 2.110 |
6014 | ZZ | 2RS | N | NR | 70 | 110 | 20 | 1.1 | 38000 | 31000 | 0.608 |
6214 | ZZ | 2RS | N | NR | 70 | 125 | 24 | 1.5 | 62000 | 44000 | 1.090 |
6314 | ZZ | 2RS | N | NR | 70 | 150 | 35 | 2.1 | 104000 | 68000 | 2.570 |
6015 | ZZ | 2RS | N | NR | 75 | 115 | 20 | 1.1 | 39500 | 33500 | 0.649 |
6215 | ZZ | 2RS | N | NR | 75 | 130 | 25 | 1.5 | 66000 | 49500 | 1.190 |
6315 | ZZ | 2RS | N | NR | 75 | 160 | 37 | 2.1 | 113000 | 77000 | 3.080 |
6016 | ZZ | 2RS | N | NR | 80 | 125 | 22 | 1.1 | 47500 | 40000 | 0.872 |
6216 | ZZ | 2RS | N | NR | 80 | 140 | 26 | 2 | 72500 | 53000 | 1.420 |
6316 | ZZ | 2RS | N | NR | 80 | 170 | 39 | 2.1 | 123000 | 86500 | 3.670 |
6017 | ZZ | 2RS | N | NR | 85 | 130 | 22 | 1.1 | 49500 | 43000 | 0.918 |
6217 | ZZ | 2RS | N | NR | 85 | 150 | 28 | 2 | 84000 | 62000 | 1.760 |
6317 | ZZ | 2RS | N | NR | 85 | 180 | 41 | 3 | 133000 | 97000 | 4.280 |
6018 | ZZ | 2RS | N | NR | 90 | 140 | 24 | 1.5 | 58000 | 50000 | 1.190 |
6218 | ZZ | 2RS | N | NR | 90 | 160 | 30 | 2 | 96000 | 71500 | 2.180 |
6318 | ZZ | 2RS | N | NR | 90 | 190 | 43 | 3 | 143000 | 107000 | 4.980 |
6019 | ZZ | 2RS | N | NR | 95 | 145 | 24 | 1.5 | 60500 | 54000 | 1.230 |
6219 | ZZ | 2RS | N | NR | 95 | 170 | 32 | 2.1 | 109000 | 82000 | 2.640 |
6319 | ZZ | 2RS | N | NR | 95 | 200 | 45 | 3 | 153000 | 119000 | 5.760 |
6020 | ZZ | 2RS | N | NR | 100 | 150 | 24 | 1.5 | 60000 | 54000 | 1.290 |
6220 | ZZ | 2RS | N | NR | 100 | 180 | 34 | 2.1 | 122000 | 93000 | 3.170 |
6320 | ZZ | 2RS | N | NR | 100 | 215 | 47 | 3 | 173000 | 141000 | 7.040 |
Deep groove ball bearing types:
1,.A single deep groove ball bearing
2. With dust cover single deep groove ball bearing
3. With dust cover, sealing ring single deep groove ball bearing outer ring, have
4. Stop moving slot and stop ring single deep groove ball bearing
5. Have put the ball of the gap of deep groove ball bearings
6. Double row deep groove ball bearing
Brand | TEBearing or OEM | ||
Name | Deep Groove Ball Bearing | ||
Model | 6000 Series - Extra Light Ball Bearings – Ideal for limited space applications | ||
6200 Series - Light Series Ball Bearings – Balanced between space and load capacity | |||
6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity | |||
Material | GCr15 | Certificate | ISO9001:2001 |
Precision | P0, P6, P5 | ||
Bore Size: | 10mm-100mm | Outside diameter | 25mm-220mm |
Clearance | C0,C1,C2,C3,C4,C5 etc. | ||
Cage Type | Brass cage or Stainless cage | ||
Seals Type | ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc | ||
Features | Deep groove ball bearing are simple in design, non-separable, suitable for high and even very high speeds and are robust in operation, requiring little maintenance.Deep-groove bearings have higher load ratings for their size than shallow-groove , but are also less tolerant of misalignment of the inner and outer races | ||
Application | Deep groove ball bearing suitable for precision instrument, low noise electromotor, automobile and motorcycle, etc. It is the the most widely used bearing type. | ||
Package | pallet, wooden case,industrial package or as customers' requirement | ||
Price | FOB, CFR, CIF | Delivery Time | 15-30 days |
Packaging detail: pallet, wooden case,industrial package or as customers' requirement
Delivery detail:15-30 days
1. More than ten years bearing products exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customer, you can choose loading port, then we can accept inland transport of short distance
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.
High Quality, Competitive Price, Reliable Service, On-Time Delivery !
TEB Can Be Your Trusted Partner in Bearing Field !!!!
