Al Dana Switchgear

Business Type:Manufacturer

Main Products: 11KV PanelsLV PanelsSMDBDBCapacitor BankMCCFeeder PillarsStreet Light PolesService CabinetsBattery Charger

view on mobile

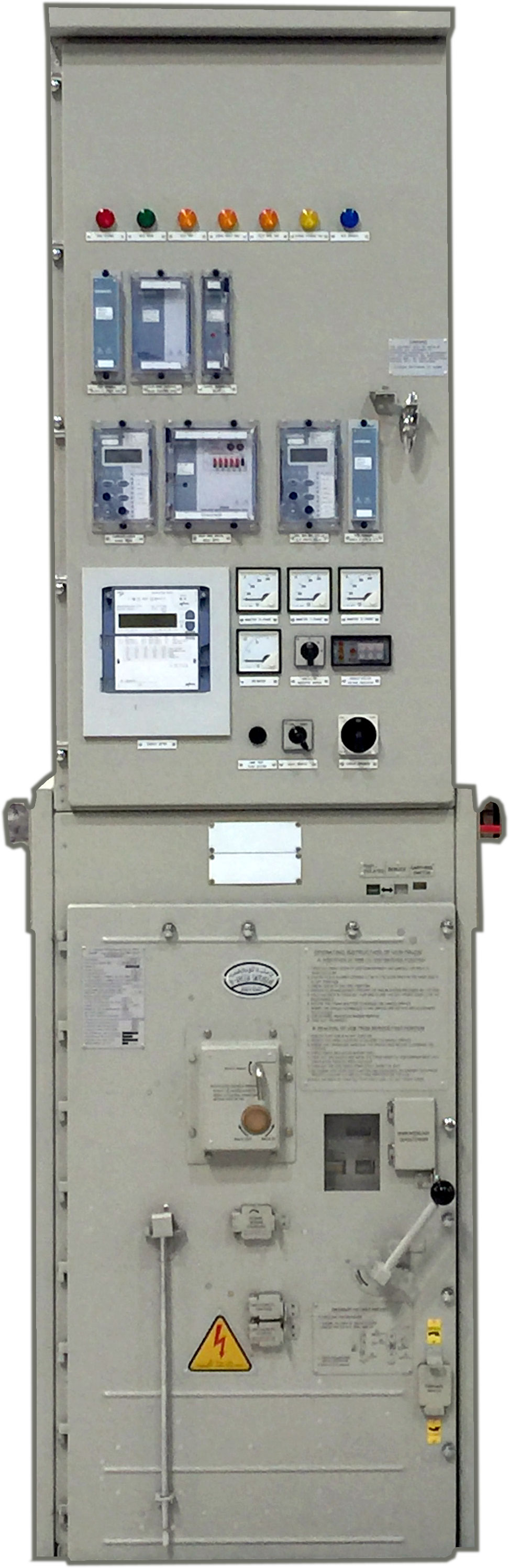

High Voltage Switchgear

Electrical & Power Energy Electrical Switches & Supplies

DDP Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C

Keywords:High Voltage Switchgear

Add to Favorites

Product Category: Electrical & Power Energy > Electrical Switches & Supplies Trademark:
Product Package: Specifications:
Place of Origin: Port: Hamad

?Type   : DH12

?Voltage rating  : Up to 12kV

?Frequency   : 50 Hz / 60 Hz

?Normal circuit current  : Up to 3150A

?Normal busbar current  : Up to 4000A

?Short time rating  : Up to 40kA-3sec, 110kA peak

?Earth Circuit   : Up to 40kA-3sec, 110kA peak

?P.F. Withstand voltage   : Up to 38kV

?Impulse withstand voltage  : Up to 95kV peak

?Internal Arc Fault test   : Up to 40kA, Criteria 1 to 5  As per  Annexure A of IEC 62271-200

?Degree of Protection  : As required.

?Applicable Standards  : IEC 62271- 200 / IEC 62271-100 / IEC 62271-102

Contact Name: Mrs. Dalia Farid Contact Email: bd****m@aldanaqatar.me
Contact Job Title: Business Development Manager Contact Mob: 744***575
Contact Tel: 40394145 Contact Fax: 40394145
Address: New Industrial Area Website: http://aldanaqatar.me

Al Dana Switchgear is a subsidiary of Al Ajjaj Ltd (AALCO), One of the leading Electromechanical contractor in the region of Qatar. Al Dana Switchgear designs and builds innovative electrical power systems for the region of Qatar. We provide a complete turn-key solution for a wide range of power applications and unique power solutions for the Energy industry. Al Dana Switchgear is established to provide switchgear solutions in the region with Quality, Reliability and Sustainability We understand the demand for high efficient and reliable power systems in the market today. AL Dana Switchgear has got most modern facilities for design, manufacturing and testing. We provide integrated solutions for power control systems where custom design and engineering are a requirement.
