2020 New Fully Automatic Wire Mesh Machine
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:3 Piece(s)
Payment Method : L/C T/T Others
Keywords:Wire Mesh Machine
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | CONET |
| Product Package: | Standard Export Sea Packing | Specifications: | HLV1300-2500 |
| Place of Origin: | China | Port: | Tianjin, China |
2020 New Fully Automatic Wire Mesh Machine
Introduction:
The line wire and cross wire are pre-straightened and cut wire as material supply.
The line wire and cross wire both with automatic falling device
This production line could weld the common mesh with single cross wire and single line wire
This production line could weld the common mesh with single cross wire and single line wire & mesh with V groove
This production line could weld the mesh with double cross wires and single line wire in middle
This production capacity of 100 pcs double wire mesh/hour @ mesh size: Wire diameter: 3-8mm, mesh length x width: 2500x2500mm, single line wire spacing 50mm, double cross wire spacing 200mm
Usage:
Mainly used in highway, railway, bridges, buildings and infrastructure projects etc.
Advantages:
CONET patent product, patent number: ZL2012 1 0372572.3
All the pneumatic components brand FESTO from Germany.
PLC touch screen control system brand SIEMENS.
Adopts Schneider servo system, the common motor brand ABB or SIEMENS.
Equipped with ABB 800KVA master switch system with electric leakage protection function and over-load protection function.

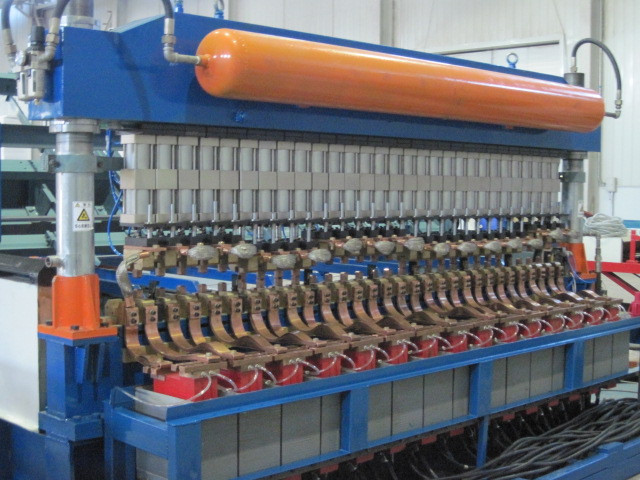

The material of the welding electrode is copper alloy with square shape which can be turned . Welding electrode, welding transformer all adopt forced water circulation cooling system.
Equipped with wireless communication function. Could monitor the running status of machine through APP of mobile phone.
Fast welding speed, steady production. eg. 3000mm width x 2030 mm length, single line spacing 50 mm & double cross wire spacing 200 mm, double wire mesh output not less than 100 pieces per hour.
This production line could weld the common mesh with single cross wire and single line wire; Also could weld the common mesh with V groove; Also could weld double wire mesh with double cross wires and single line wire in middle.
Technical Parameters:
| Model | HLV1300-2500 |
| Mesh width | 1000 -2500 [mm] |
| Mesh length | 1000 -4000 [mm] |
| Wire diameter | Φ3-Φ8 [mm] |
| Line wire spacing | 50 - 200 [mm] |
| Cross wire spacing | 10 - 300 [mm] |
| Max. welding speed | 50-60 [strokes/min] (cross wire no°/min) |
| Electrode quantity | 51 [sets] |
| Power supply | 380V 50Hz 800KVA |
| Total welding power | 1300KVA(100KVA*13) Rated load continuously ratio 50% |
| Power consumption | 10 - 50 [KW] |
| Air source supply | 0.6-0.8MPa 6m3 /min. Industrial-grade clean compressed air |
| Cooling water supply | 0.3 MPa 0.6m3 /min clean industrial-grade anti-freeze cooling water |
| Max. welding capability | Φ8mm+Φ6mm +Φ8mm 51 welding spots weld at the same time |
| Steel wire material | Low carbon steel wire |
| Steel wire surface condition | clean round or galvanized steel wire |
| Steel wire wastage | No |
| Labor need | 3 |
| Working temperature | 0oC - 50oC |
