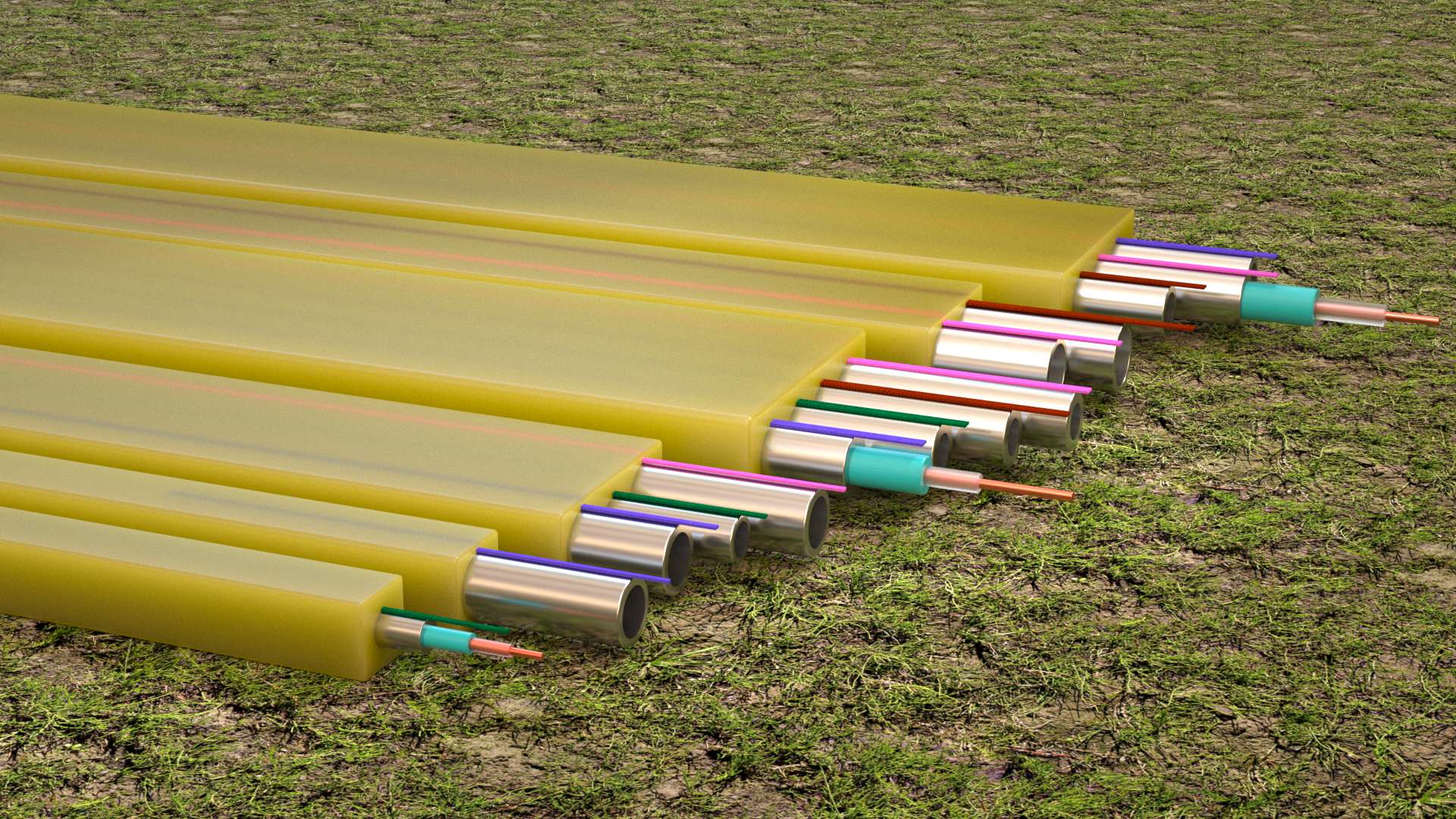

TUBING ENCAPSULATED CABLE(TEC)
Oil & Gas Oil and Gas Exploitation
MOQ:1000 Meter(s)
Payment Method : L/C T/T
Keywords:TUBING ENCAPSULATED CABLE TEC
| Product Category: | Oil & Gas > Oil and Gas Exploitation | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | CHINA | Port: | TIANJIN/QINGDAO |
TUBING ENCAPSULATED CABLE
TEC-316L-0.138in×0.030in-0.75mm2
TECHNICAL SPECIFICATIONS | |||
Type | |||
Tubing | Material | 316L | |
Size | 3.5mm X 0.77mm (0.138in x 0.030in) | ||
Conductor | Material | Copper | |
Size | φ 0.97 mm (0.75 mm2) ×1 | ||
Insulation | Material | FEP | |
Size | φ 1.97 mm(0.078in) ×1 | ||
Mechanical Properties | |
Yield Force | 1.82 kN |
Unit Mass | 0.06kg/m |
Electrical Properties | 0.75mm2 |
Max Electrical Resistance, 20 ℃ | 24.5 Ω/km |
Min Insulation Resistance, 20 ℃ | 1100MΩ* km |
Voltage Test | AC 2 kV, @ 5 minutes, No Breakdown |
Other Properties | |
Temperature Range | -110℃-200℃ |
TUBING ENCAPSULATED CABLE
TEC-PVDF-33.5mm×13.2mm-316L-2×3/8in×0.049in-1/4inx0.035in
TECHNICAL SPECIFICATIONS | |||
Type | TEC-PVDF-33.5mm×13.2mm-316L-2×3/8in×0.049in-1/4inx0.035in | ||
Tubing | Material | 316L | |
Size | 2 X 9.53mm X 1.25mm (3/8in x 0.049in) | ||
Material | 316L | ||
Size | 6.35mm X 0.89mm (1/4in x 0.035in) | ||
Sheath | Material | PP | |
Size | 2 X 10.33mm X 0.40mm (0.407in x 0.016in) | ||
Material | PP | ||
Size | 7.15mm X 0.40mm (0.281in x 0.016in) | ||
Encapsulation | Material | PVDF | |
Size | 33.5mm×13.2mm (1.319in×0.520in) | ||
Mechanical Properties | |
Yield strength | ≥40,000 psi (276 MPa) |
Tensile strength | ≥70,000 psi (483 MPa) |
Minimum Test Pressure | 8,200 psi (56.6 MPa) |
Yield Force | 23.47 kN |
Unit Mass | 1.09kg/m |
Other Properties | |
Temperature Range | -30℃-120℃ |
| Contact Name: | Mr Changkun Fu | Contact Email: | fu****n@huatongcables.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 180***459 |
| Contact Tel: | Contact Fax: | ||
| Address: | 河北省唐山市丰南区经济开发区华通街111号 | Website: | en.shindatubing.com/ |
HUATONG
in Brief
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area of more than 220,000 square meters of manufacturing footprint, equipped with more than 420 tines of production equipment and more than 250 sets of testing equipment.
Financially, HUATONG's annual production ca pacity exceeds 3 billion Yuan. In 2016, HUA TONG's human resources have exceeded 800 employees worldwide, where over 20% of them hold technical degrees.
Over a short time, HUATONG has realized a great growth to become a reputable modem, compre hensive, and large-scale enterprise in the wire and cable industry.
HUATONG is certified by all relevant international standards including ISO 9001： 2008 (Quality Man agement System), OHSAS 18001:2007 (Occupa tional Health & Safety Management System), ISO 14001:2004 (Environmental Management Sys tem). CNPC HSE Certification Q/SY1002.1-2013 SINOPEC HSE Certificate Q/SHS0001.1-2001, G0174 Marine BV Mode II Certification, API Cer tified to QI (QI-2225), and API Certified to 5ST (5ST-0005), which only 6 companies worldwide are approved.
HUATONG produces XLPE insulating power cables with voltage up to 35kV, PVC insulat ed power cables, mining cable, general rubber sheathed flexible cable, Electrical Submersible Pump cable, locomotive-vehicle cables, ship board offshore cables and Navy cables, nuclear station cables, pre-fabricated branch cables, aerial cables, control cables, special cables, the motor winding connecting conductors, alumi num stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on. HUATONG's products are popular in the Chinese domestic market, yet also exported to many countries including the United States of America. Holland, Italy, Russia, Britain, Austra lia, New Zealand, Ethiopia, Ghana, Congo, Middle East and Southeast Asia
HUATONG is a leading supplier of tubes and related services for the world's energy industry and certain other industrial applications. Our mission is to deliver value to our customers through product development, manufacturing excellence, and supply chain management We seek to minimize risk for our customers and help them reduce costs, increase flexibility and improve time-to market. HUATONG employees around the world are committed to continuous improvement by sharing knowledge across a single global organization. HUATONG offers a range of coiled tubing products tailored to the specific demands of an expanding spectrum of downhole applications. From standard well workover and hang-off strings to logging, drilling and special application strings with factory installed wireline, capillary tubes, or integral tools, HUATONG designs and manufactures the coiled tubing string best suited to each project.
HUATONG|Shinda
ACCREDITATIONS
& CERTIFICATIONS
ISO 9001: 2008 (Quality Management System)
OHSAS 18001:2007 (Occupational Health & Safety Management System)
ISO 14001:2004 (Environmental Management System)
CNPC HSE Certification Q/SY1002.1-2013
SINOPEC HSE Certificate Q/SHSOOO1.1-2001
G0174 Marine BV Mode II Certification
API Certified to QI (Ql-2225)
API Certified to 5ST (5ST-0005)
