11kv 12kv Metal-Enclosed Sf6 Gas Insulated Ring Main Unit

Electrical & Power Energy

FOB Price:US$ 2,220.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T Western Union Paypal

Keywords: Gas Insulated Ring Main Unit  Metal-Enclosed  Gas Insulated Ring

Inquire


Add to Favorites

Product Category: Electrical & Power Energy > Trademark: hongbo
Product Package: wooden packing Specifications: certification
Place of Origin: binzhou city Port: qingdao

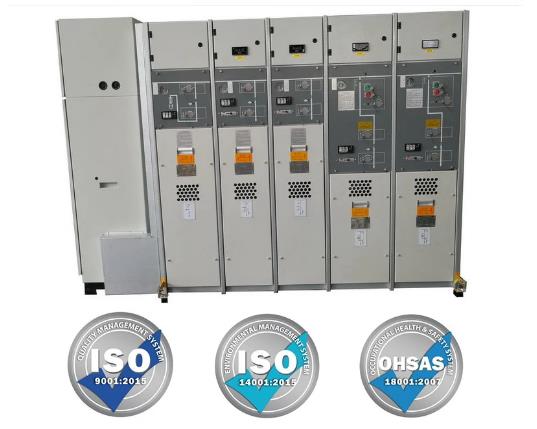

11KV 12kv Metal-Enclosed Sf6 Gas Insulated Ring Main Unit GIS

The GIR-12 type intelligent compact solid insulation switchgear is China's first-developed intelligent permanent-magnetic vacuum switchgear developed and manufactured by our company with independent intellectual property rights, which is based on the development demands of smart grid and adopts the design concept of being "intelligent, energy-saving, environmentally-friendly and maintenance-free". It integrates such functions as measurement, control, protection and communication etc, with high intelligent degree. This product is suitable for 50Hz, 12kV electric power systems, extensively applied to industrial and civil cable ring networks and power supply terminal projects; it is a top choice to guarantee safe, reliable, economical and efficient operation of the power network.

This product conforms to IEC60044-1, IEC60060, IEC60068-2, IEC60099-4, IEC60255-27, IEC60270, IEC60280.1, IEC60529, IEC60694, IEC60815-1, IEC60870-5-101, IEC61000-4, IEC61243-5, IEC62271, standards, etc.

Major Technical Parameters are Shown Below:

Rated voltage12 kV
Rated current630/1,250 A
Rated frequency50 Hz
Rated short-duration (1 min) power frequency withstand voltage42 kV
Rated short-circuit breaking current20 kA
Rated short-duration withstand current (4s)20 kA
Rated lightning impluse withstand voltage75 kV
Rated short-circuit making current (peak value)50 kA
Rated peak withstand current50 kA
Rated short-circuit current drop-out times30 times
Mechanical service life of vacuum circuit breaker10,000 times
Mechanical service life of disconnectors/ground switch2,000 times
Protection degree of enclosureIP67
Rated operating sequence of circuit breakerO-0.3s-CO-180s-CO
Rated work power supplyAC/DC 100/220V


Using Environment:

DescriptionUnitUsing Environment Value
Surrounding AirMax TemperatureoC+50
Min Temperature-50
Max Daily Temperature DifferenceK30
Altitudem≤2,000
Solar Radiation IntensityW/cm20.1
Pullution Class
IV
Icing-Thicknessmm10
HumidityAverage Value of Daily Relative Humidity%≤100
Average Value of Monthly Relative Humidity≤95
Earthquake Torelance AbilityDegree≤8


Our advantages:
1. Most parts are manufactured ourselves, like: frame, cabinet, permanent magnet mechanism, insulation part, control panel, etc. That means the process quality control is effectively controlled.
2. Adopt fast algorithm with national patent technology (patent number: ZL200720037710.7) so as to obtain fast breaking capacity of circuit breaker. As a result, it can isolate fault circuit rapidly. It takes less than 25ms from inspecting fault to cut fault circuit by separate circuit breaker. It can avoid the problem of override trip effectively.
3. Adopt single phase earthing protection system with national patent technology (patent number: ZL201020178325.6). It can realize on-line judgment to single phase earthing fault of low current earthing system without adding device. Releases warning or tripping action according to setting value
4. We have permanent magnet mechanism and spring mechanism, for different customer requirements.
