LPG Mounded Tank

Oil & Gas Oil and Gas Equipment

FOB Price:US$ 1,000,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:lpg tank propane tank lpg storage tank lpg propane tank gas tanks lpg lpg gas tank lpg gas tank for sale nigeria propane gas tank gas lpg tank lpg tank price

Add to Favorites

Product Category: Oil & Gas > Oil and Gas Equipment Trademark: HONTO
Product Package: Specifications:
Place of Origin: China Port: Shanghai

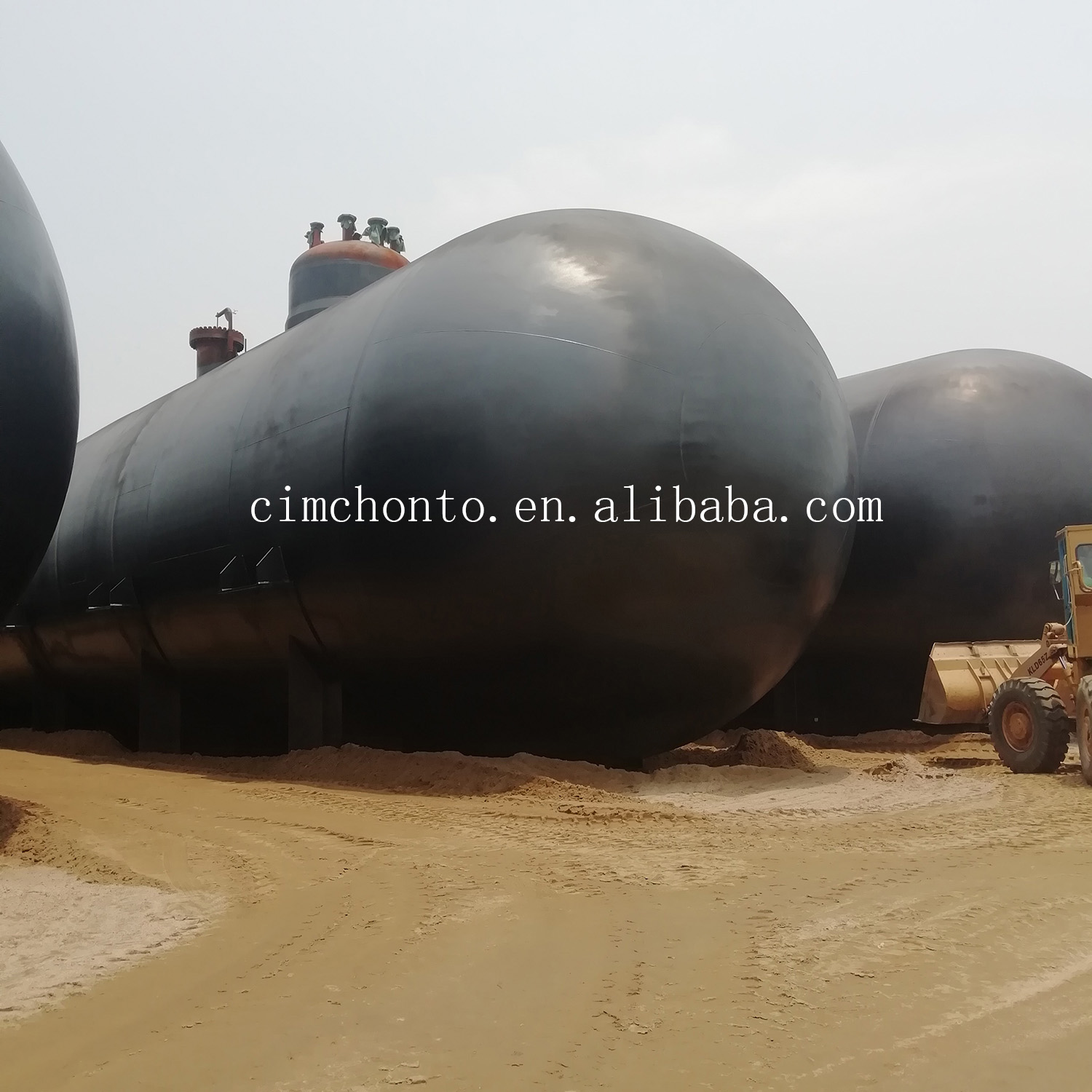

. Hongtu has the design and fabrication capability of large size mounded tank without saddles and medium,small size mounded tanks with saddles.

Technical Specification
Design Code:ASME BPVC VIII-1/VIII-2
Vessel Capacity:5~5000m3
Vessel Material:SA-516,SA-537 CL1



ASME LPG MOUNDED TANK
Volume
1000m3
2070m3
3500m3
Shell and Head Material
SA-537 CL.1(Normalized)
SA-537 CL.1(Normalized)
SA-537 CL1+S5
Empty Tank Weight
172610KG
330000KG
629300KG
Filling Rate
0.85
0.85
0.85
 I.D* H*L (mm)
φ6500*7418*32368mm
φ6900*X*57896mm
φ8000
Thickness(mm)
Shell 34mm/Head 20mm
Shell 28mm/Head 20mm
Shell 36mm/Head 24mm
Medium
LPG
LPG
LPG
Specific Gravity
0.54@15℃
0.495@15℃
/
Design Standard
ASME Ⅷ DIV.2 2017
ASME Ⅷ DIV.2 2015
ASME Ⅷ DIV.2 2017
Design Pressure
1.8Mpa
1.43/-0.05Mpa
1.42Mpa
Working Pressure
/
1.18Mpa
/
Hydrotest Pressure(At Top)
2.5Mpa
2.05Mpa
2.03Mpa
MDMT AT MAWP
-15℃ at 1.8Mpa
-6℃ at 1.43Mpa
/
Design Temp
50℃
55℃
55℃
Working Temp
/
/
/
Corrosion Allowance
Inner 3mm/Outside 2mm
Inner 1mm/Outside 0mm
3mm
Wind Load
Not Considered
Not Considered
Not Considered
Seismic Load
Not Considered
Not Considered
Not Considered
PWHT/HT
YES
NO
YES


Contact Name: Mr John Zhang Contact Email: zh****g@enricgroup.com
Contact Job Title: Sales Manager Contact Mob: 177***233
Contact Tel: 0724-6066247 Contact Fax: 0724-6066247
Address: No.16, Yingchun Avenue, Jingmen City, Hubei Province, China Website: http://www.hkhongtu.com & http://jmht.cimc.com

Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.

In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals' storage & transportation, gasification in cities/towns and vehicleessel's oil-to-gas transformation.

The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.

The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.

The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage & transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
