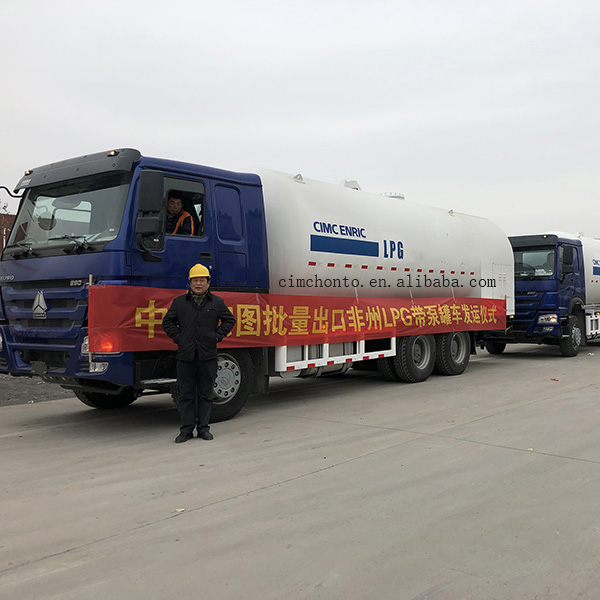

LPG Bobtail Tank Truck

Oil & Gas Oil and gas transportation

FOB Price:US$ 80,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:lpg trucks for sale mobile lpg filling truck lpg tanker truck lpg tank truck lpg tanker lpg road tanker lpg tanker for sale lpg transport tanker lpg bobtail trucks for sale lpg gas tanker

Add to Favorites

Product Category: Oil & Gas > Oil and gas transportation Trademark: HONTO
Product Package: Specifications:
Place of Origin: China Port: Shanghai

.


HONGTU is qualified to design and manufacture bobtail tankers with pumps and loading & unloading system on the side or at the rear of the tankers. The pump can be driven by PTO, hydraulic oil or electric motors. The valves and instruments used on the bobtail tankers are well-known international brands, catering to application requirements of Europe, America, Southeast Asia and other countries.


Technical Specification

Design Code: ASME BPVC VIII-1/VIII-2, EN 12493, GB/T19905, JB4732
Vessel Capacity: 5m3~40m3
Material: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
The information of CIMC HONTO LPG bobtail tank truck listed in below tables are only for recommendations and references. CIMC Hongtu, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.
I. ASME Code
Volume
5m3
10m3
17.04m3
21.6m3
22m3
23.3m3
*Max. Payload
2300kg
(2.5 t)
4600kg
(5 t)
7890kg
(8.52 t)
10000kg
(10.8 t)
10000kg
(11 t)
11110kg
(11.65 t)
Kerb Weight
-
-
-
15560kg
15170kg
14800kg
Gross Vehicle Weight
-
-
-
25560kg
25300kg
26040kg
Outline Dimension
L:7482mm
W:2400mm
H:2640mm
L:8387mm
W:2400mm
H:2690mm
-
L:9945mm
W:2500mm
H:3550mm
L:10130mm
W:2500mm
H:3550mm
L:10340mm
W:2490mm
H:3650mm
Design Pressure
1.724MPa
1.724MPa
1.724MPa
1.724MPa
1.724MPa
1.724MPa
Design Temperature
50℃
50℃
50℃
-20/50℃
50℃
-23.3/51.7℃
Corrosion Allowance
1 mm
1 mm
1 mm
1 mm
1 mm
0
Material of Shell
SA-516
SA-516
SA-612
SA-612
SA-612
SA-612
Material of Head
SA-516
SA-516
SA-612
SA-612
SA-612
SA-612
Thickness of Shell
10mm
12mm
11.66mm
12.5mm
12.19mm
12.5mm
Thickness of Head
10mm
12mm
11.87mm
8mm
7mm
8mm
Test Pressure
(Hydraulic Horizontal)
2.25MPa
2.25MPa
2.25MPa
2.25MPa
2.25MPa
2.25MPa
Air Test Pressure
1.724MPa
1.724MPa
1.724MPa
1.724MPa
1.724MPa
1.724MPa
*Please note that different medium component will cause different density and different payload.
**Please contact for more different kinds of capacity and standard tanks.

II. Chinese GB Standard
Capacity
10m3
13.58m3
20m3
23.81m3
36m3
*Max. Payload
4200kg
(5 t)
5700kg
(6.79 t)
8400kg
(10 t)
10000kg
(11.905 t)
15120kg
(18 t)
Kerb Weight
10800kg
10170kg
15300kg
15320kg
15750kg
Gross Vehicle Weight
15130kg
1600kg
23700kg
25450kg
31000kg
Outline Dimension
L:8830mm
W:2490mm
H:3050mm
L:8140mm
W:2450mm
H:3450mm
L:11800mm
W:2495mm
H:3937mm
L:10040mm
W:2490mm
H:3580mm
L:11980mm
W:2500mm
H:3770mm
Design Pressure
1.61/-0.1 MPa
1.61/-0.1 MPa
1.61/-0.1 MPa
1.61/-0.1 MPa
1.61 MPa
Design Temperature
50℃
50℃
-20/50℃
50℃
-20~50℃
Corrosion Allowance
1 mm
1 mm
1 mm
1 mm
1 mm
Material of Shell
Q345R
Q345R
Q345R
Q345R
Q420R
(WH590D)
Material of Head
Q345R
Q345R
Q345R
Q345R
Q345R(N)
Thickness of Shell
9mm
10.5mm
9.5mm
12mm
9.8mm
Thickness of Head
10mm
11mm
10mm
13mm
8mm
Hydraulic Test Pressure
2.10MPa
2.10MPa
2.10MPa
2.10MPa
-
Pressure of Leak Test
1.61MPa
1.61MPa
1.61MPa
1.61MPa
-
*Please note that different medium component will cause different density and different payload.
**Please contact for more different kinds of capacity and standard tanks.


Contact Name: Mr John Zhang Contact Email: zh****g@enricgroup.com
Contact Job Title: Sales Manager Contact Mob: 177***233
Contact Tel: 0724-6066247 Contact Fax: 0724-6066247
Address: No.16, Yingchun Avenue, Jingmen City, Hubei Province, China Website: http://www.hkhongtu.com & http://jmht.cimc.com

Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.

In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals' storage & transportation, gasification in cities/towns and vehicleessel's oil-to-gas transformation.

The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.

The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.

The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage & transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
