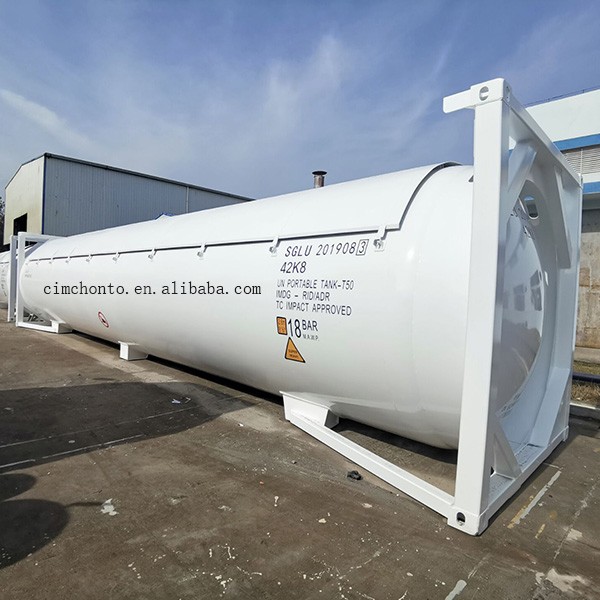

T50 LPG ISO Tank Container

Oil & Gas Oil and gas transportation

FOB Price:US$ 25,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:tank container iso tank iso tank containers price price tank containers iso tank container 20ft lpg iso tank container iso tank cimc iso tank container tank container 20ft iso tanks lpg

Add to Favorites

Product Category: Oil & Gas > Oil and gas transportation Trademark: HONTO
Product Package: Specifications:
Place of Origin: China Port: Wuhan

/



HONGTU has mature capability to design and manufacture tank containers. The tank containers are equipped with FORTVALE loading and
unloading accessories and safety valves; side-mounted floating level meter on the rear head and aluminum sunshield on the top.
With all necessary certificates, HONGTU tank containers meet international road, marine and railway transportation requirements.


Design code: ASME BPVC VIII-1/VIII-2, RID/ADR, IMDG T50, TC, UIC, CSC, TIR, ISO1496/3
Vessel capacity: 20ft & 40ft
Materials: SA-612M, SA-516, 16MnDR, WH590E, Q370R, Q420R
Design certificates: BV, TUV, CCS

ASME Standard LPG ISO Tank Container

20ft
40ft
Material
SA-612M
SA-612M
Design Capacity
24.7m3
51.7m3
Medium
LPG
LPG
Tare Mass
6500KG
12300KG
Max. Gross Mass
350000KG
36000KG
Tank Outline Dimension( ID * H * L)
6058*2438*2591mm
12192*2438*2591mm
Design pressure
1.8 MPa
1.8 MPa
Allowable Working pressure
1.8MPa
1.8 MPa
Working Temperature
-40~50 ℃
-40~50 ℃
Design Temperature
55 ℃
55 ℃
Design Service Life
15 years
15 years
Corrosion Allowance
0mm
0mm


Chinese Standard LPG ISO Tank Container

20ft
40ft
Material
16MnDR
WH590E
Design Capacity
25M3
51.7m3
Medium
LPG
LPG
Tare Mass
6500KG
12300KG
Max. Gross Mass
19450KG
34014KG
Tank Outline Dimension( ID * H * L)
6058*2438*2591mm
12192*2438*2591mm
Design pressure
1.8 MPa
1.8 MPa
Allowable Working pressure
1.8 MPa
1.8 MPa
Working Temperature
-40~50 ℃
-40~50 ℃
Design Temperature
55 ℃
55 ℃
Design Service Life
15 years
15 years
Corrosion Allowance
1.0mm
15 years


Contact Name: Mr John Zhang Contact Email: zh****g@enricgroup.com
Contact Job Title: Sales Manager Contact Mob: 177***233
Contact Tel: 0724-6066247 Contact Fax: 0724-6066247
Address: No.16, Yingchun Avenue, Jingmen City, Hubei Province, China Website: http://www.hkhongtu.com & http://jmht.cimc.com

Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.

In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals' storage & transportation, gasification in cities/towns and vehicleessel's oil-to-gas transformation.

The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.

The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.

The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage & transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
