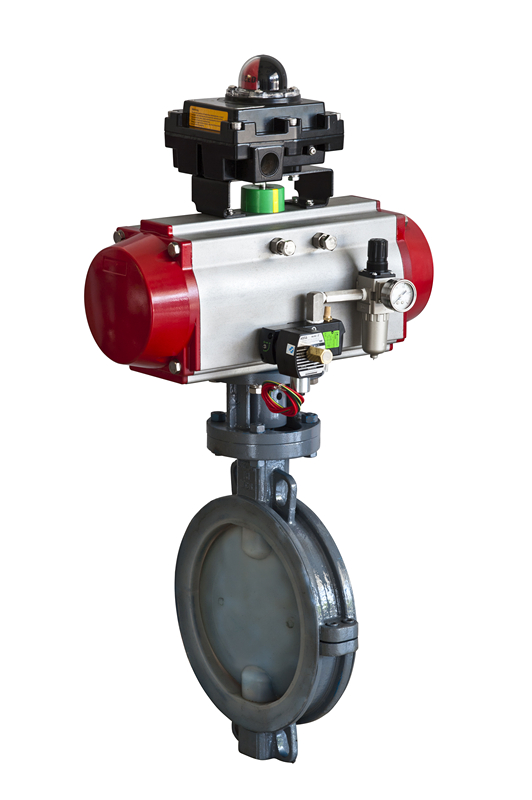

Rubber/Fluorine Lined butterfly valve
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union
Keywords:butterfly valve concentric butterfly valve Rubber-lined butterfly valve Fluorine-lined butterfly valve
| Product Category: | Oil & Gas > Piping and valves | Trademark: | YSMETER |
| Product Package: | Wooden Case | Specifications: | DN80~DN2400 |
| Place of Origin: | China | Port: | ShangHai |
Rubber-lined butterfly valve/Rubber-lined butterfly valve
General
ZSHWJ/ZDRWJ/ZSHWF/ZDRWF series lined butterfly valve are designed for desulfurization denitration device and slurry piping system, especially for corrosive application, such as sulfuric acid, phosphoric acid, hydrofluoric acid, chlorine, alkali, aqua regia and other strong corrosive media, requiring reliable shut-off performance, good corrosion resistance and long service life.
Characteristics
Rubber lined butterfly valve lined with EPDM has very strong corrosion resistance and erosion resistance capability with long service life. The disc material is duplex stainless steel, such as 2205, 1.4529 and so on, which have extremely strong resistance to chlorine ion corrosion (resistance to chloride ion 40000ppm), high surface hardness and strong comprehensive mechanical properties, especially for slurry application. Austenitic stainless steel can also be used according to the working condition. The disc and resilient EPDM sealing combination realizes bubble tight sealing. The connection is wafer.
Fluorine lined butterfly valve lined with PTFE, the elastomer back-up pads behind the liner ensure a tight fit around the disc, for a bubble tight shut-off. With advantages of easy operation, good sealing performance, long service life and quick shut off or control feature. Split body design is not only easy to replace shaft but also easy to adjust sealing performance. The connection is wafer.
Specification
Nominal Diameter:DN80~2400mm(3”~96”)
Nominal Pressure:Class 150
Applicable Temperature:-50~+130℃
Suitable Medium: lime slurry, sea water, oil, alkali, salt and acid etc..
Connection and Standard
Connection: Wafer
Flange Standard:ASME B16.5
Sealing Surface:Raised Face;
Design Standard:API 609;
Inspection Standard:API 598;
* Special connection dimensions can be made according to users’ requirements.
1.Q: Are you a manufacturer or trading company ?
A: we are valve manufacturer and factory ,and not trading company.
2. Q: Do you have agent or representative abroad?
A: We have agent in Russia and Kuwait and so on.
3. Q: What's your product range?
A: We can produce Control Valve, Butterfly Valve, Self Operated Valve,Ball Valve, Actuator and Air cylinder etc.
4. Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity,generally 30-60 days.
5. Q: Which countries do you export to ?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide ?
A: We can provide API-6D/TRCU010 and TRCU certificates/ECM/API STD 607/Certificate of Quality System Approval /SIL/DUNS/ISO9001......
7. Q : How do you control the quality of the product?
A: Adheres to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of-the-art quality control equipment
8.Q : How to ship the goods?
A: We can arrange the shipment for your, you just need to tell us your convenient seaport or airport; we can help to ship the goods by your agent as well.
