Coin Exchanger Self-service ATM
Service Supplier Financial and banking
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union
Keywords:Coin Exchanger ATM Coin Exchanger Crs Crm Coin Dispenser ATM Coin Dispenser Coin Exchanger Coin Exchanger Kiosk Coin Dispenser Kiosk Coin Dispenser Crs Crm Exchanger Self-service ATM
| Product Category: | Service Supplier > Financial and banking | Trademark: | Sunson or OEM |
| Product Package: | Wooden Case | Specifications: | 1500X1020X1620 mm |
| Place of Origin: | China | Port: | shenzhen |

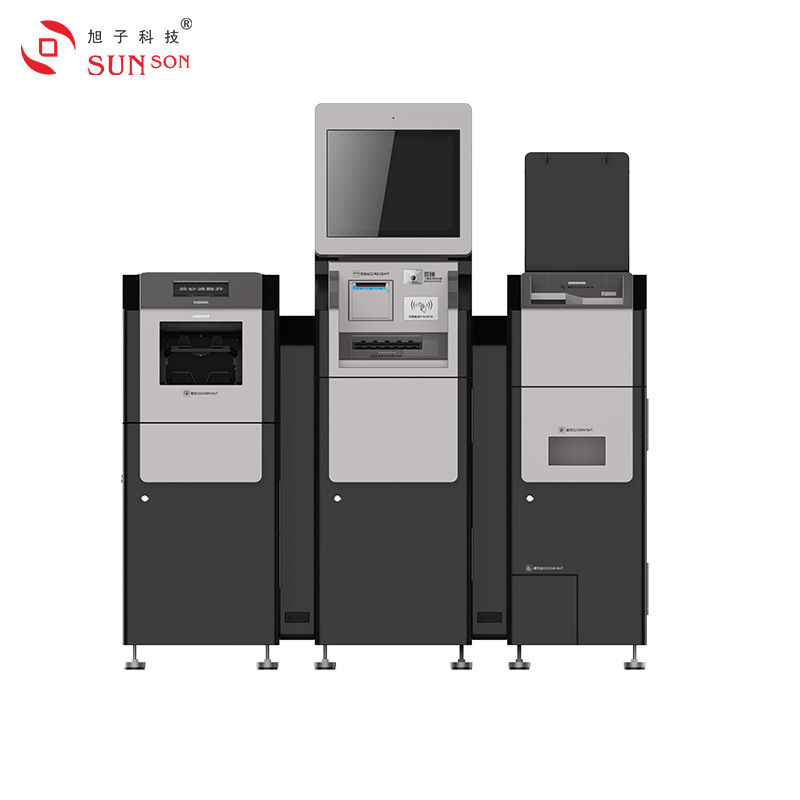

Coin Exchange ATM Model SKT-D1057
This Special ATM is developed for coin exchange business. The standard complete system consists of an ATM, a coin exchanger and a banknote deposit machine. Another useful combination of the system is one ATM plus two coin exchangers. Generally speaking Sunson Coin Exchange ATM serves as a coin provider to support supermarket Cashiers, vending machine business operations, public transport tickets selling, etc.
I. Main Functions:
? Banknote Deposit
? Coin sorting
? Change for coins
? Receipt Printout
? Non-contact card reading
? Bar code scanning
? Multiple 2-D code reading
? Fingerprint recognition, face recognition (optional)
II. Application Scenarios:
This Coin Exchange ATM system is widely used in supermarkets, vending machines business operations, assisting bus ticket selling, etc.
III. Main Features:
1. The appearance is fashionable, the structure is concise, the cabinet body is firm, and the installation and maintenance is convenient.
2. Convenient location and quick deployment.
3. The transaction is safe and reliable. In line with UnionPay and customized transaction channels.
4. Energy saving, green and environmental protection.
5. Personalized APPs can be superimposed.
IV. Main Specification:
Module | Specification | |
Main Control | Industrial control motherboard, H81 chip, LGA1150CPU architecture; 2 DDRIII memory slots; 2 VGA interfaces; 10 USB,12 RS232 interfaces, 2 1000Mb adaptive dual network cards, support TCP/IP protocol, ATX300W power supply; power on with timing switch function. | |
Display | 17-inch capacitive integrated touch screen, VGA interface, DC12V, resolution 1024*768, touch accuracy 4096*4096. | |
Cash Recycling | RS232 interface, DC24V, four recycling banknote cassettes with capacity of 3000 bills each, one reject banknote box of max 2000 notes, supporting serial code/number recognition. | |
Receipt Printout | DC24V, paper width 80mm, black mark detection of paper run out, half cut, paper roll diameter 80mm. | |
Coin Sorting | DC24V,RS232 interface, collecting different denominations of coins, max 3 face values in 3 different cassettes, storage box capacity of 400 coins (collected coins will firstly go to the recycling boxes until fully occupy them, then move to the storage box), recognition speed of 800 pc/s. | |
Coin Change | DC24V, RS232 interface, single coin box capacity 1100 coins (total 3 coin boxes), support coin box capacity full alarm function, support change coins of different face values. | |
Non-connect Card Reader | USB interface, DC5V, Operating frequency 13.56MHz, ISO-7816 standard A, B and C grade (5V); ISO-14443 standard A & B class, Support Mifare S50 /S70 card; Support NFC function, Recognition distance above 50mm. | |
2-D Code Scanner | USB interface, scanning mode: two-dimensional image (838x640pixel), supports commonly used PDF417 two-dimensional barcode, Datamatrix two-dimensional barcode, QR Code, GM Code, supports reading barcode information on paper, LCD, mobile phone screen and other media. | |
Face Recognition | USB interface, 5 million pixels, support for face recognition, live detection, image resolution 640*480. | |
Multimedia Speakers | Support multimedia voice system. | |
Power Supply | Input: AC110V/220V, 150W; Output: DC12V/12A. AC110V/220V, 800WOutput: DC24V/33A | |
Cash Cassette | AC220V,RS232 interface, banknote deposit loading capacity 400 bills, banknote reject box capacity 30-50 notes, banknote refund holder capacity 100 notes, support mixed face value deposit, support to identify the currency denomination of different countries, support serial code/number recognition. | |
Dimension | 1500x1020x1620mm | |
Weight | 300Kg |
Note: The above configurations are for reference, we remain the rights of upgrade without prior notice.
