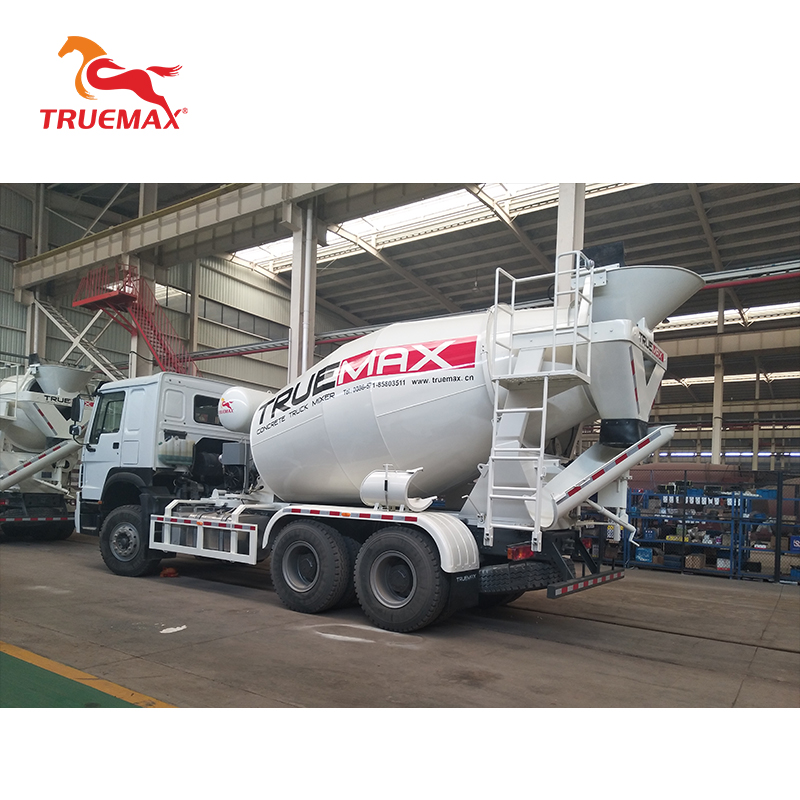

Concrete Truck Mixer CTM8
Manufacturing & Processing Machinery Engineering & Construction Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P
Keywords:Concrete Truck Mixer TRUCK MIXER MIXER
| Product Category: | Manufacturing & Processing Machinery > Engineering & Construction Machinery | Trademark: | TRUEMAX |
| Product Package: | Specifications: | ||
| Place of Origin: | CHINA | Port: | shanghai |
Attention:
The price displayed on this page is not the actual sales price.
For quotation, please contact sales@truemax.cn
Product Information
Concrete mixer truck is to transport the concrete or mortar that has been stirred in the concrete mixer to the construction site. Since the mixing tank of the concrete mixer truck can be rotated and adjustable, the concrete mixer can be transported to the maximum. The guarantee of the limit is not separated during the specified distance and time of transportation, the coarse aggregate does not settle, and the good workability is maintained. The concrete mixer truck is mostly used for the construction of commercial mixing stations and large projects.
Product advantages:
Multi Types of Chassis Match
The upper can be designed to match with different chassis as requirement.
High Performance Mixing Drum
1. Double logarithmic variable pitch helical mixer blade enables higher charging and discharging peed and equal mixing, eliminates segregation phenomenon.
2. New technology T-shape Blade, it is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service
Life of the agitator drum.
3. Adopt special wear-resistant steel, substantially increased mixing drum and blade wear-resisting property and working life, as experimental data confirmation, increased working life 60%-80%.
World Famous Hydraulic Transmission Parts
Key hydraulic accessories include: Hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor and reducer are all made by internationally known brands such as, Rexroth, Eaton, SAUER, PMP, Bonfiglioli, and ZF.
Structure And Appearance Industrialize Design
Optimization design to all exterior structure, enhance integral strength, more aesthetically and comfortable
Pneumatic Water Supple System And Multi-outlet Washing Design
1. Pneumatic water supply system with large water tank which can wash different points including agitator drum, charging hopper and
Discharging hopper respectively.
2. Rational layout and elegant appearance of washing pipes make the washing more convenient and rapid.
Advanced paint coating
Shot blasting to steel surface, strengthen surface strength, and enhance painted adhesive force, resistance to corrosion improve 20%; Use airless
Paint, high temperate drying, increase by painted glossiness, prolong working life.
Colors Can Be Customized
Parameters Of 8CBM Concrete Mixer Truck
Upper part
| Geometric volume of drum(m3) | 11.8 | Capacity for water tank(L) | 240 |
| Material of drum/blades | Q345B | Slump range(mm) | 50-210 |
| Inclination angle for drum(°) | 16 | Water supple pressure(mpa) | 0.3 |
| Padding rate(%) | 6780.00% | Max.External diameter of drum(mm) | 2025 |
| Residual rate(%) | <0.2 | Length of the drum(mm) | 4550 |
| Feeding speed(m3/min) | ≥3 | Upper-fixing Length(mm) | 5800 |
| Discharging speed(m3/min) | >1 | Subframe Length(mm) | 4825 |
| Mixing speed(r/min) | 0-14 | Chute Position(mm) | 1000 |
| Hydraulic pump | Rexroth A4VTG90 | Center of Gravity when Fully Load(mm) | 2880 |
| Hydraulic motor | Rexroth AA2FM90 | Hopper Height(mm) | 2816 |
| Reducer | ZF P4300 | Upper-fixing Height(mm) | 2816 |
| Radiator | KT-18 | Overall dimension(L*W*H/mm) | 5800*2500*2816 |
HOWO Chassis (Or according to Customer)
| Chassis Model | ZZ1257N3641W | Overall dimensions (MM) | 9000*2500*3945 | |
| Curb weight | 9800 kg | Driving type | 6X4 | |
| Rated loading capacity | 25000 kg | Cabin | Left , 2 seats , with sleeper , with air conditioning | |
| Engine | Type | WD615.69 | ||
| Rated Power | 247kW/336HP | |||
| Displacement | 9726ml | |||
| Fuel type | Diesel oil | |||
| Emission standard | Euro 2 | |||
| Max speed | 90(km/h) | Approach/departure angle | 16/35° | |
| Front suspension | 1500mm | Rear suspension | 1300mm | |
| Wheel base | 3625+1350mm | Color and logo | Can according to customer's requests | |
