螺纹四通 | Threaded Cross - Product Details

Business Type:Others

Main Products: STEEL PIPE Flanges pipe fittings

view on mobile

FOB Price:US$ 100.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:Threaded Cross 螺纹四通

Inquire

Product Category:	Construction & Decoration > Hardware	Trademark:
Product Package:		Specifications:
Place of Origin:		Port:	青岛港

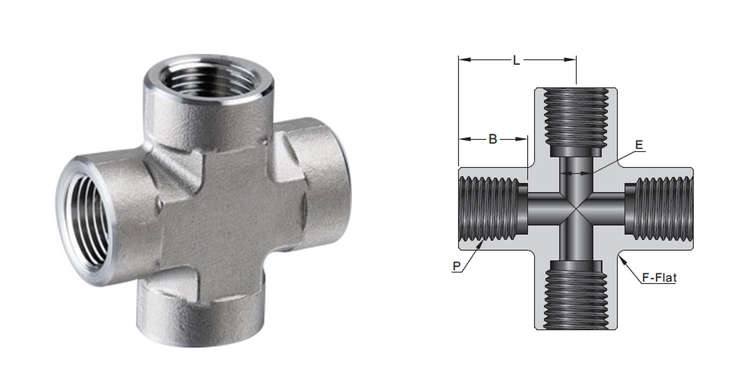

Threaded Cross Specifications：

Size/尺寸	1/8″~4″ (DN6~DN100)
Class/压力等级	2000 LBS, 3000 LBS, 6000 LBS
Type/连接形式	Threads: American National Standard Taper Pipe Threads, NPT(ANSI/ASME B1.20.1-1983), Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination.
Surface Treatment/表面处理	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken, 热浸镀锌，环氧树脂和FBE涂层，电抛光，喷砂，发黑
Materal/材质	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel. 不锈钢、合金钢、双相钢、低温钢、碳钢、镍基合金
Manufacturing process/制造工艺	Cutting, Heat treatment, Forging, Machining, 锯切、热处理、模锻、机加工
Manufacturing Standards/制造标准	ASME 16.11, GB/T4383-2018，BS-3799

Threaded Cross Material Grades:

Stainless Steel/不锈钢	ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L
Duplex & Super Duplex Steel/双相钢	ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel/碳钢	ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel/合金钢	ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Copper Alloy Steel/铜合金	Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy/镍合金	ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
