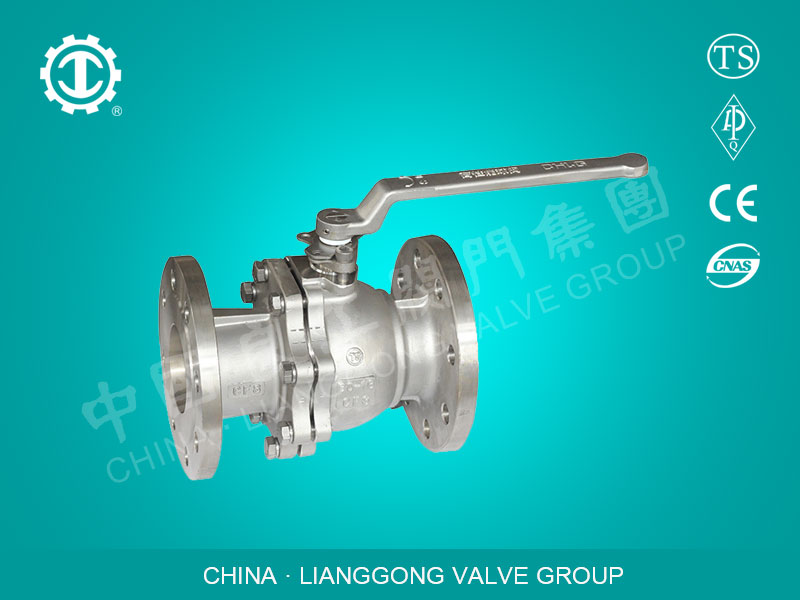

Soft Sealed Floating Ball Valve
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union Others
Keywords:ball valve floating ball valve soft sealed ball valve
| Product Category: | Oil & Gas > Piping and valves | Trademark: | LGV |
| Product Package: | plywood case | Specifications: | DN15-DN300 |
| Place of Origin: | WENZHOU/LISHUI | Port: | SHANGHAI/NINGBO |
product use
Q41F type PN16~PN64 valve for each kind of pipeline Class150~Class1500, PN16~PN64, JIS10K~JIS20K, used to cut off or connect the line of medium, use different materials, can be separately applied to water, steam, oil, liquefied petroleum gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other media.
product characteristics
1. In all kinds of valves, the flow resistance of the ball valve is the smallest. When the full diameter ball valve is opened, the sphere passage, the valve body passageway and the connecting pipe diameter are equal and become a diameter, and the medium can flow almost without loss.
2. The ball valve is rotated 90 degrees can be closed to open, open and close rapidly. Compared with the same gate valve, cut-off valve, small ball valve, light weight, easy to install the pipe
Performance parameters
Model | Q41F-16C | Q41F-16P | |
Q41F-25C | Q41F-25P | ||
Working pressure（MPa） | 1.6~2.5 | ||
Applicable temperature（℃） | ≤180 | ||
Suitable media | Water, steam, oil | Weakly corrosive medium | |
Material | Nitric acids | Carbon steel cast steel | Chrome-nickel stainless steel |
Body, bonnet | Chromium / chrome nickel / chromium nickel molybdenum stainless steel | Chrome-nickel stainless steel | |
Sealing ring | Flexible Graphite Gasket / 316 + Flexible Graphite Gasket | ||
Filler | Teflon | ||
Main connection size
Nominal diameterDN | The main form of connection size | |||||||
L | D | D1 | D2 | B | Z-d | H | W | |
Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P | ||||||||
15 | 130 | 95 | 65 | 45 | 14 | 4-14 | 78 | 140 |
20 | 140 | 105 | 75 | 55 | 14 | 4-14 | 84 | 160 |
25 | 150 | 115 | 85 | 65 | 14 | 4-14 | 95 | 180 |
32 | 165 | 135 | 100 | 78 | 16 | 4-18 | 150 | 250 |
40 | 180 | 145 | 110 | 85 | 16 | 4-18 | 150 | 300 |
50 | 200 | 160 | 125 | 100 | 16 | 4-18 | 170 | 350 |
65 | 220 | 180 | 145 | 120 | 18 | 4-18 | 195 | 350 |
80 | 250 | 195 | 160 | 135 | 20 | 8-18 | 215 | 400 |
100 | 280 | 215 | 180 | 155 | 20 | 8-18 | 250 | 500 |
125 | 320 | 145 | 210 | 185 | 22 | 8-18 | 265 | 600 |
150 | 360 | 280 | 240 | 210 | 24 | 8-23 | 270 | 800 |
200 | 400 | 335 | 295 | 265 | 26 | 12-23 | 330 | 800 |
250 | 530 | 405 | 355 | 320 | 30 | 12-25 | 450 | 1300 |
Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P | ||||||||
15 | 130 | 95 | 65 | 45 | 16 | 4-14 | 103 | 100 |
20 | 140 | 105 | 75 | 55 | 16 | 4-14 | 112 | 160 |
25 | 150 | 115 | 85 | 65 | 16 | 4-14 | 123 | 160 |
32 | 165 | 135 | 100 | 78 | 18 | 4-18 | 150 | 250 |
40 | 180 | 145 | 110 | 85 | 18 | 4-18 | 156 | 250 |
50 | 200 | 160 | 125 | 100 | 20 | 4-18 | 172 | 350 |
65 | 220 | 180 | 145 | 120 | 22 | 8-18 | 197 | 350 |
80 | 250 | 195 | 160 | 135 | 22 | 8-18 | 222 | 450 |
100 | 280 | 230 | 190 | 160 | 24 | 8-23 | 253 | 450 |
125 | 320 | 270 | 220 | 188 | 28 | 8-25 | 275 | 600 |
150 | 360 | 300 | 250 | 218 | 30 | 8-25 | 286 | 800 |
200 | 400 | 360 | 310 | 278 | 34 | 12-25 | 340 | 1200 |
250 | 530 | 425 | 370 | 332 | 36 | 12-30 | 470 | 1400 |
Structure picture
| Contact Name: | Miss olivia hu | Contact Email: | ol****a@cnlg-valve.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 138***302 |
| Contact Tel: | Contact Fax: | ||
| Address: | 721.JIANGNAN ROAD,NANMINGSHAN SUBDISTRICT ,LIANDU DISTRICT LISHUI CITY ,ZHEJIANG PROVINCE. | Website: | https://www.cnlg-valve.com |
China Lianggong Valve Group was founded in 1989. We design, develop, manufacture, test and sell industry valves, including cast and forged steel/stainless ball valves, gate valves,
globe valves, check valves, butterfly valves, elbows, fittings.
Lianggong's registration capital is 258 million CNY, with 9 sub-companies that are fully controlled. Valve's sizes can be DN10-5000 and 1/2" ~ 80", pressure from 0.25 to 80.0 MPa
and 150 lb to 4500 lb, temperature ranges from -196℃ to 1350℃. It is widely used in power station, nuclear power, petroleum, chemical industry, natural gas, military industry,
municipal administration, metallurgy, construction, pharmacy, paper making, coal mine, cement, pollution discharge, environmental protection, energy saving and other industries.
Our products are reliable in quality and stable in performance and are highly praised by customers.
Production Plants & Equipments
- Longwan Industry Zone (Wenzhou)
- Lishui Industry Zone (Wenzhou)
- Area 199800㎡
- 400+ CNC/NC lathes
- The annual total value of out-put 358 million USD(1.5 Billion CNY)
Employee Info
- Over 1200 employees overall
- 15 senior engineers
- 55 engineers
- 10 QC engineers
- 8 after-service engineers
Major Approvals
- API 6D, API 607, API 609, API 600,
- ISO 9001, ISO14001
- OHSAS18001
- CE
Tests & Inspections
- RT, UT, MT, PT
- Valve cryogenic test & high-temperature test
- O-ring AED Test
- Ball valve bending test in simulated pipeline
- Fugitive Emission Test
R & D
- AutoCAD, Solidworks, FEA (Finite Element Analysis)
- 37 patents (5 for innovation, 32 for utility models)
==================================================================
