Insulated Glass

Construction & Decoration Building Structural Material

FOB Price:US$ 4.00 / Square Meter(s)

MOQ:1000 Square Meter(s)

Payment Method : T/T Western Union

Keywords:insulated glass low e insulated glass double glazing glass triple glazing glass insulated double wall glass double glazing insulated glass tempered insulating glass dual seal insulated glass flat insulated glass clear glass window insulated

Add to Favorites

Product Category: Construction & Decoration > Building Structural Material Trademark: Hongteli
Product Package: wooden crates, paper cardboard Specifications: 300*300, 1880*2660
Place of Origin: China Port: Qingdao
Product Introduction

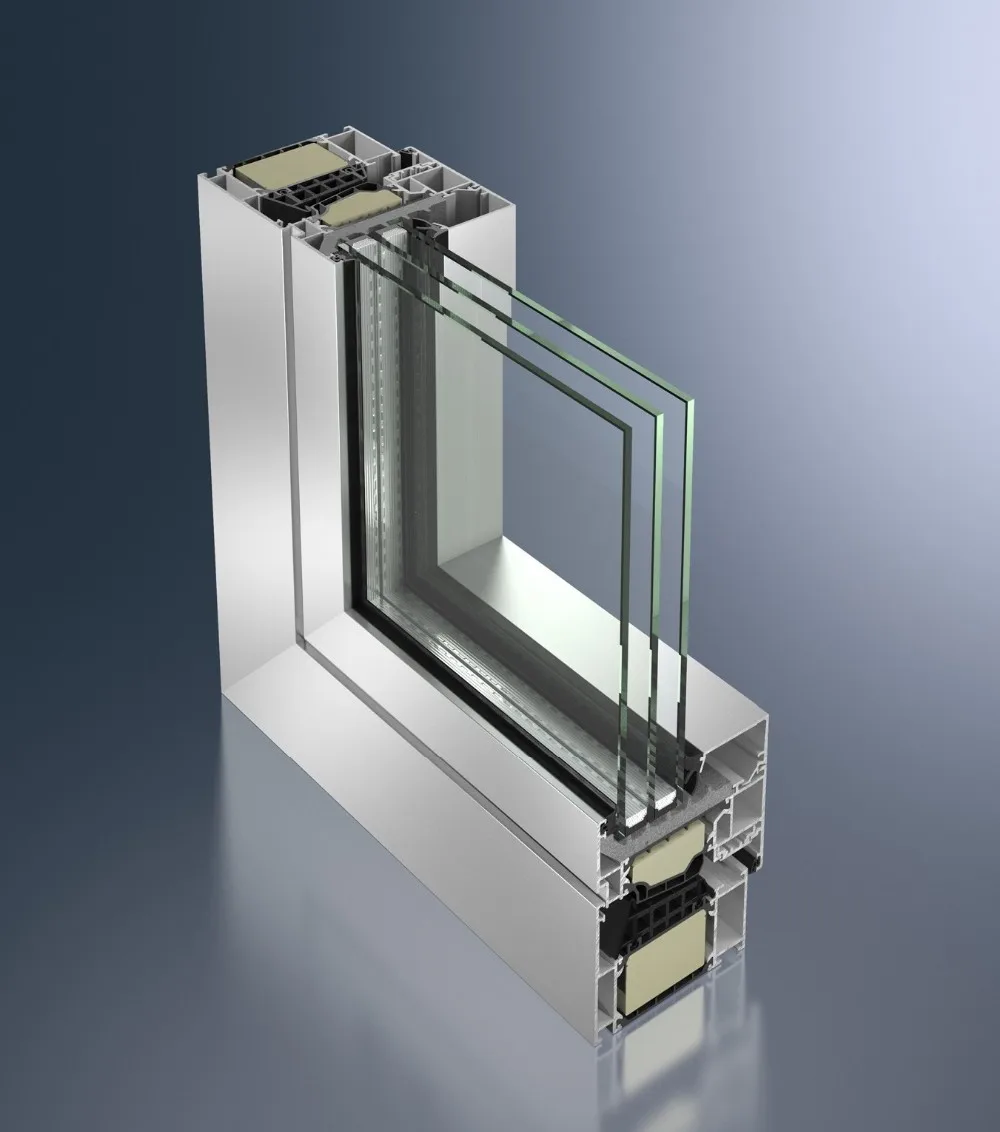

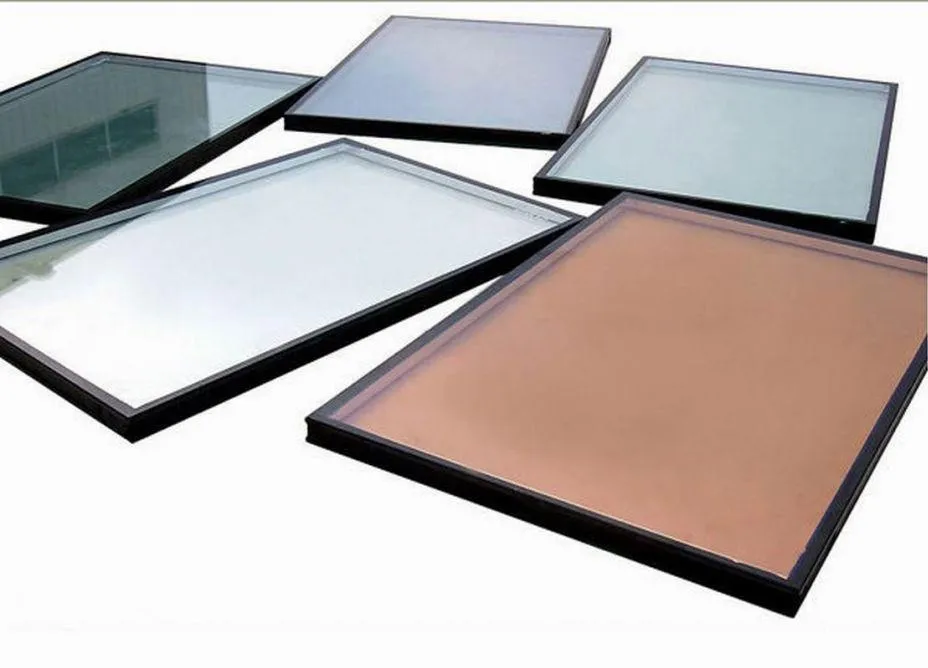

low-e double insulated glass for window

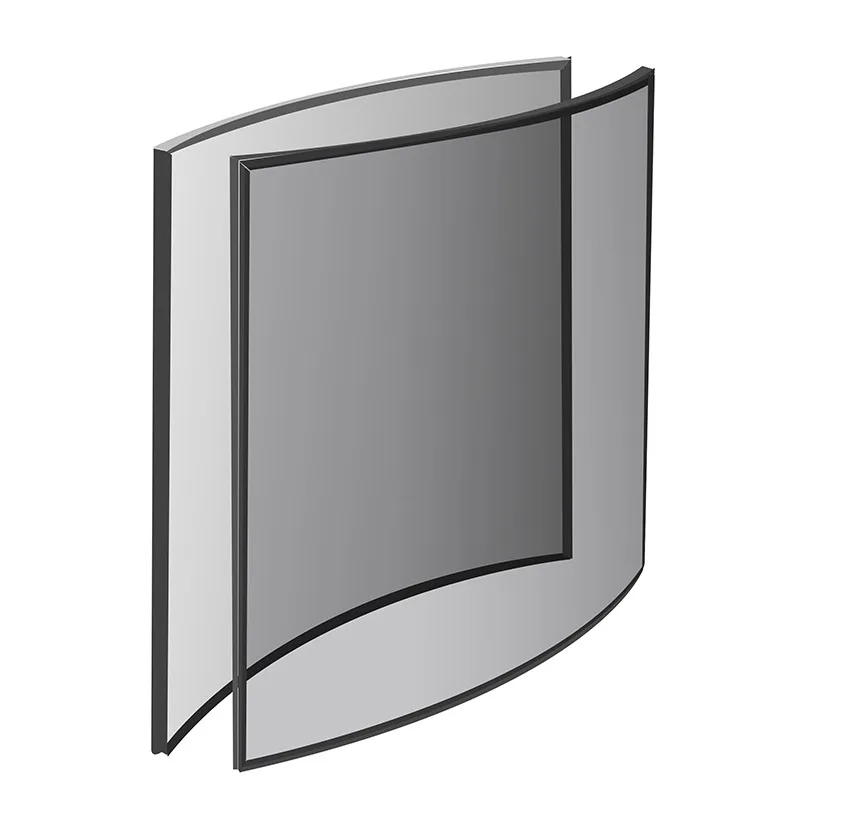

Insulated Glass consists of two or more than two pieces of glass. The different pieces of glass are isolated through aluminum tubes whose insides are filled with desiccant air or argon, sealed with polysulphide sealant to form glass with dry space.

Advantages:

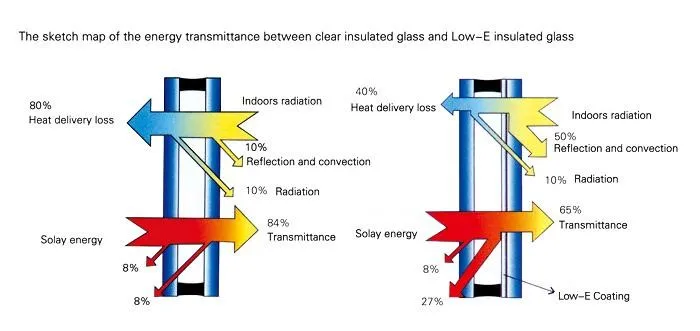

1. Energy-saving, better thermal or cold insulation performance;

2. Safety, anti-windy performance is 1.5 times of normal monolithic glass;

3. Sound insulation;

4. Light weight.

Product Parameters
Item
Tempered/ reflective/ laminated/ low-e double or triple insulated glass etc.
Glass Thickness
4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm etc.
Cover Thickness
6A,9A,12A,15A,20A,25A
Desiccant Type
Air or Argon
U Value (W/M2.K)
Less than 1.0 (according to the different glass and thickness)
Size
Min 300 x 300mm    Max 2440 x 4200mm
Color

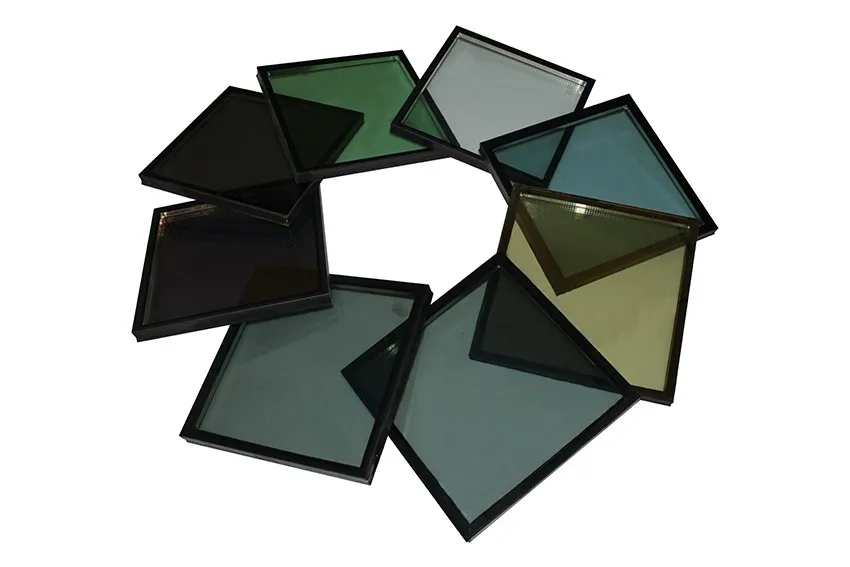

Clear, Europe gray, green, bronze or by customized
Sealant
First seal with imported Butyl rubber, second with structural silicone sealant
Application
Window & Door of building, vehicles, ship, train, freezers, Curtain walls etc.
Production Capacity
5,000,000m2/year
Certification
CE, CCC, ISO, GB/T11944-2002, AASTME 2190-02
Warranty
15~20 years

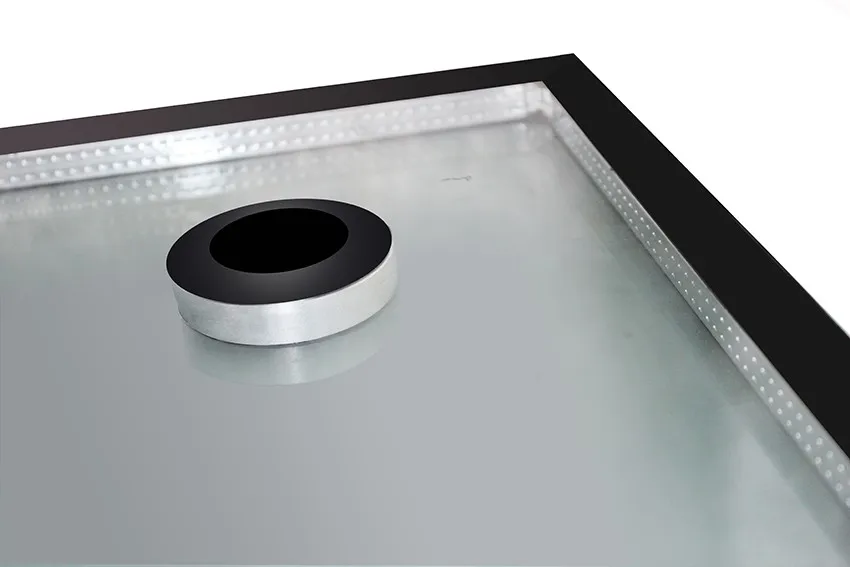

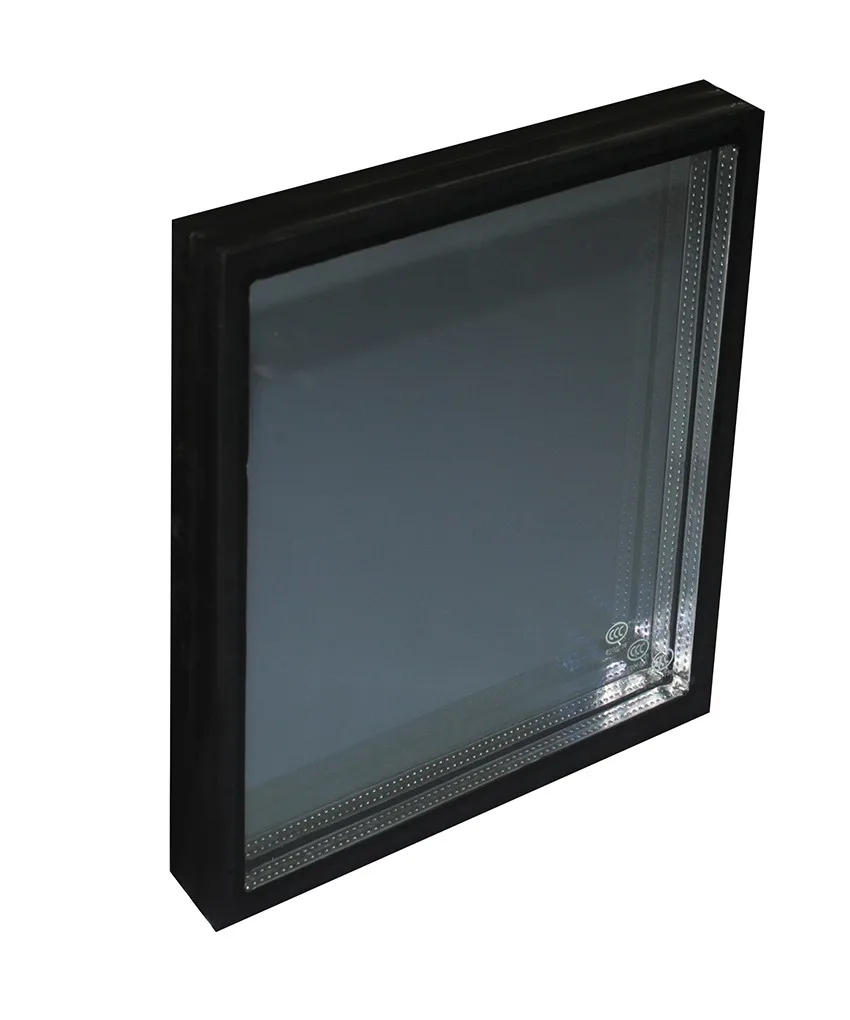

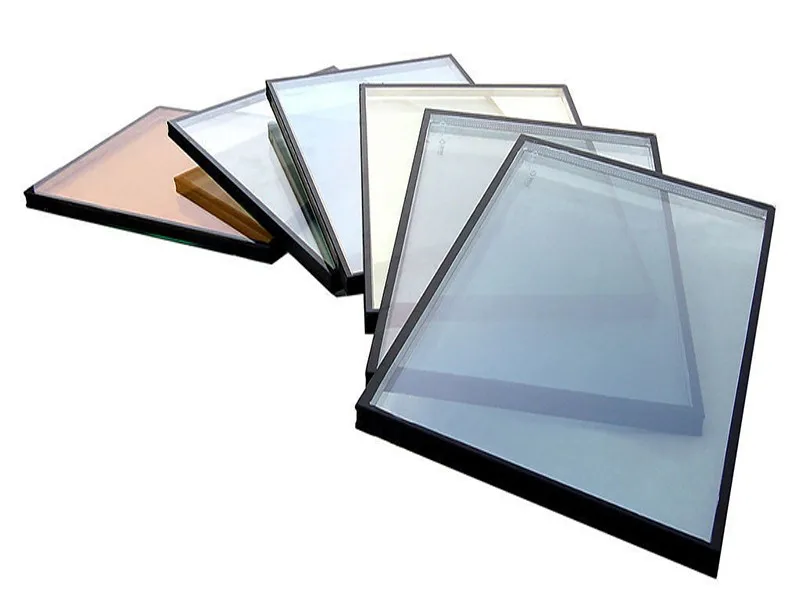

Product Details Show
Product Processing

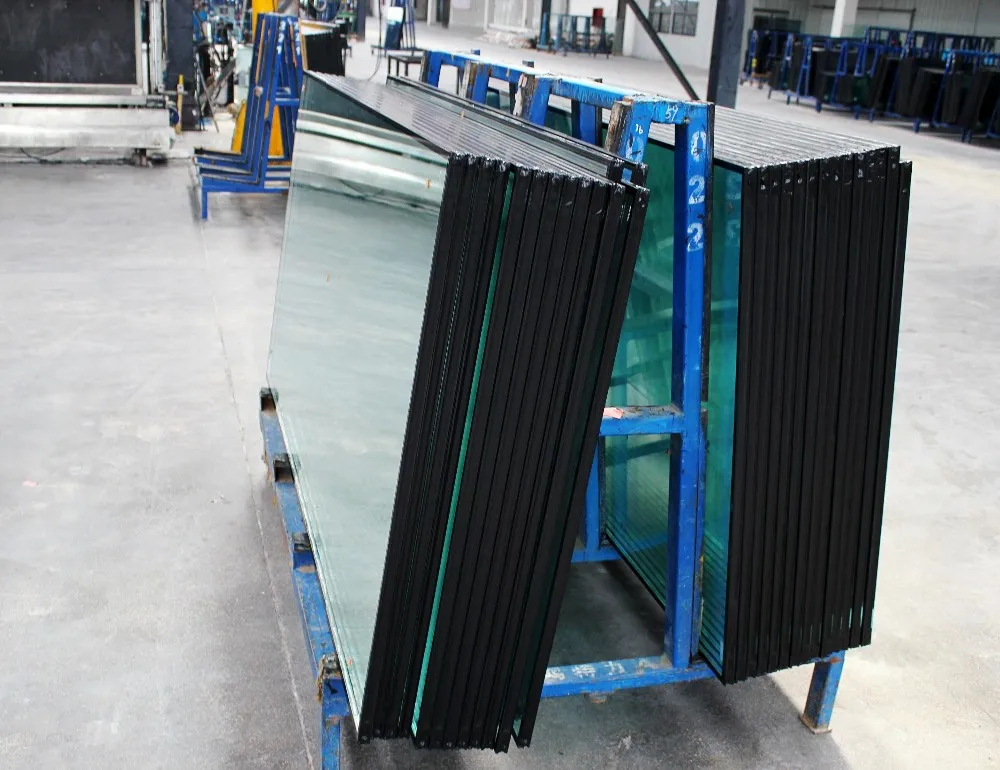

Product Packing
Why Choose Us

About us

The company professional to do kinds of building glass.

Equipment & technology

Superior production line and QC procedure to ensure the quality of each order.

Service

Full tracking system and the complete after-sales services.

Highly Recommend
Contact Me Now


Contact Name: Mrs Connie Sun Contact Email: co****e@htlglass.com
Contact Job Title: Export Manager Contact Mob: 138***953
Contact Tel: 86 535 3039181 Contact Fax: 86 535 3301333
Address: No.7 Chongqing Road, Development Zone, Haiyang City, Shandong, China Website: www.htlglass.com

Yantai Hongteli Glass Co., Ltd. is established in 2008, located in Haiyang Developing Zone, with a coverage area 30,000m2 and 300 employees, total investment around 58 million. The glass products are exported to the world wide, facilitating the growth and profit for our customers and partners. Hongteli has been committed to provide the complete solutions of developing, producing, service for the safety and energy saving glass, eg. Low-E glass, Insulated glass, Laminated glass etc., as well as customized upscale aluminum alloy/PVC doors and windows. Hongteli has superior complete auto-cutting machine from Italy, double-sided peeling and edge grinding machine, vertical auto-positioning drilling machine, forced?convection toughening furnace, and more than 20 production lines for such processes as cutting, grinding, drilling, washing, tempering, laminating and insulating etc., production capacity around 5,000,000m2 per year. Now Hongteli already been one of the most advantageous glass manufactures in China. Hongteli is a ISO and 3C certified glass manufacture. To ensure the quality of each piece of glass, we introduced the advanced test equipment eg. H.H tester, weather cycling tester, UV detector, dew point instrument, and lesk tester, etc., meantime, we also set up a full tracking and inspection system and the complete after-sales service system. Credibility, High quality and Service innovation, Yantai Hongteli Glass Co. Ltd. endeavor to create a win-win business cooperation with YOU!
