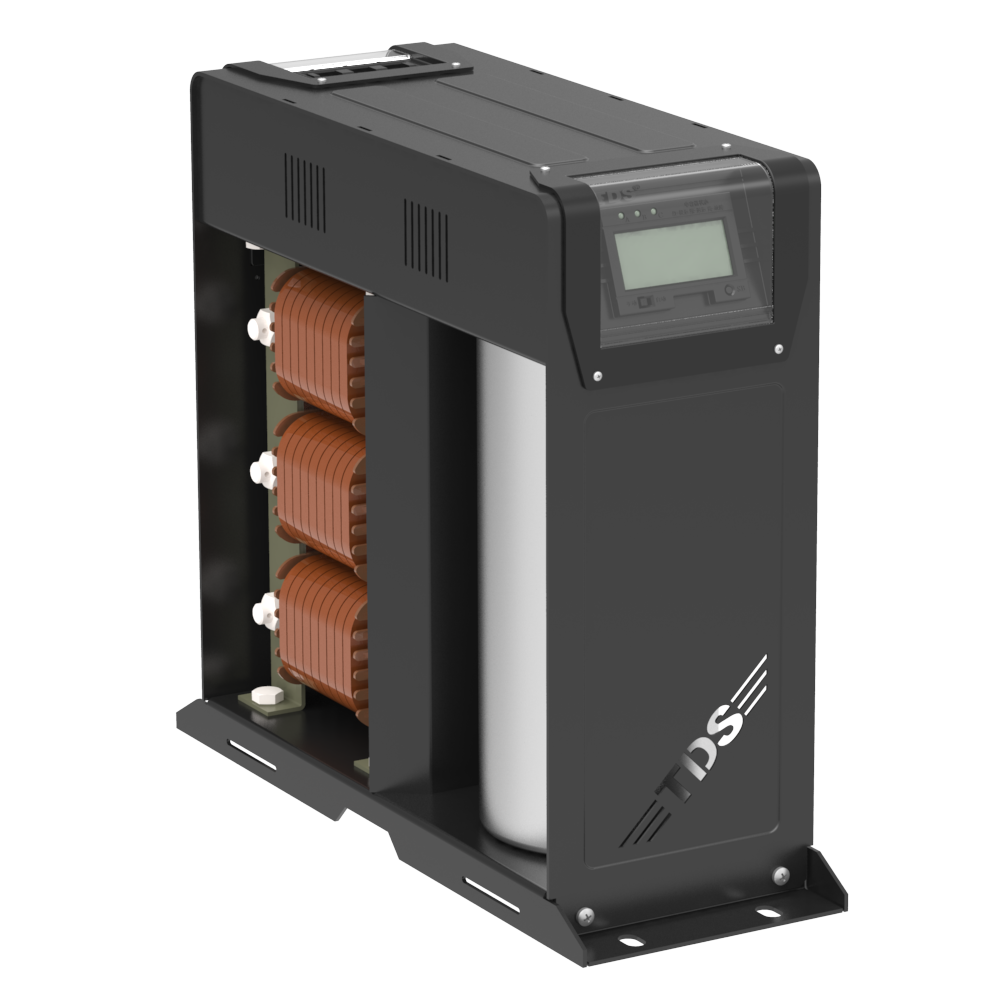

Harmonic-suppression Low Voltage Reactive Power Compensation Device/Intelligent Capacitor

Electrical & Power Energy Electrical Controls

FOB Price:US$ 370.00 / Piece(s)

MOQ:3 Piece(s)

Payment Method : L/C T/T

Keywords:intelligent capacitor Capacitor intelligent equipment reactive power harmonic

Inquire


Add to Favorites

Product Category: Electrical & Power Energy > Electrical Controls Trademark: TDS
Product Package: Specifications:
Place of Origin: China Port: Shanghai

Main Product Features

(1) The product structure is simple and reasonable, in which the capacitor and reactor in series are exposed, and the capacitor is in the shape of aluminum cylinder; with the fan adopted above the reactor with the highest temperature rise to dissipate heat, the temperature is mild and balanced, therefore, the product has long service life.

(2) The wiring screw part of the product is protected by a transparent cover so as to improve its safe operation level.

(3) With such functions as zero crossing switching power capacitor and measurement, protection, signal, on-line connection and others, the product is highly intelligent.

(4) There are a series of protective functions, including current quick switch-off, over current, over voltage, under voltage, attenuation, three-phase current imbalance and over temperature, therefore, its operation is safe, stable and reliable.

(5) Multiple products can automatically form a low voltage reactive power automatic compensation device to work, or constitute a low voltage reactive power automatic compensation device with an external controller to work under the instruction of an external controller.

(6) LCD, LED indicator and mechanical keys are adopted for man-machine interaction of the product, which is reliable and convenient.

Main Product Parameters

(1) Power supply voltage: ～230V/400V±15%.

                       THDu ≤7%;

                                              THDi ≤15%;

(2) Capacitor banks: 1～3 groups (Three phase);

                                             1～2 groups (Split phase);

                                              1 three phase + 1 split phase.

(3) Maximum capacity: ≤ 60kvar(Three phase);

                                                  ≤ 40kvar (Split phase).

     (4) Reactance rate: 7%, 14%.

(5) Overall dimension and mounting size of the product depend on the number of capacitor banks and their total capacity.
