Upper Rollers For Crawler Crane
Manufacturing & Processing Machinery Machinery Accessories & Services
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union Money Gram
Keywords:crawler crane top roller crawler crane upper roller crawler crane carrie roller crawler crane parts undercarriage parts
| Product Category: | Manufacturing & Processing Machinery > Machinery Accessories & Services | Trademark: | VM |
| Product Package: | Pallet | Specifications: | |
| Place of Origin: | Yantai, China | Port: | Qingdao |

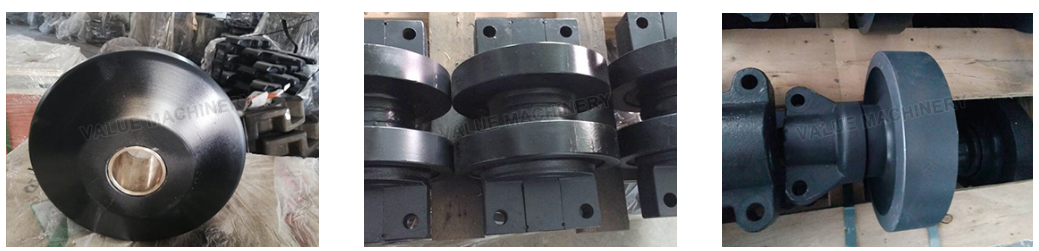

Top Rollers For Kobelco/Hitachi/Sumitomo/Manitowoc/Liebherr/Terex Demag/Terex American/SANY/Zoomlion/Kobelco/IHI Crawler Cranes
1. Introduction
Product Name | Crawler Crane Track Roller / Bottom Roller / Lower Roller |
Material | 40Mn2 |
Technique | Forging |
Heat Treatment | Overall hardening and tempering, surface hardening |
Warranty | 2500 working hours |
2. Top Rollers for Crawler Crane, from 30 ton to 1350ton, models as follows,
Hitachi | KH70, KH100, KH100-1, KH100D, KH125, KH125-2, KH125-3, KH150, KH150-2, KH150-3, KH180, KH180-2, KH180-3, KH230, KH230-3, KH250HD, KH250-3, KH300, KH300-2, KH300-3, KH500-2, KH500-3, KH700, KH700-1, KH700-2, KH850-3, KH1000, U106A, TH55, TH55ED, CX300, CX350, CX400, CX500, CX500-2, CX550, CX650, CX700, CX900, CX900HD, CX1000, CX1100, PD7, |
Sumitomo | SC350, SC400, SC500, SC500-2, SC500-3, SC550-2, SC550D-2, SC650, SC650-2, SC650DD-2, SC650-3, SC700, SC700DD, SC700-2, SC800, SC800HD, SC800-2, SC900-2, SC1000, SC1000HD, SC1000-2, SC1500, SC1500HD, SC1500-2, SC2000, SC2500, LS78RH, LS78RM, LS78RH5, LS78RHD5, LS98, LS108RM, LS108RH3, LS108RH5, LS110C, LS118RH3, LS118RH5, LS118RH, LS118RM, LS120RH5, LS138H, LS138RH5, LS138RHD5, LS208H, LS218H, LS218RH5, LS238RH2, LS238RH3, LS238RH5, LS248RH2, LS248RH5, LS368RH5, LS458HD, LS468HD, LS518, LS528, LS528-S, LS568HD, LS578HD, |
Hitachi Sumitomo | SCX300, SCX300-C, SCX400, SCX400T, SCX500, SCX550, SCX550-2, SCX550C, SCX550E, SCX700, SCX700-C, SCX700-2, SCX800, SCX800-2, SCX800HD, SCX800HD-2, SCX900, SCX900-2, SCX1000, SCX1000A-3, SCX1200, SCX1200-2, SCX1500, SCX1500-2, SCX1500A-3, SCX2000, |
Samsung Hiatchi | CX500C, CX520P, CX800, CX800C etc. |
Kobelco | BM500, BM600, BM650, BM700, BM700HD, BM700HD-2, BM750, BM800, BM800HD, BM900, BM900HD, BM1000, BM1200, BME800, BME800HD, BMS800, BMS900, BMS1000, CK800, CK850, CK850-II, CK850-III, CK850G, CK850-2F, CK900, CK1000, CK1000-II, CK1000-III, CK1000G, CK1100, CK1100G, CK1600, CK1600-II, CK2000, CK2000-II, CK2500, CK2500-II, CK2750, CK2750G, CKS600, CKS800, CKS900, CKS1100, CKS1350, CKS2500, CKE600, CKE700, CKE800, CKE800G, CKE800G-2. CKE800-1F, CKE850, CKE900, CKE1000, CKE1100, CKE1200, CKE1350, CKE1350-1F, CKE1800, CKE1800-1F, CKE2500, CKE2500-II, CKE2500G, CKL1000I, CKL1500, CKL2600, P&H60P, P&H70P, P&H75P, P&H85P-60C, P&H100P, P&H315, P&H320, P&H325, P&H330, P&H335, P&H335AS, P&H345, P&H440, P&H550A, P&H550-1, P&H550-2, P&H550S, P&H550.S2, 5035, 5045, 5055, 5080, 5100, 5170, 7035, 7045, 7050, 7055, 7055-1, |
IHI | CH350, CH400, CH500, CH800, CCH300, CCH300T, CCH350, CCH350-D3, CCH400, CCH500, CCH500-2, CCH500-3, CCH500-3 II, CCH500-T, CCH500EX, CCH550, CCH650, CCH700, CCH700-3II, CCH800, CCH800-2, CCH900, CCH1000, CCH1000-5, CCH1200, CCH1200-5, CCH1500, CCH1500E, CCH1500-3, CCH1800, CCH2000, CCH2000-5, CCH2500, CCH2800, DCH650, DCH700, DCH800, DCH900, DCH1000, DCH1200, K300, K400A, K400B, K1000, |
Nippon Sharyo | D308, D308SA, D408, D508, DH300, DH300-3, DH308, DH350, DH400, DH400 III, DH408, DH500, DH500-5, DH500-6, DH508, DH508-105M, DH550-5, DH600, DH608, DH608-120M, DH650-5, DH658, DH700, DH758, DH900, DHP70, DHP80, |
American | American 500 Series, American 5299, American 700 Series, American 7250, |
Manitowoc | M50, M65, M80, M85, M222, M222EX, M250, M777, M888, M999, M999C, M2250, M3900, M3900W, M4000, M4100, M4100W, M4100S, M4500, M4600,M4600S, |
Terex Demag | CC280-1, CC400, CC1100, CC1200, CC1500, CC1800, CC2000, CC2000-1, CC2200, CC2400, CC2500, CC2600, CC2800, CC4000, CC6800, CC8800, etc |
Terex/American | HC50, HC60, HC80, HC110, HC165, HC230, HC275 |
Link-Belt | LS78, LS98, LS108BS, LS108B, LS108BJ, LS108BSS, LS118, LS118RH-II, LS138H, LS138HII, LS138HSL, 138HSL-C5, LS208H, LS218H, LS218HII, LS218HSL, LS218HSL-C5, LS228HSL, LS238H, LS238HSL, LS248H, LS248HII, LS248HSL, LS248H5, LS278H, LS298HSL, LS308H, LS318, LS338, LS348, |
Liebherr | LR1100, LR1200, LR1250, LR1280, LR1300, LR1350, LR1350-1, LR1400, |
Ruston-Bucyrus | RB30, RB38, RB40, etc. |
Lima | 700HC, 770HC, 2400, etc. |
Kinki Ishiko | M50B, 1820 |
NCK | HC80, C41B, AJAXC60, etc. |
Sany | SCC500B, SCC500C, SCC500D, SCC500E, SCC550C, SCC600C, SCC750C, SCC800C, SCC1000C, SCC1000D, SCC1250, SCC1500CC, SCC1500D, SCC1800, SCC2500C, SCC2600A, SCC3000WE, SCC4000E, SCC5000WE, SCC6500E, SCC7500, SCC8100, SCC8200, SCC8300, SCC10000, SCC16000, |
Fuwa | CC40, QUY35, QUY50, QUY50A, QUY50C, QUY50D, QUY50S, QUY55, QUY70, QUY70A, QUY80, QUY80A, QUY80B, QUY90, QUY100, QUY100A, QUY120, QUY130, QUY130A, QUY150, QUY150A, QUY150C, QUY160C, QUY250, QUY250-1, QUY320, QUY400, QUY400A, QUY500, QUY650, QUY750, QUY1250, FZX36, FCC55, FCC80A, FCC80B, FCC100C,FWX55, FWX75, FWX85, FWX135, |
XCMG | QUY50, QUY50A, QUY50-II, QUY55, QUY70, QUY75, QUY80, QUY80A, QUY85, QUY100, QUY150, QUY250, QUY260, QUY280, QUY300, QUY350, QUY400, QUY450, QUY500W, QUY650, QUY700, QUY750, QUY1000, XGC55, XGC75, XGC85, XGC100, XGC130, XGC130-1, XGC150, XGC180, XGC200, XGC260, XGC260A, XGC350, XGC500, XGC650, XGC15000, XGC16000, XGC28000, |
Zoomlion | QUY50,QUY70,QUY80, QUY100, QUY130, QUY180, QUY260, QUY320, QUY350, QUY400, QUY450, QUY500,QUY500W, QUY550, QUY600, 650 Ton QUY650, QUY800, QUY1000, ZTM300, ZTM500,ZCC550, ZCC550H, ZCC750H, ZCC750, ZCC800, ZCC800H, ZCC850, ZCC1100H, ZCC1300CL, ZCC1800HWG , |
Yutong | YTQU55B, YEQU75B, YTQU100B, etc. |
Daifeng | QUY25 |
3. Quality Introduction:
1. Roller Body: Material is 40Mn2 ---hard wearing, so, that can extend the roller's service life.
2. Bushing: 100% fine cooper Bushing, instead of duplex metal(Iron and Cooper). The thickness of bushing is 6mm-10mm.
3. Pin: The material is 42Cr
4. Floating seals: the size of Floating seals must 100% match the roller. If not, the oil will spilling.
5. The most important process is Hardening and Tempering if the rollers are not undereardening and tempering, the Mechanical Properties, Yield Strength and Tensile Strength will not be good, the roller will be slip easily.

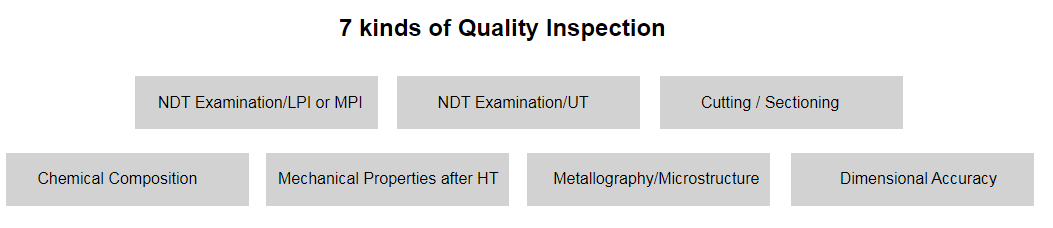

4. Inspection

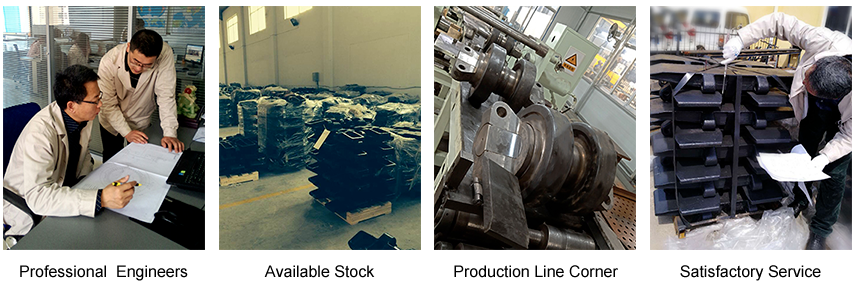

4. Why Choose Us
5. Contact Us
