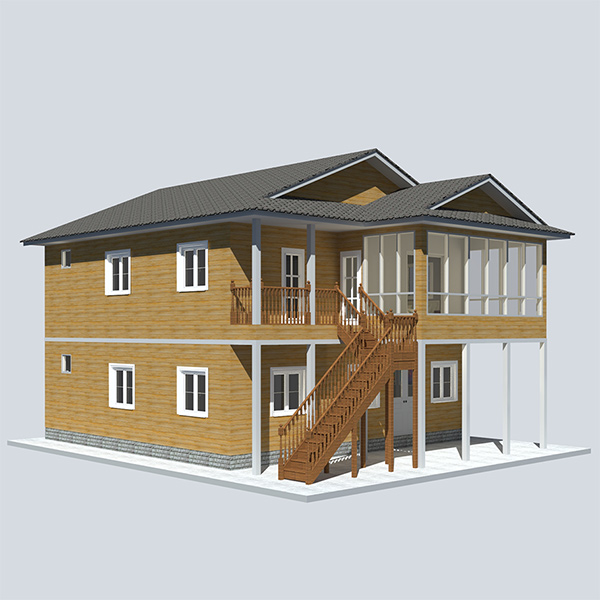

Luxury Villa - (Qb28) Beautiful High Quality Accommodation Plan Sales In Saudi Arabia
Construction & Decoration Building Structural Material
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:flat pack new home flat pack modern home flat pack popular home flat pack medium home flat pack luxury home flat pack affordable home flat pack low cost home flat pack cheap home flat pack beautiful home flat pack camp home
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | Heya |
| Product Package: | Flat packaging | Specifications: | 20ft, 40ft |
| Place of Origin: | Shangdong, China (Mainland) | Port: | qingdao |
| BREAK DOWN QUOTATION SHEET | ||||
| No. | NAME | DESCRIPTION | UNIT | THEORY QTY |
| LGS Structure | ||||
| 1 | steel structure | ㎡ | 243 | |
| 2 | fittings | set | 243 | |
| Wall System | ||||
| 1 | External wall OSB board | 1220*2440*9mm | ㎡ | 252.1 |
| 2 | External wall unidirectional breath paper | ㎡ | 308.7 | |
| 3 | External wall wooden support | 30*40*3000mm | m | 756.3 |
| 4 | External wall metal carved board | 381*3800*16mm +381*4500*16mm | ㎡ | 252.1 |
| 5 | Internal wall OSB board | 1220*2440*9mm | ㎡ | 402.6 |
| 6 | Internal wall gypsum board | 1200*2400*9mm | ㎡ | 402.6 |
| 7 | Wet district fiber cement board | 1220*2440*10mm | ㎡ | 116.85 |
| Insulation System | ||||
| 1 | Glasswool Insulation | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 385.775 |
| 2 | Glasswool insulation(under roof) | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 165 |
| 3 | External wall XPS board | 1200*600*40mm | ㎡ | 252.1 |
| Floor System | ||||
| 1 | Floor surface OSB | 1220*2440*18mm | ㎡ | 110 |
| 2 | Floor self-paste waterproof coil | T1.5mm，-15℃，20㎡/roll | ㎡ | 110 |
| 3 | Floor concrete cushion | C25 concrete | ㎡ | 110 |
| Roof System | ||||
| 1 | Roof OSB board | 1220*2440*12mm | ㎡ | 165 |
| 2 | self-paste waterproof coil | T1.5mm，-15℃，20㎡/roll | ㎡ | 165 |
| 3 | Roof tile | asphalt tile | ㎡ | 165 |
| 4 | Roof ridge tile | asphalt tile | m | 27.9 |
| 5 | Roof eaves pvc molding | 6m/pc | m | 63.5 |
| 6 | PVC closing strip | 4m/pc | m | 63.5 |
| 7 | Metal carved board under roof eaves | 381*3800*16mm | ㎡ | 38.1 |
| Door & Window | ||||
| 1 | Alumunium window | ㎡ | 56.6 | |
| 2 | Interior door | ㎡ | 9.6 | |
| 3 | Accessories for door sill/windowsill | 1220*2440*10mm | m | 172 |
| Water&Electric System | ||||
| 1 | Water Pipes | ㎡ | 243 | |
| 2 | Electric system | Include weak current,exclude socket/switch/light,etc | ㎡ | 243 |
| Decoration Accessories System | ㎡ | 243 | ||
| Hardware Accessories System | ㎡ | 243 | ||
| Contact Name: | Mr William Liu | Contact Email: | ad****n@chinaheya.com |
| Contact Job Title: | CEO & Director | Contact Mob: | 156***657 |
| Contact Tel: | +86-536-8233282 | Contact Fax: | +86-536-8233282 |
| Address: | Weicheng?District,Weifang?City,Shandong?Province,P.R.China | Website: | https://www.prefabhousesupplier.com/ |
We, China Heya group, is the solution provider with more experience, design, manufacture and install a range of modular and prefabricated building systems, mainly delivering temporary or permanent spaces solution for the mining and energy industries, government, education, military, disaster relief and construction. Our Service Solution: ? Dormitory Units ? School Units ? Hospital Units ? Office Units ? Canteen Units ? Toilet Units ? Warehouses more other temporary construction projects,etc. Our Goal & Vision to provide 0 risk and good quality of Prefabricated Products solution produced delivered to clients in competitive price and service. We always look forward to adopt latest technology and methods for increasing efficiency,and reducing cost.
