Product Description

TheCN5050A-F thermalpower generator isa multi-functionalstove usedinareaslackingpower supply.Itcanbeusedtoboilwater and cook while generating and storing electricity in the built-in battery module, thereby solving the shortage of power supply for small electronic devices and lighting problems. At the same time, it can alsorunthe15-inchLCDTV, whichwillimprovethequalityoflifeof people in the region lacking power supply, enrich people's amateur culturallife,andbringlighttothelongnight.

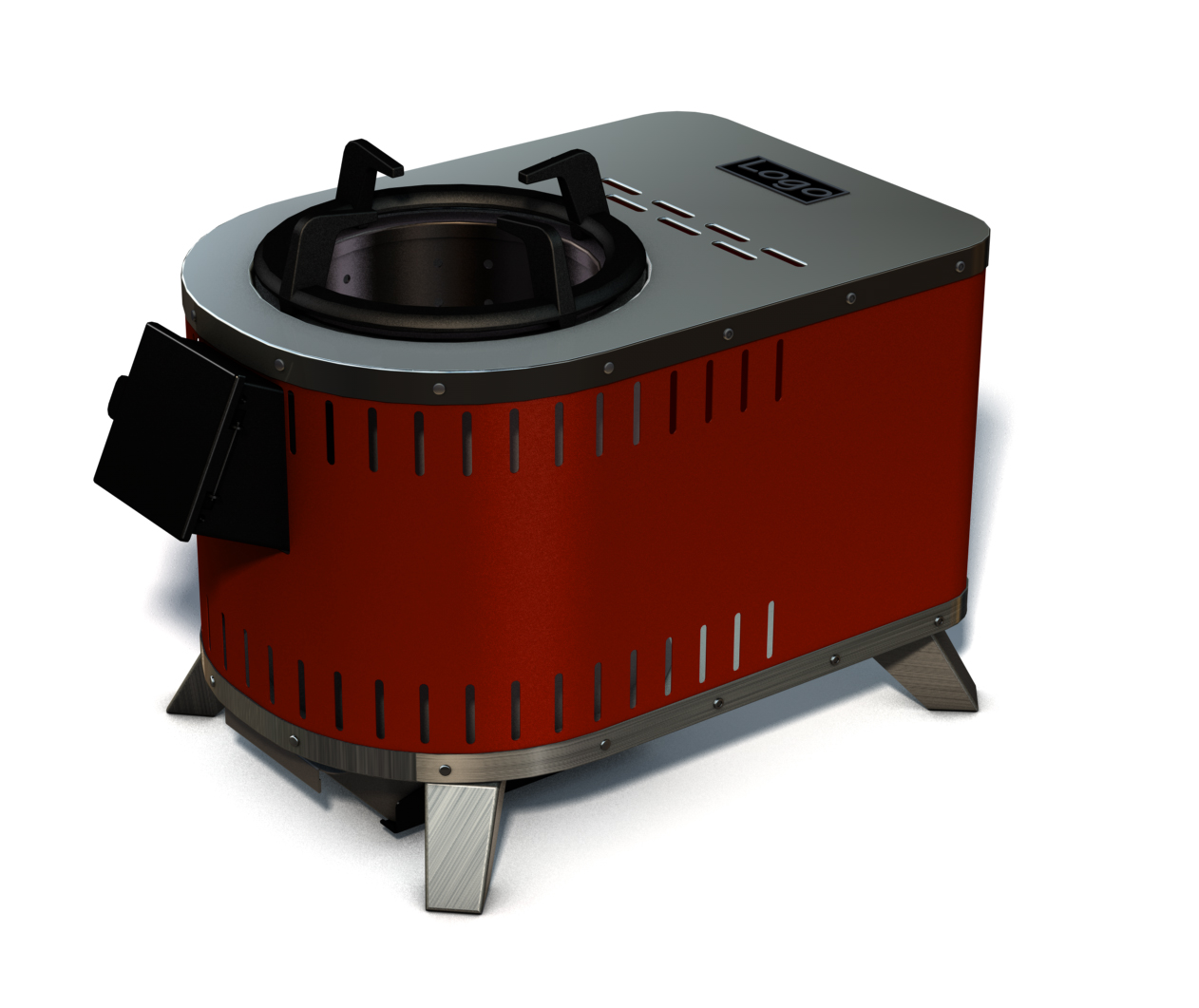

Product Show

                                                  Fifth Generation Products

Sixth Generation Products

Product Function & Methodof Use

In order to ensure good use effect,please strictly follow the following steps when using:

1) Please place the stove horizontally on the ground during use, make sure that the ground is flat and the in stallation is stable! Open the dust cover of the water inlet on the upper part of the stove body,and then use tool such as a kettle to pour cold water intothe water tank. To ensure good power generation efficiency, be sure to fill the water tank until water starts to overflow at the side of the stovebody,whichproveswatertankisfull.

2) Please firstly turn on the Master Switch, the Output Indicator will light up and display in green color, and the Battery Level Indicator also will light up and will display in the color (three different colors of blue, green and red) according to the remaining capacity of the battery. Turn on the Fan & Water Pump Switch for assisting combustion. According to the combustion calorific value andburning speed of different fuels,the heatin the chamber starts to be converted into about 5V electricity through power generation module in about 5 minutes, the Charging Indicator will light up and show red color, indicating that the electricity is generated and stored into battery.

3) The amount of electricity generated by the thermal power generatorisrelatedtothefollowingfactors:

A) The calorific value of the fuel. The fuel can be various solid fuelssuchascoal,firewood and wood pellet etc.The greater the calorific value of the fuel, the greater the power will be generated,and vice versa.

B) The temperature of the cooling water in the water tank. As the fuel burns,temperature in the chamber will rise quickly,and the temperature of the cooling water in the cooling water tank will also slowly increase. About 1 hour after the fuel burns, the temperature of the cooling water will in crease by about 40℃. In order to ensure the best power generation efficiency during use, when the fire in the chamber is burning vigorously for about 60minutes, please open the plug of water outlet and let the heated water out, and in the process of draining heated water,please add cold water until the water becomes cold and overflows again!

Please pay attention to ensure that the water level is always above the water pump when using(water pump should always soak in the water when using). DO NOTLET THE WATER PUMP RUN WITHOUT WATER!! So as not to cause equipment damage!!

4) When night comes, the stove is no longer burning fuel, turn on the Output Switch on the battery controller module, the Output Indicator will light up in green color (do not need to turn on the Fan & Water Pump Switch for saving energy when no fire burning), connect the corresponding electrical device or lighting bulbs to the output port, it starts to steadily provide charging or lighting, bringing light to the long night of people in regions lacking power supply!

When there is fuel burning in the stove chamber, you can also connect bulbs,mobile phones or other electrical device through the power output port, but at this time, you must turn on the Fan & WaterPump Switch to avoid burning out the power generator.

5) Be sure to turn off the Output Switch after the power supply is completed,the Output Indicatorwillgoesout.
